Heater Core: Service and Repair

- Drain coolant engine coolant.

- Remove Instrument Panel, Service and Repair

- Remove Air Distribution Assembly.

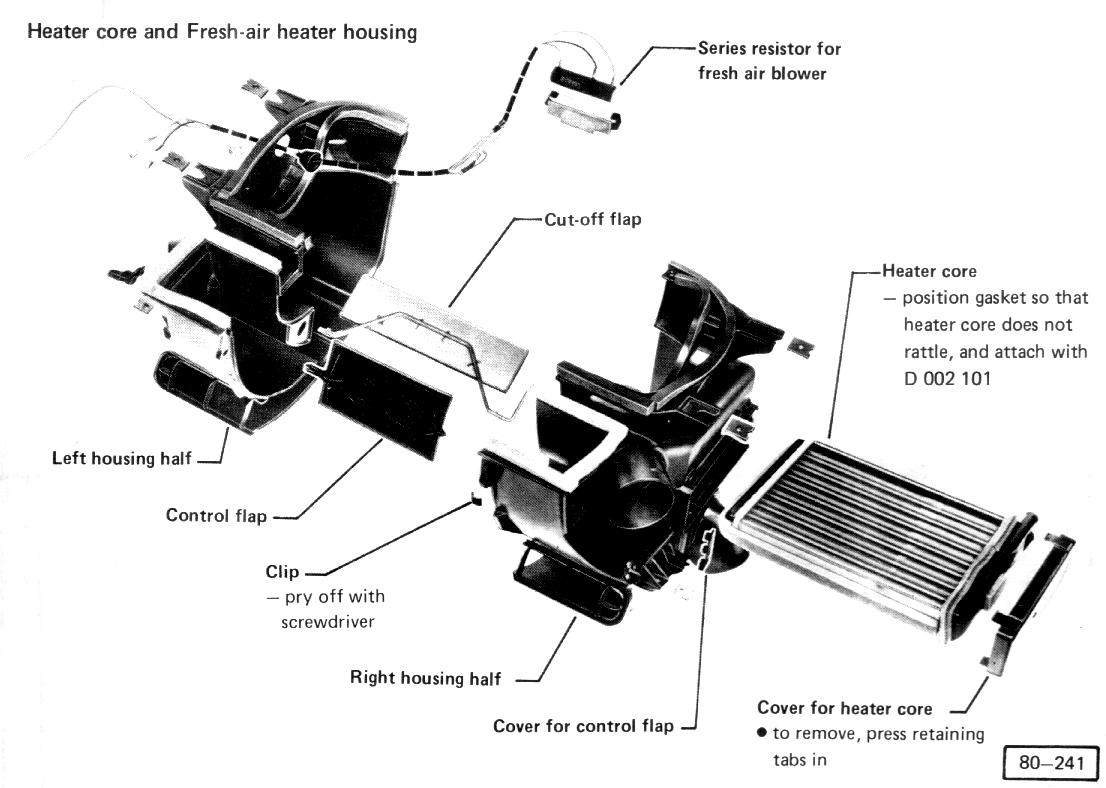

- Disassemble Air Distribution Assembly to remove heater core.

- Reverse procedure to install.

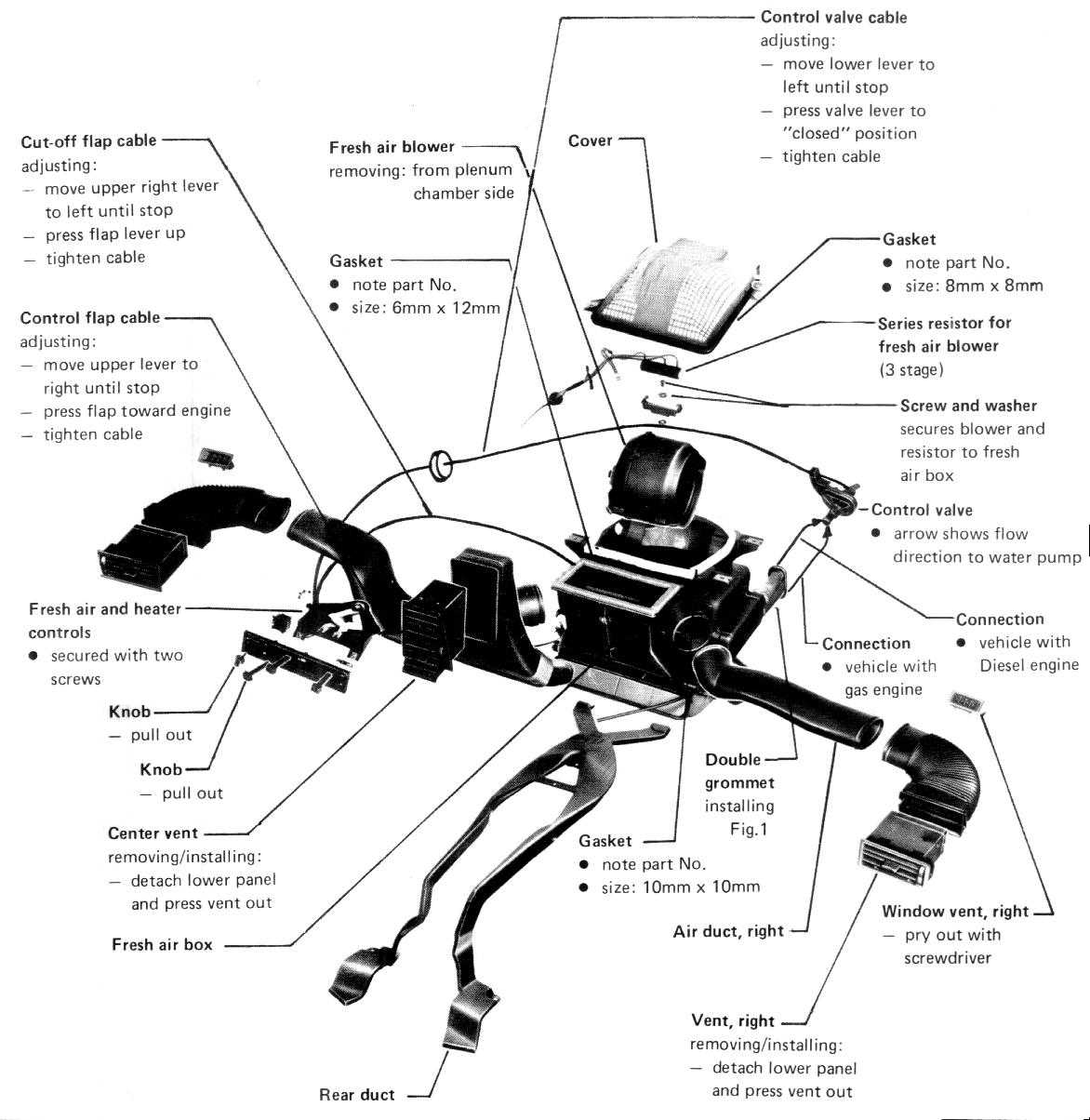

- Adjust control cables.
