Wheel Alignment - New Data

86VW2

Applies To QUANTUM SYNCRO


ALL
Group


44
Subject

Wheel Alignment


Part Identifier N/A
Key Points

New wheel alignment data


A261
Number


86-02

July 18, 1986

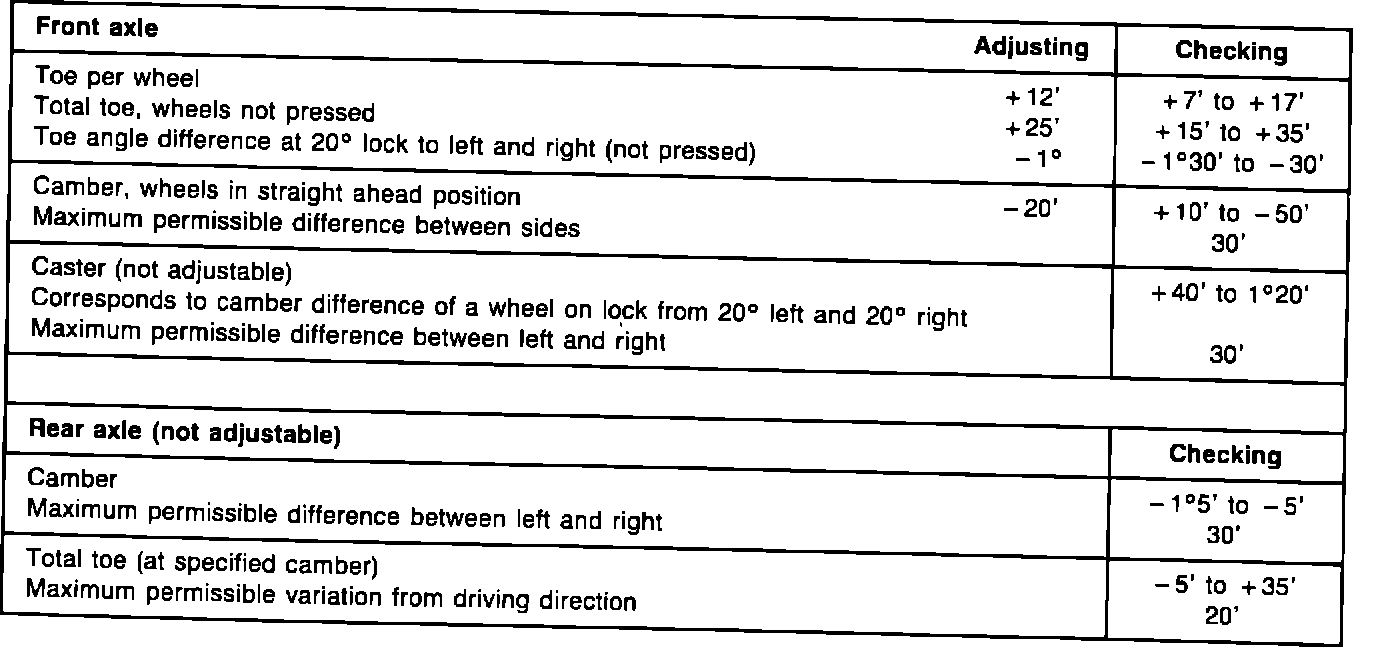

Wheel Alignment Data for Front and Rear Axles

When checking wheel alignment, following conditions are important:

^ alignment should not be checked until vehicle has run 1000-2000 miles and coil springs have settled
^ vehicle empty
^ tire pressures correct
^ test surface level and horizontal
^ vehicle bounced properly
^ steering gear correctly adjusted
^ steering linkage free of play
