Transmission Specifications and Clearances

Automatic Transmission 087 Specifications

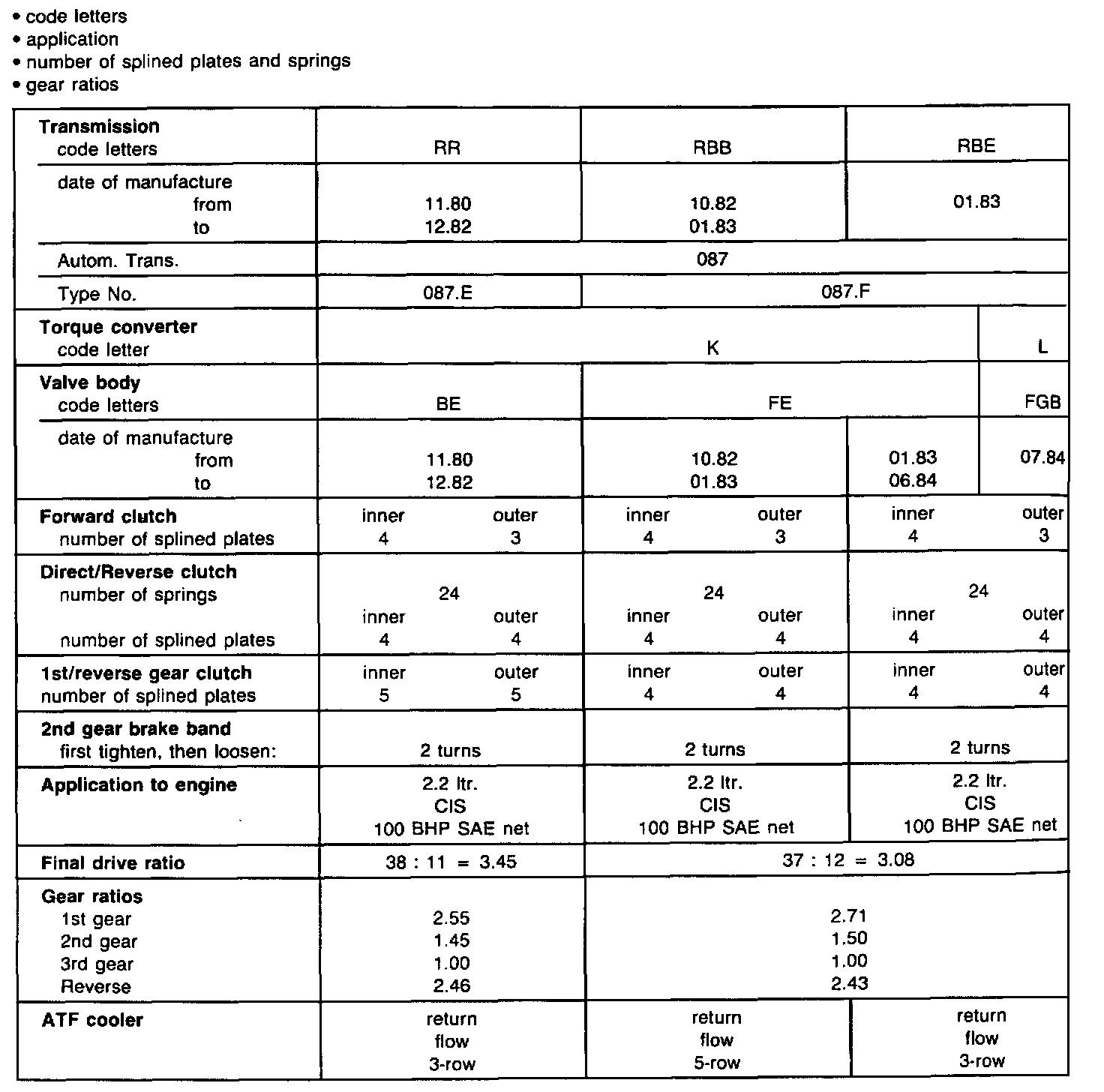

Technical Data:

Technical Data (continued):

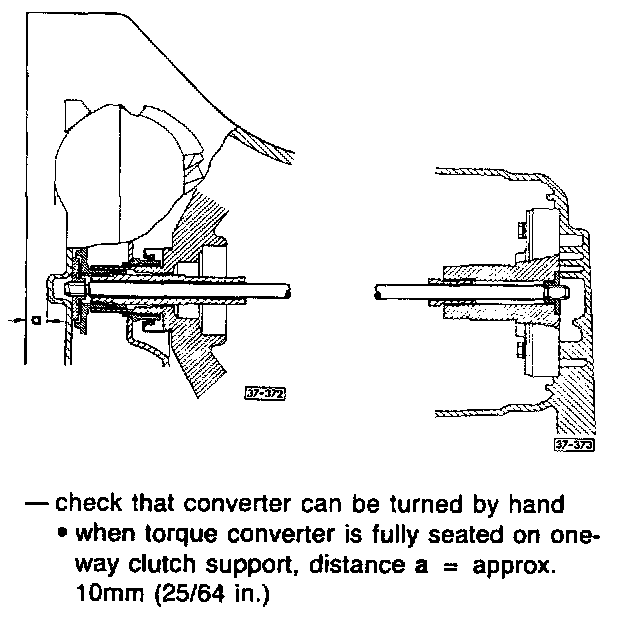

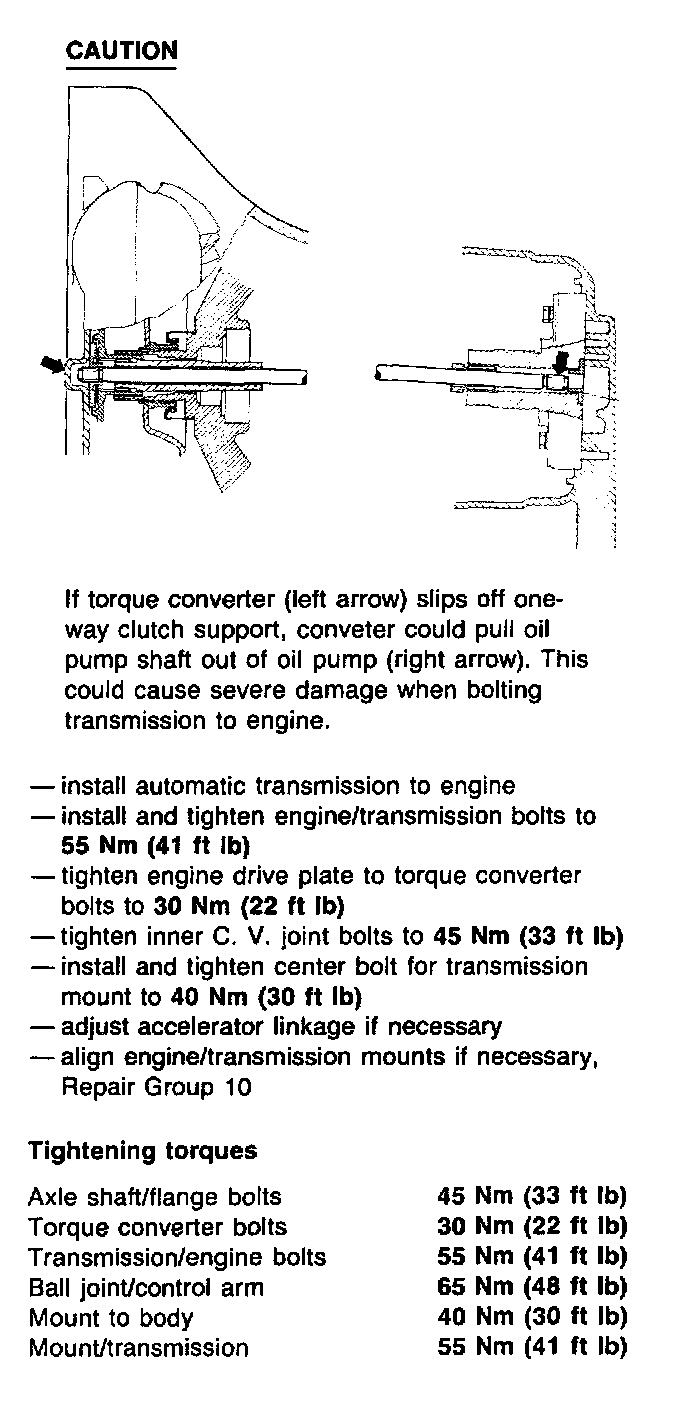

Torque Converter Specifications:

Spring Table (087 Transmission):

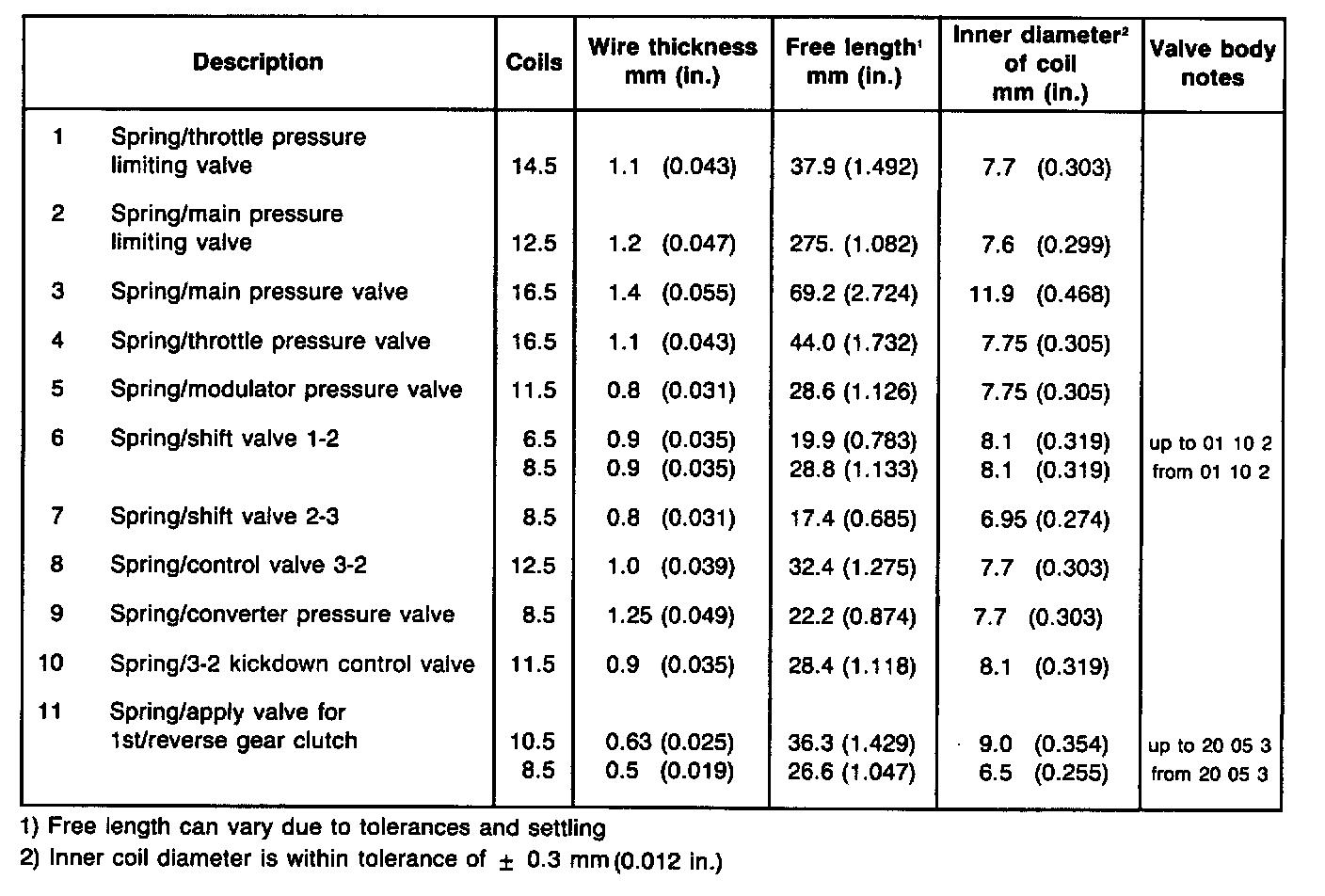

Spring Table (087 Transmission)

This table allows identification of springs by their dimensions. Coil diameter and free length can vary between new and used springs (due to settling) so check spring wire thickness and number of coils first, as means of identifying spring. If this is not enough also use inner coil diameter and free length

CAUTION
Several valve springs have similar dimensions. However, they must not be interchanged because they have different tolerances

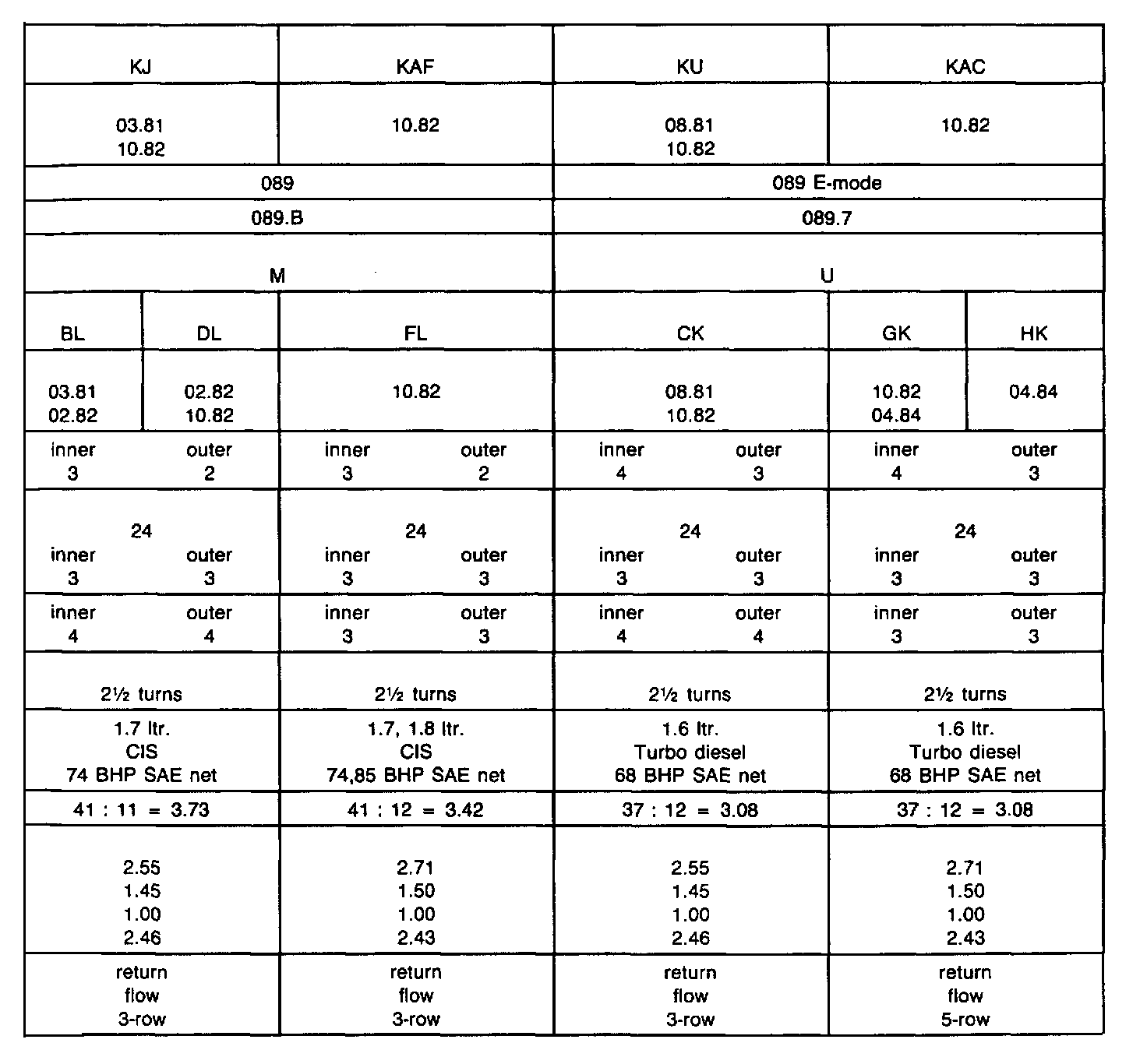

Spring Table (089 And 089 E-Mode):

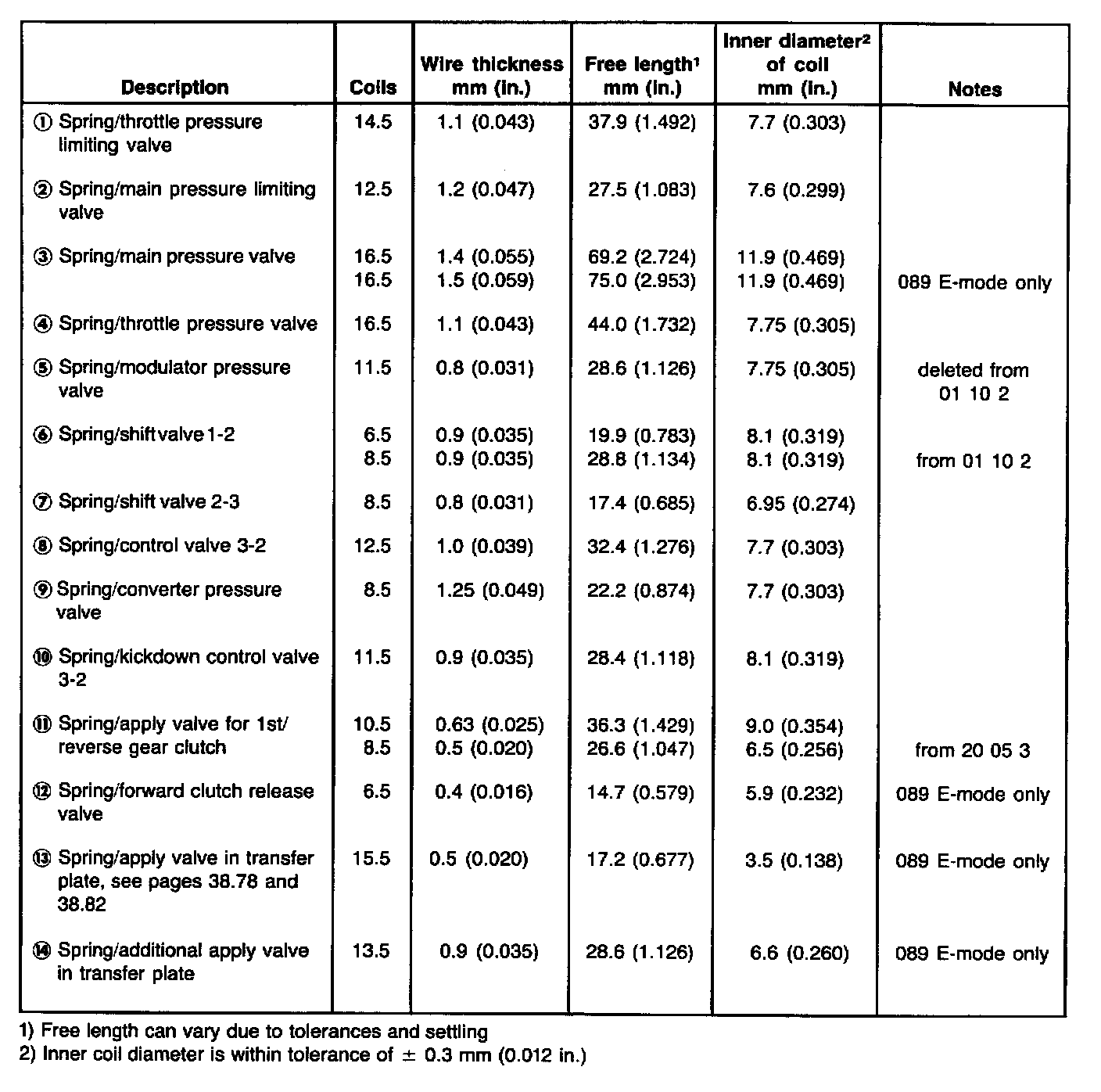

Spring table (089 and 089 E-Mode)

This table allows identification of springs by their dimensions. Coil diameter and free length can vary between new and used springs (due to settling) so check spring wire thickness and number of coils first, as means of identifying spring. If this is not enough also use inner coil diameter and free length.

CAUTION
Several valve springs have similar dimensions. However, they must not be interchanged because they have different tolerances.

Valve Spring Table - 087 Transmission:

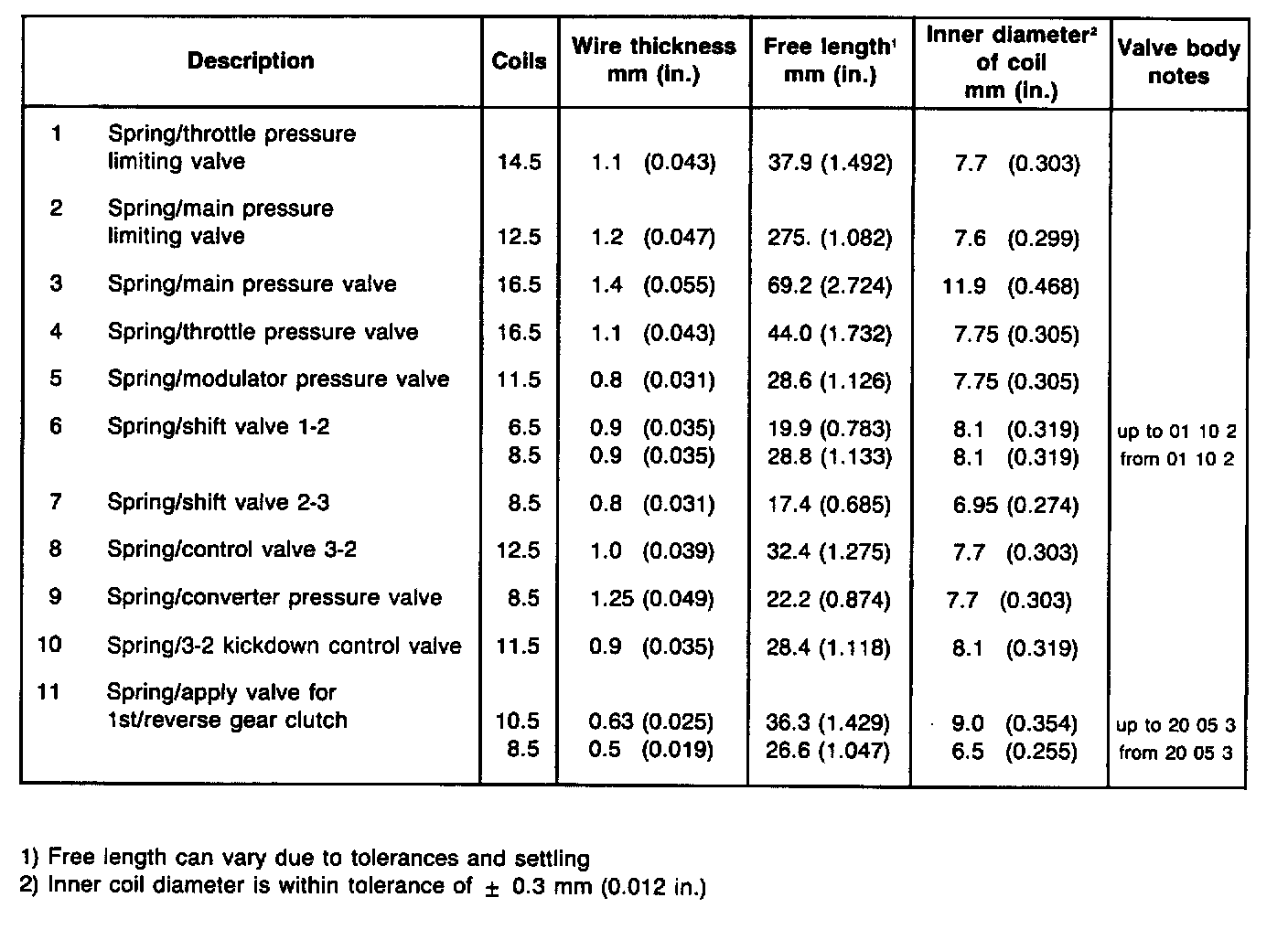

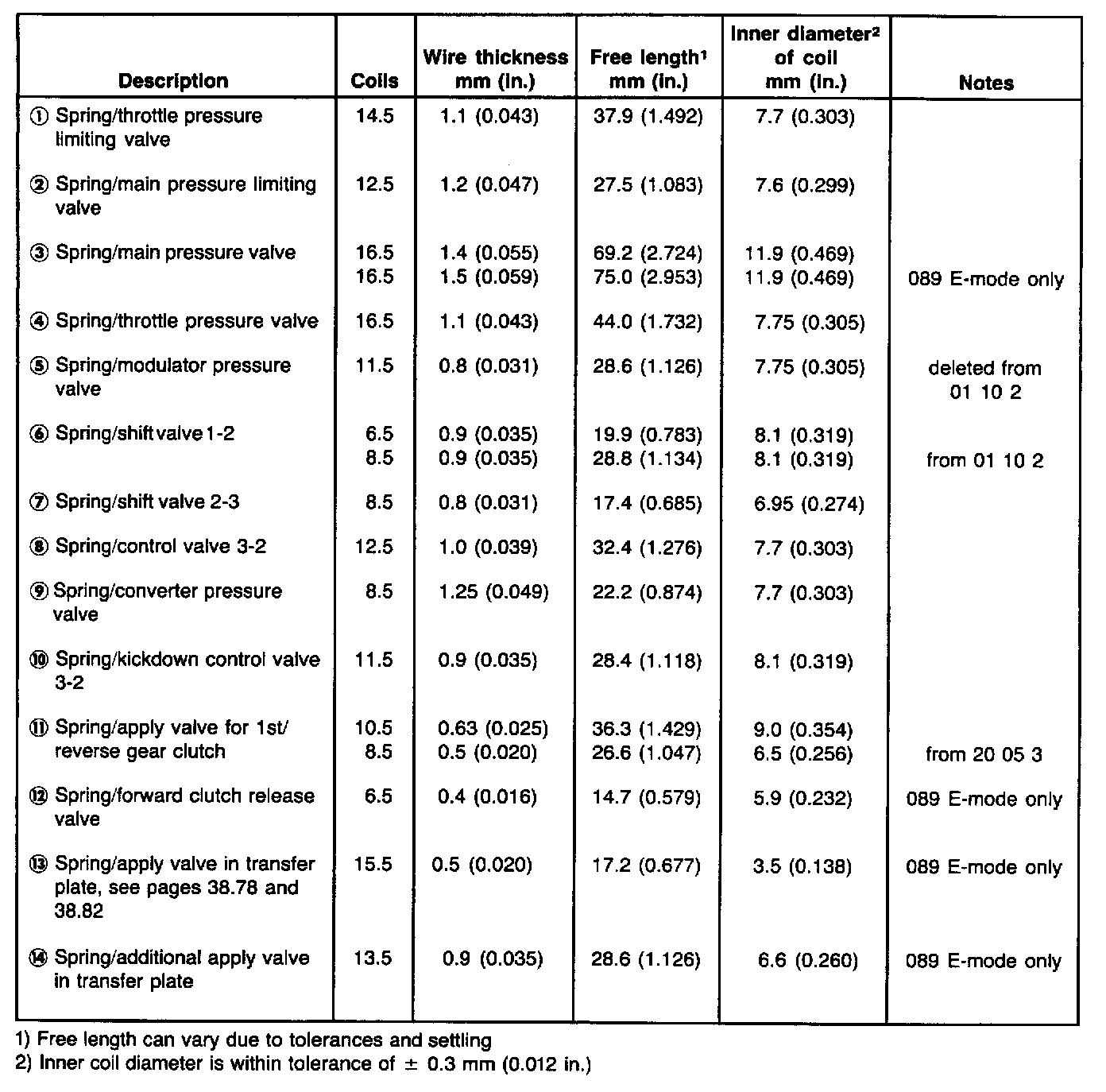

Valve Spring Table - 089 And 089 E-Mode:

CAUTION

Several valve springs have similar dimensions. However, they must not be interchanged because they have different tolerances
