Transmission Specifications and Clearances

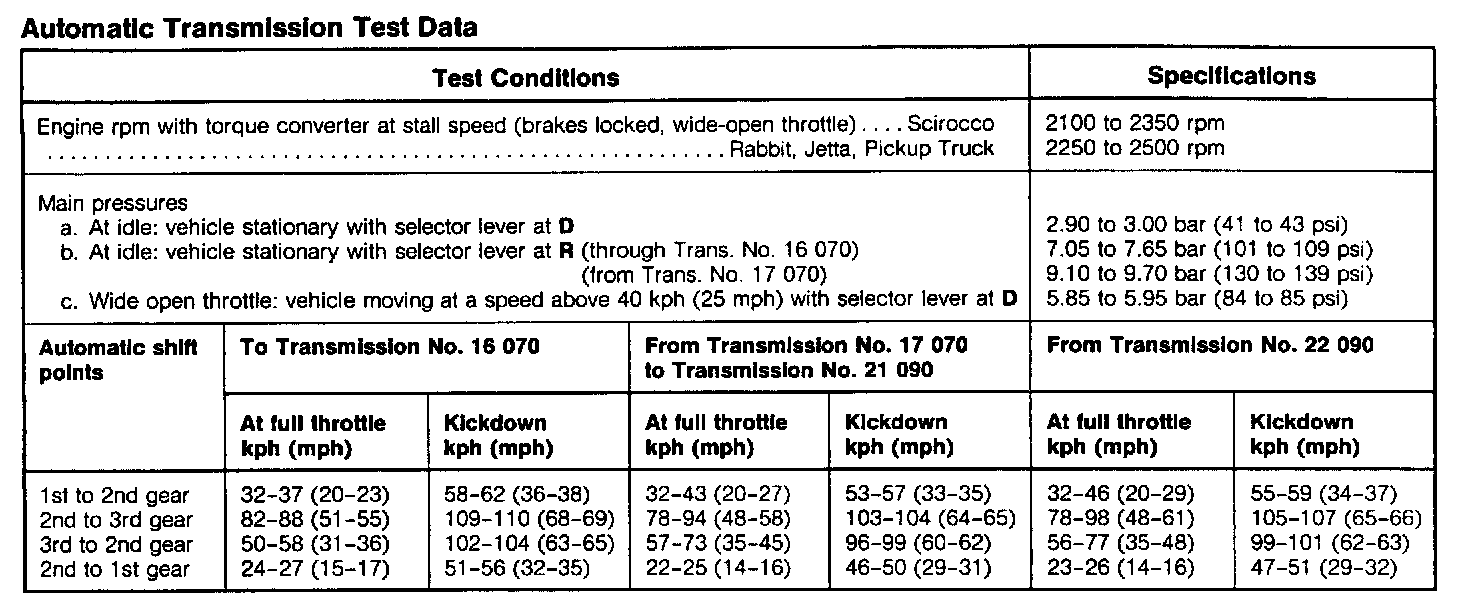

AUTOMATIC TRANSMISSIONAutomatic Transmission Specifications:
Valve Body Spring Specifications:
CAUTION - Although several springs used In the
valve body are identical when new, used springs should not be interchanged.

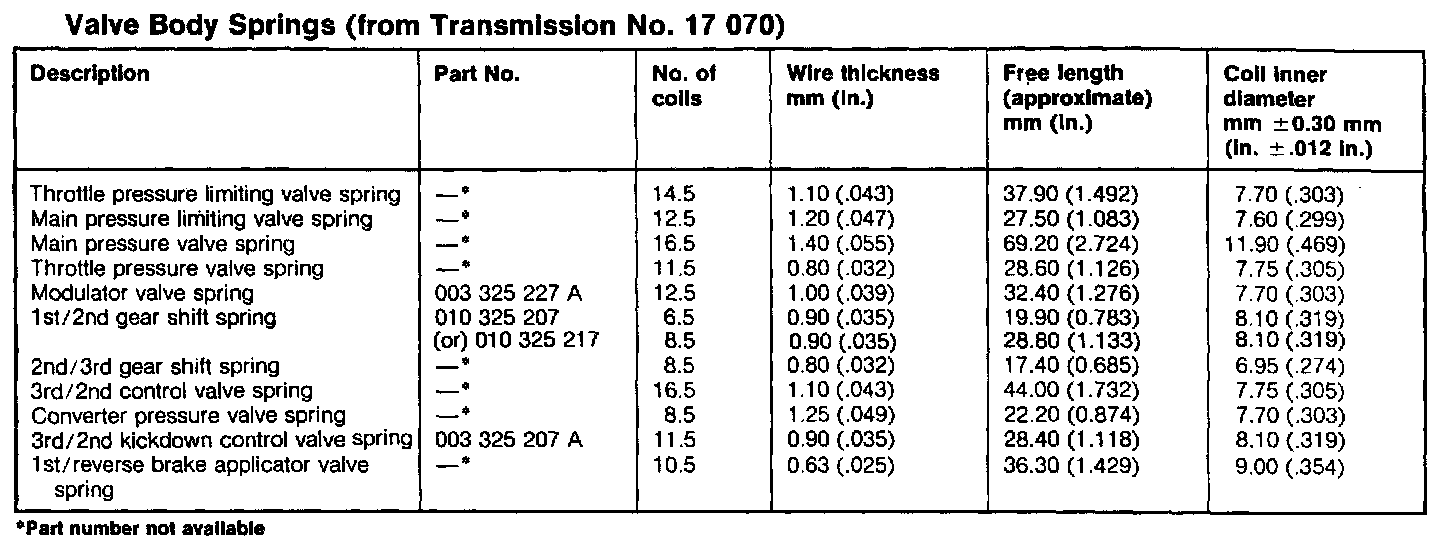

Valve Body Springs:

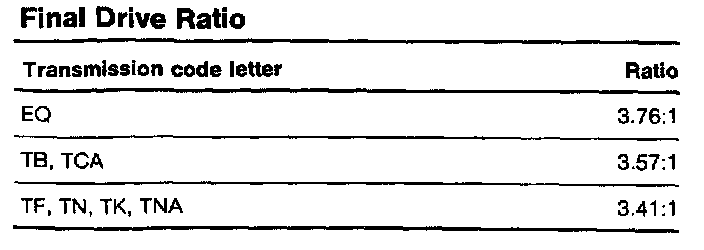

Final Drive Specifications:

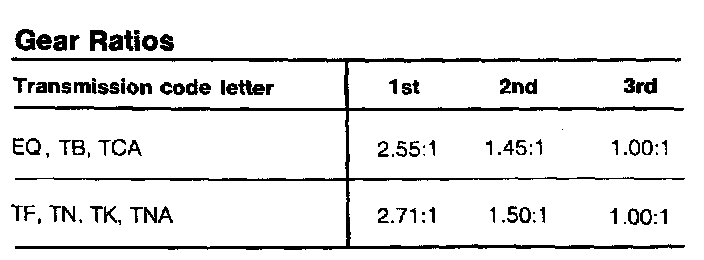

Gear Ratio Specifications:
