Quick Glow System Troubleshooting
Quick Glow System Troubleshooting

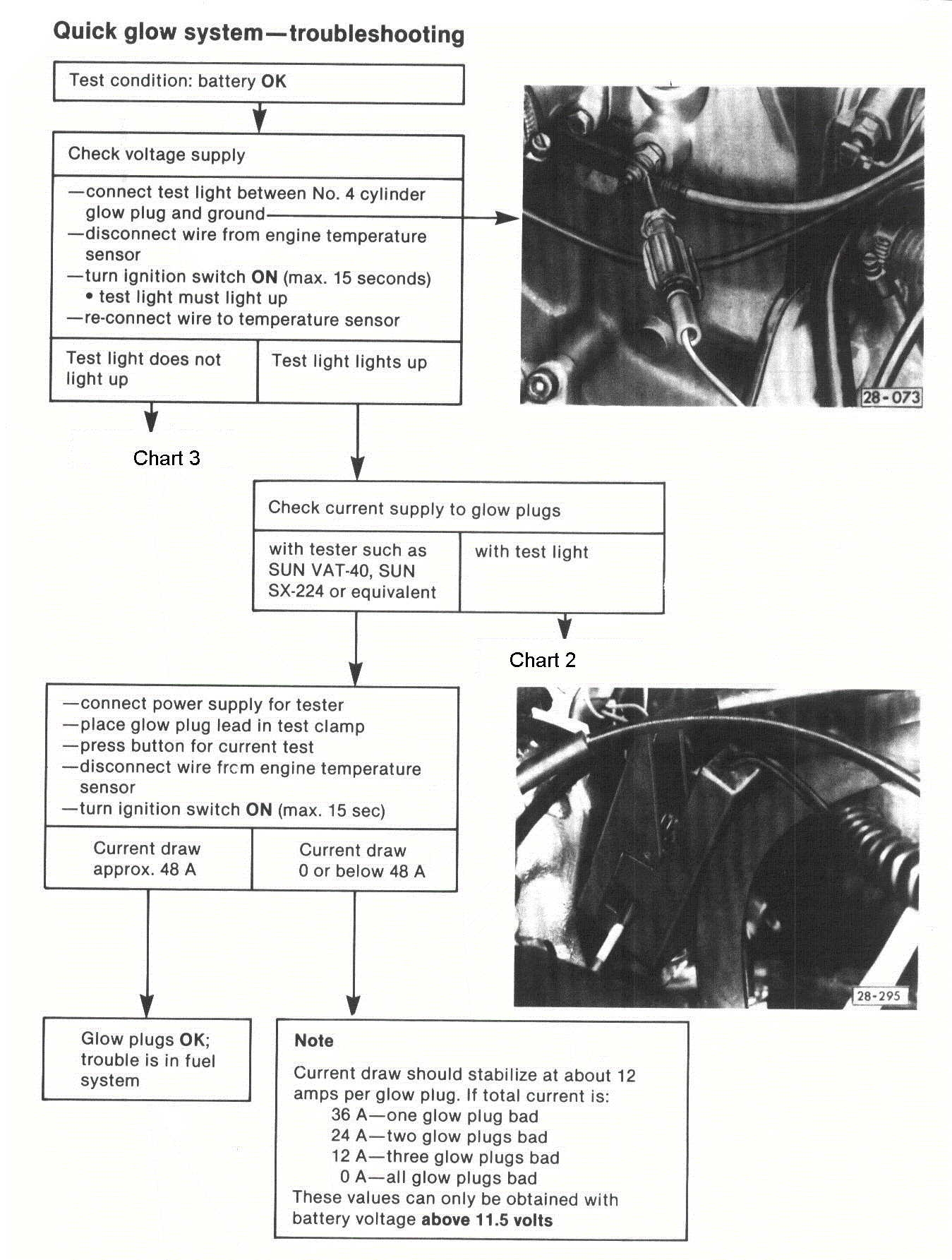

Chart 1 Of 4:

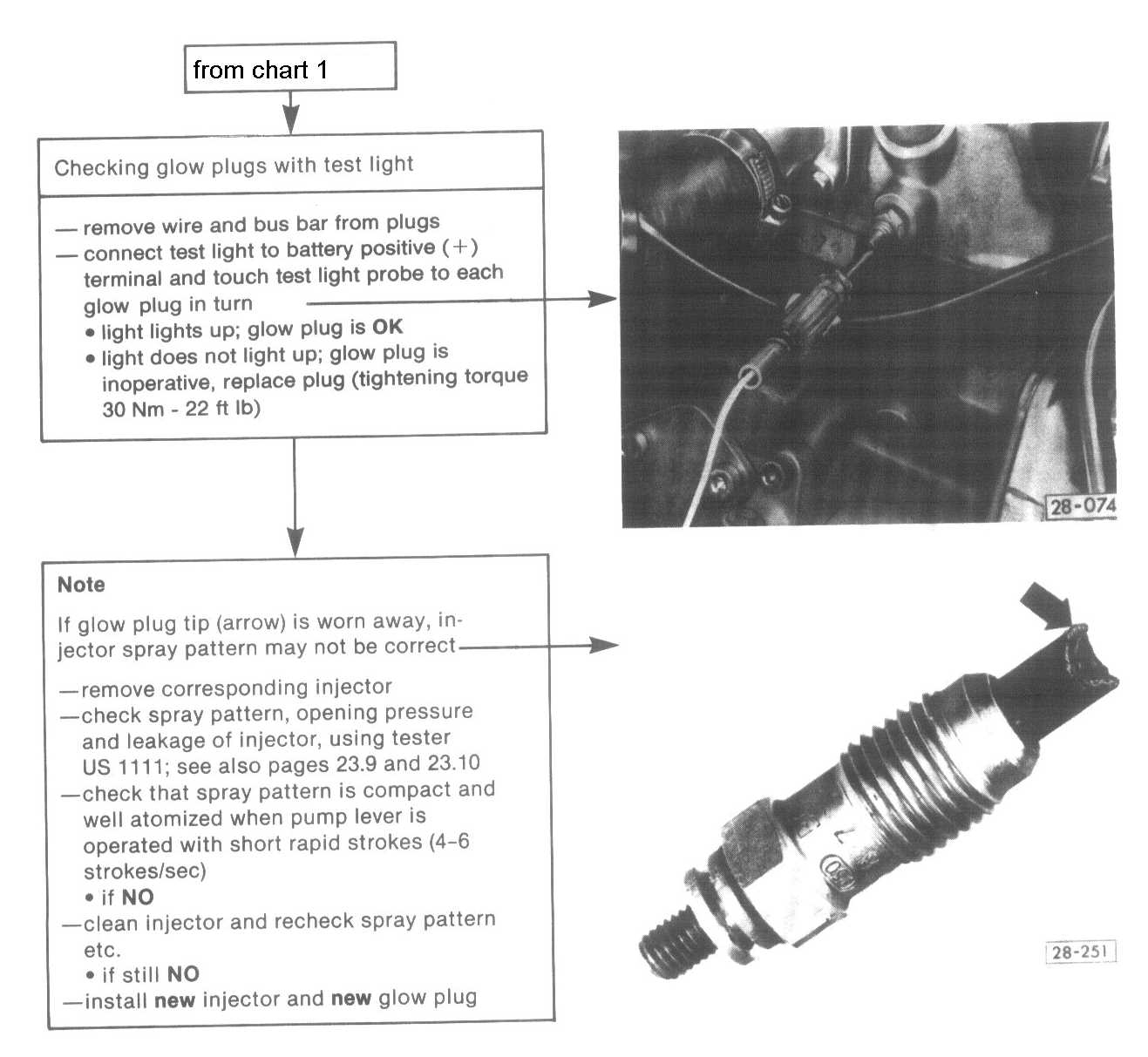

Chart 2 Of 4:

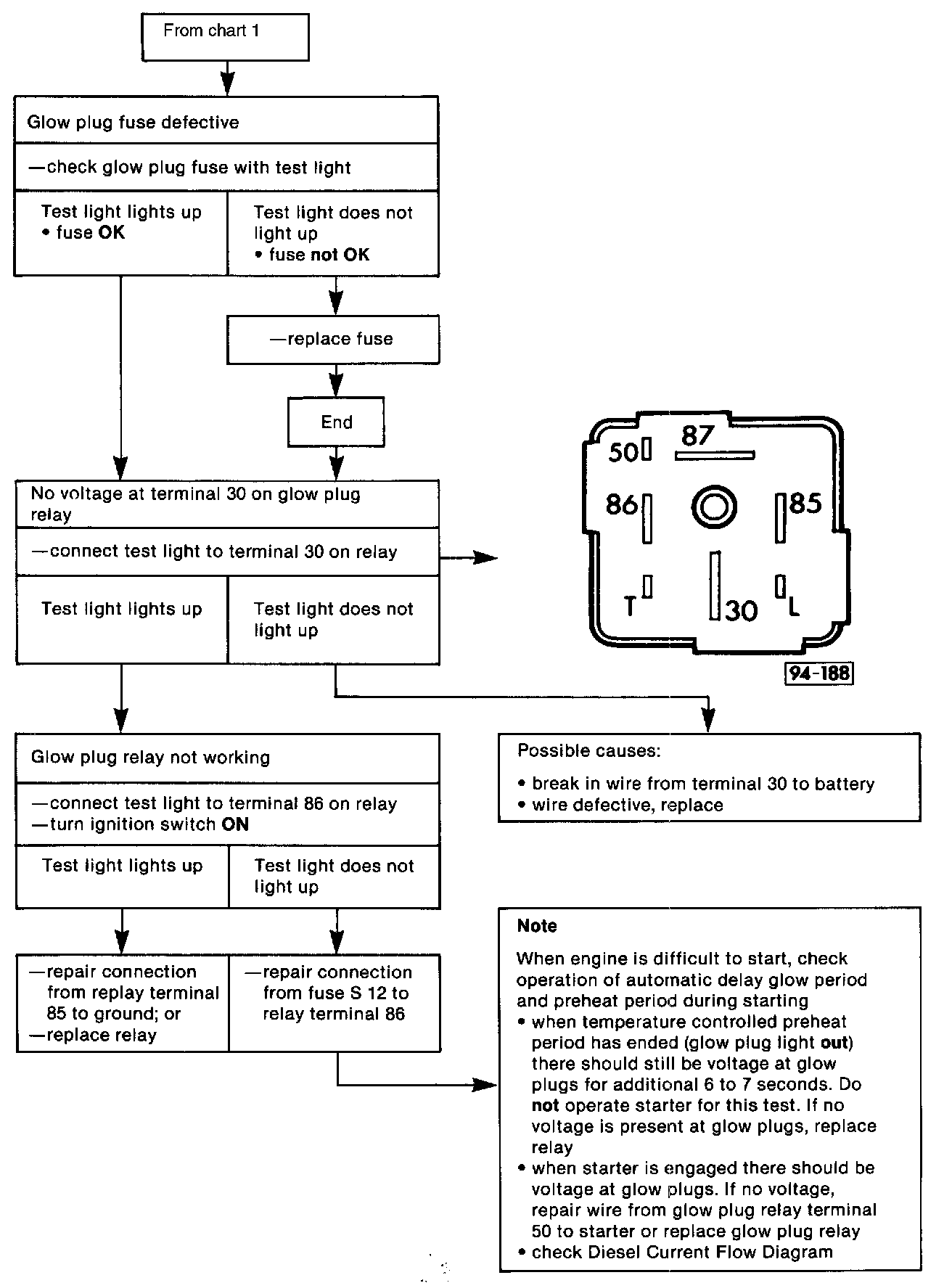

Chart 3 Of 4:

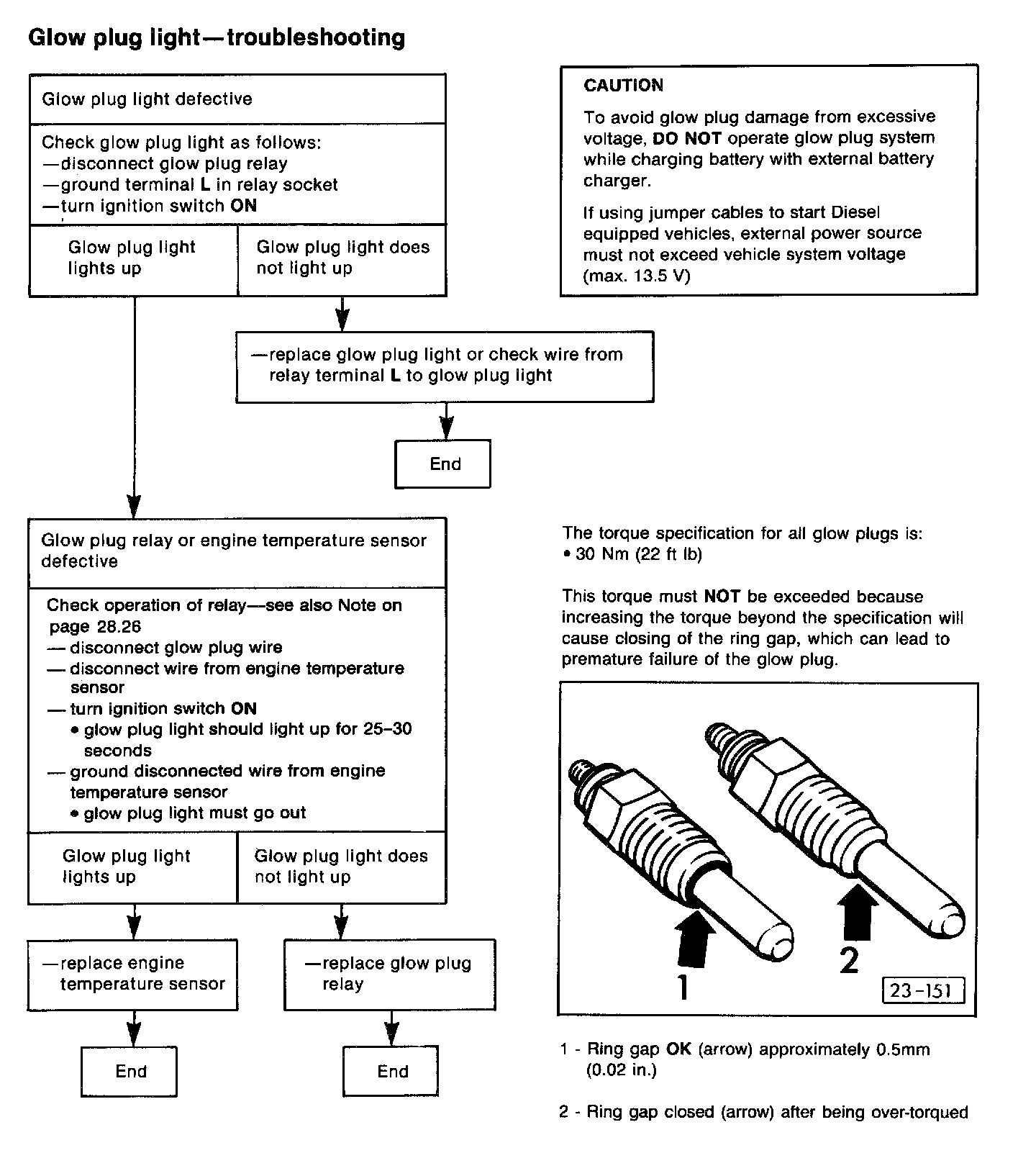

Chart 4 Of 4:
