Engine Specifications and Clearances

Engine Design Specifications

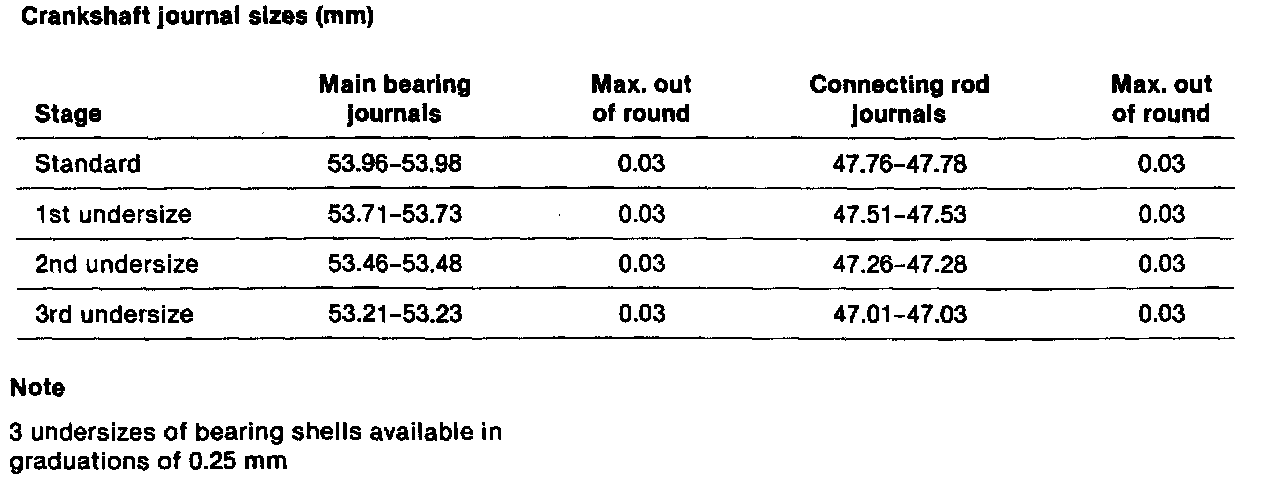

Crankshaft Journal Size Specifications:

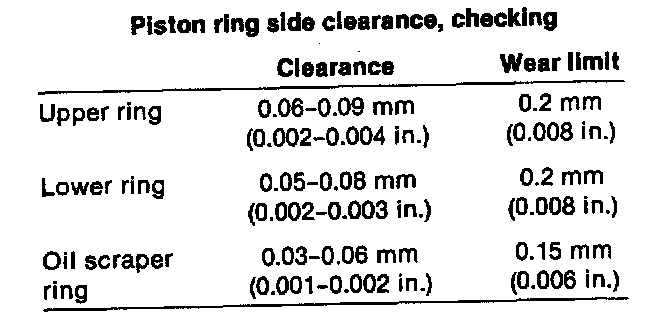

Piston Ring Side Clearance Specifications:

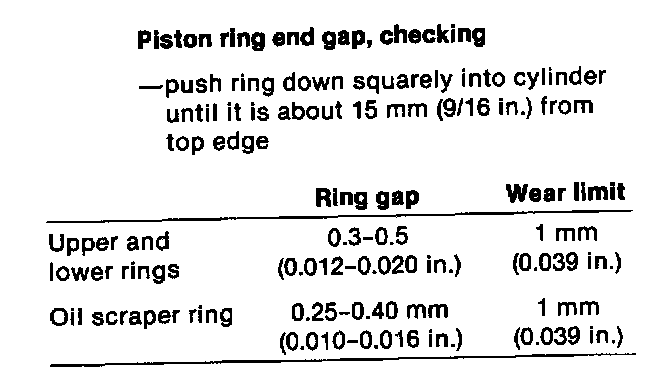

Piston Ring End Gap Specifications:

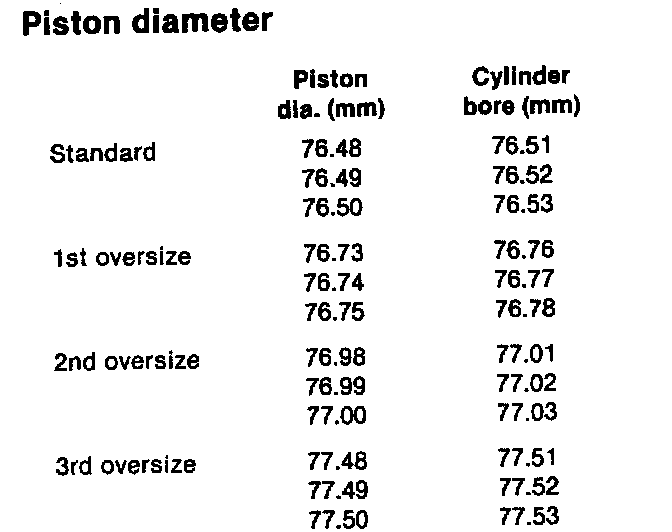

Piston Diameter Specifications:

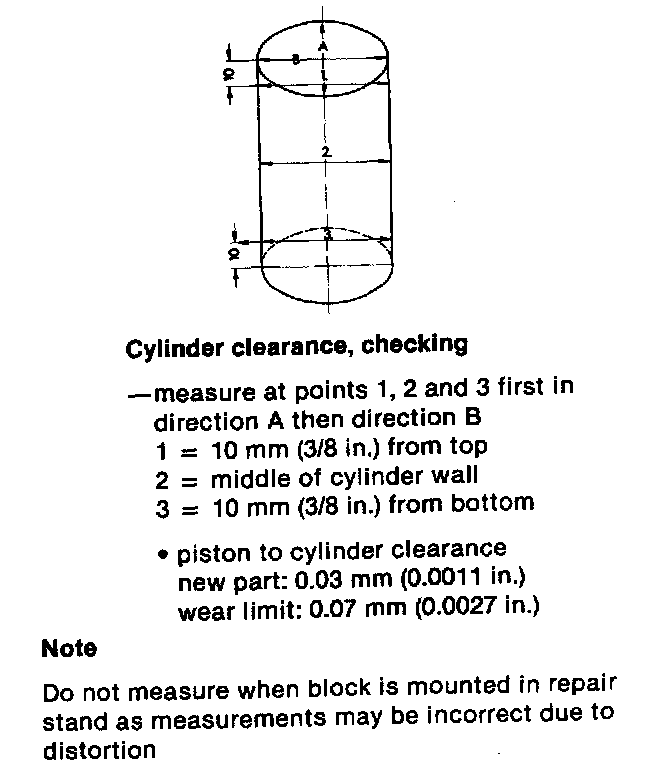

Cylinder Clearance Specifications:

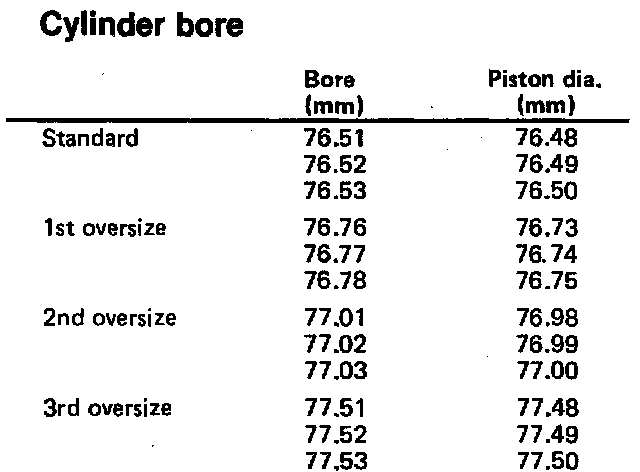

Cylinder Bore Specifications:

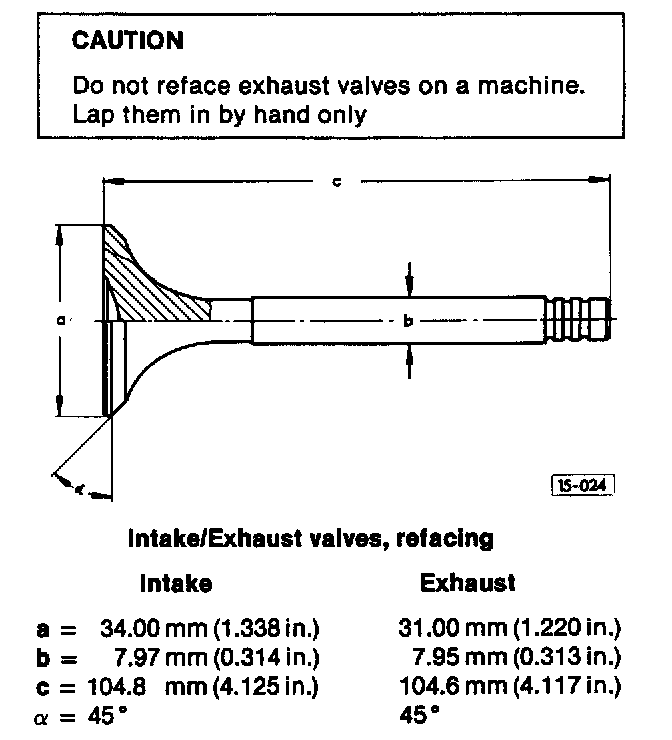

Valve Specifications:

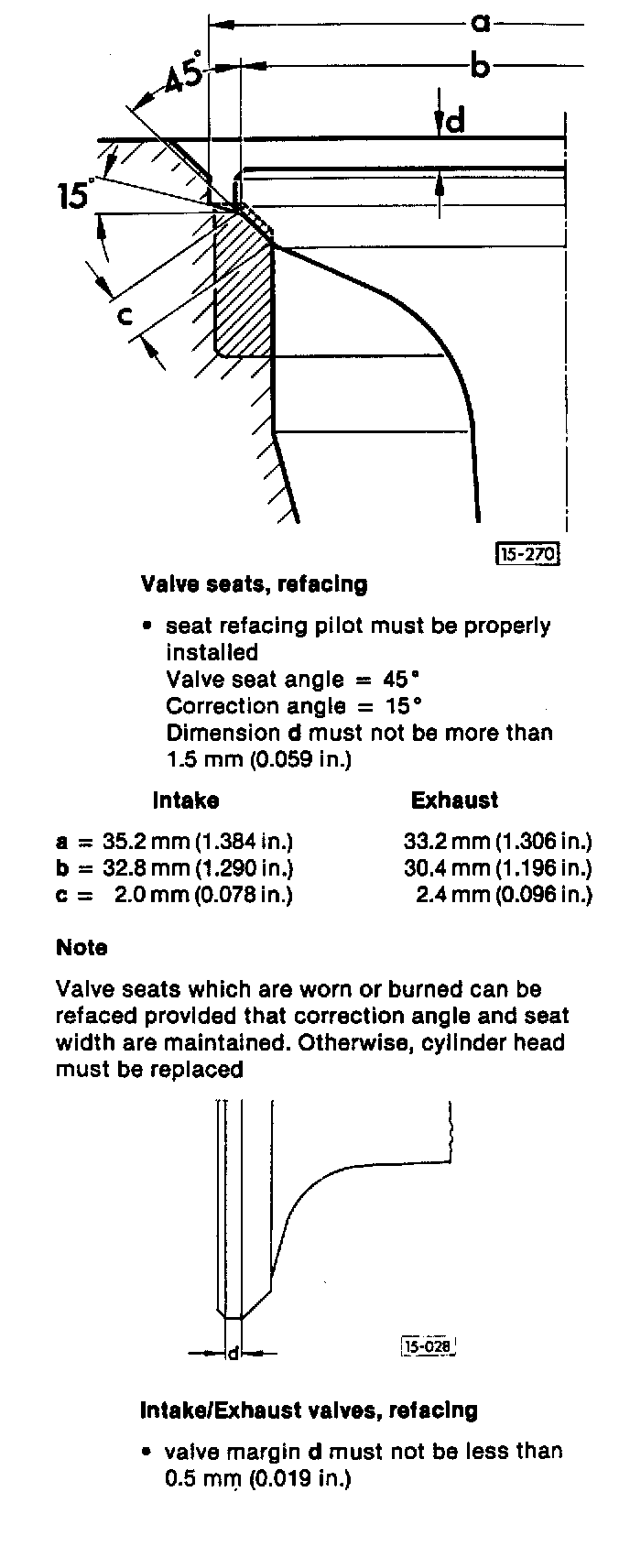

Valve Specifications Continued:
