Engine Torque Specifications

Desiel engine torque specifications

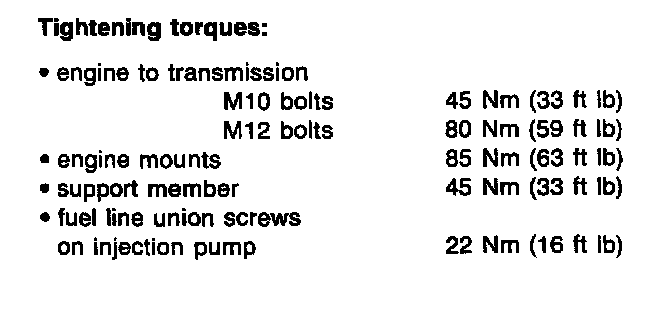

Torque Specifications:

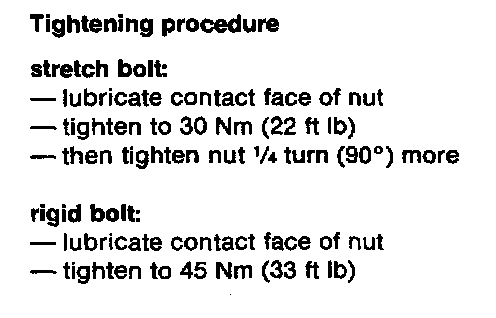

Connecting Rod Bolt Torque Specifications:

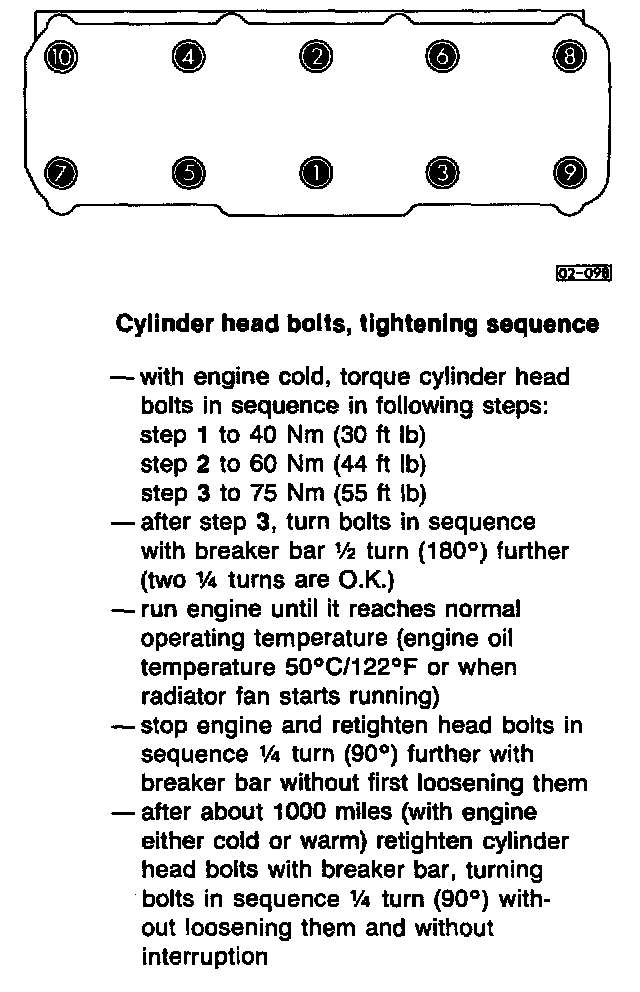

Cylinder Head Torque Specifications:
