Injector resistance, checking
-

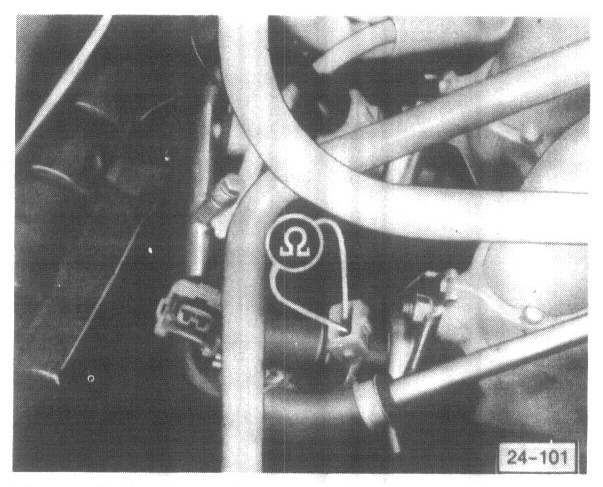

Pull connector off injector and connect ohmmeter to injector.
Resistance should be
2-3 ohms
If NO, replace injector
