Injector Spray Pattern, Checking

Injector spray pattern, checking

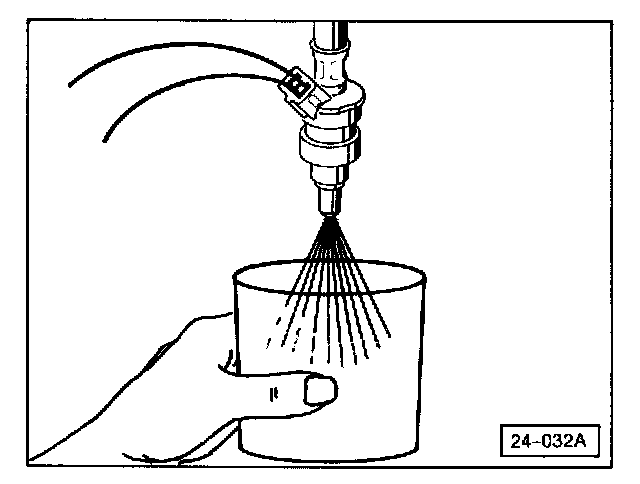

- Remove injector but leave connected to fuel ring main

WARNING: Fire hazard. Do not smoke or have anything in area that can ignite fuel

- Operate starter briefly spray pattern must be an even, cone-shaped spray
