Track 119 - 133
Track 119 - 133

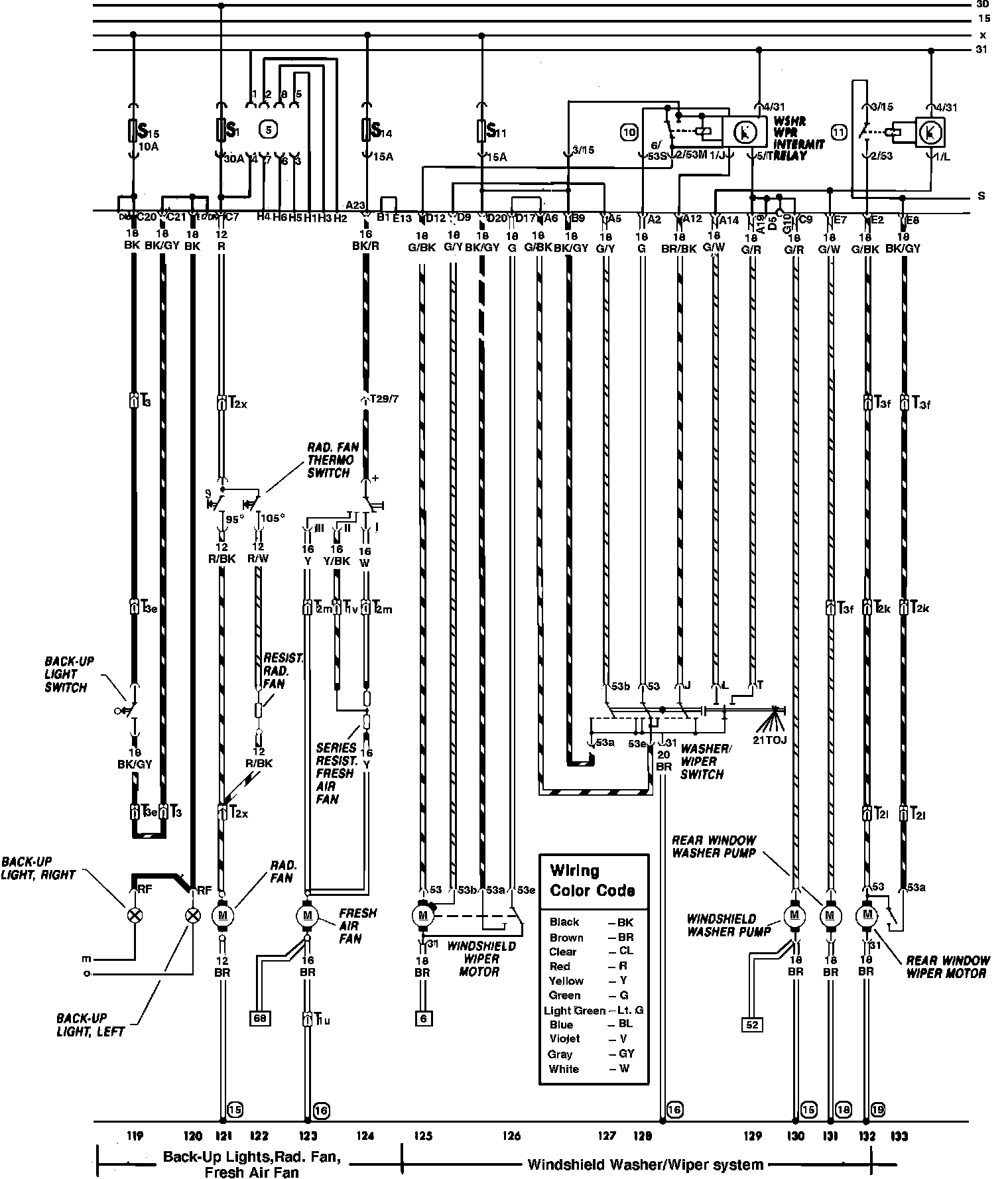

Back-Up Light, Cooling Fan, Fresh Air Fan & Windshield Wiper/Washer:
