Distributors (W/HALL Connection) - Revised Part Numbers

83VW01
Applies To

Rabbit, Jetta 1.7 Engine

Rabbit, Convertible, Jetta, Scirocco 1.8 Engine

1984

Group


28
Subject 1.7 Engine

1.8 Engine

Part Identifier N/A
Key Points

Ignition distributor with modified HALL generator Connection

A 076
Number

83-02

December 16, 1983

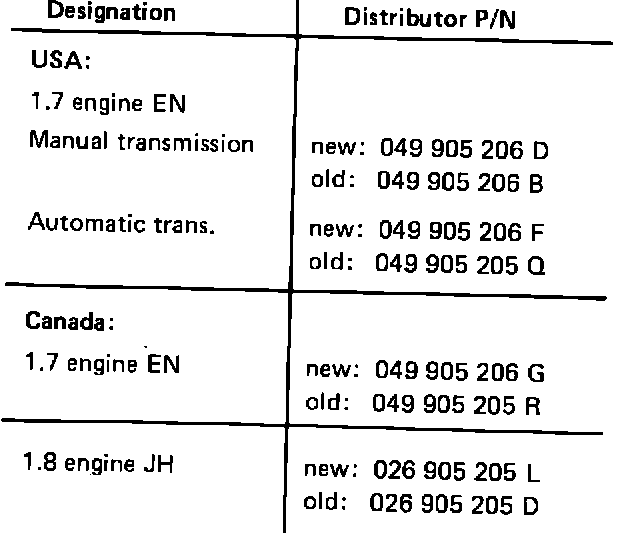

Distributors with modified Hall generator connections have new part numbers...

Note

Distributor data identical to previous ignition distributors.
CAUTION Part numbers are for reference only. Always check with your Parts Department for latest parts information.
