Shift Linkage: Adjustments
ADJUSTING SHIFT MECHANISM1. Position gearshift lever in neutral.
Fig. 6 Shifter rod clamp bolt location:
2. Loosen shifter rod clamp bolt, and ensure selector lever moves freely on shifter rod.
3. Remove gearshift lever knob and boot.
Fig. 7 Installing adjustment gauge:
4. Position adjustment gauge 3104 or equivalent.
5. With transmission in neutral, align shift rod with selector lever, then tighten shift rod clamp to 25 Nm (19 ft. lbs).
6. Engage 1st gear.
NOTE: To check or adjust the shift mechanism, overcome the freeplay in the shift mechanism by pressing the gearshift lever lightly towards the left hand side.

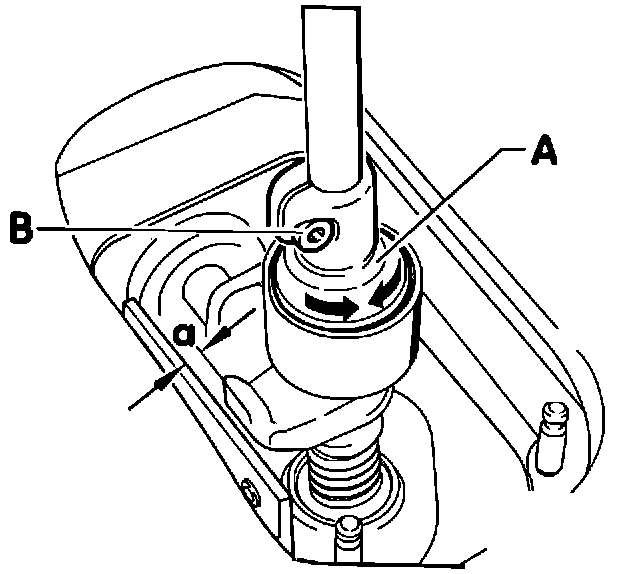

7. Use a feeler gauge to measure dimension "a" (1.0 - 1.5 mm).
8. If adjustment is required, loosen screw "B".
9. Rotate eccentric "A" until dimesion "a" is correct.
10. Tighten screw "B".
11. Install shift boot and gearshift lever knob.
