W/AFC, Digifant II

Fuel Injection System Components (Part 1 of 5).:

Fuel Injection System Components (Part 2 of 5).:

Fuel Injection System Components (Part 3 of 5).:

Fuel Injection System Components (Part 4 of 5).:

Fuel Injection System Components (Part 5 of 5).:

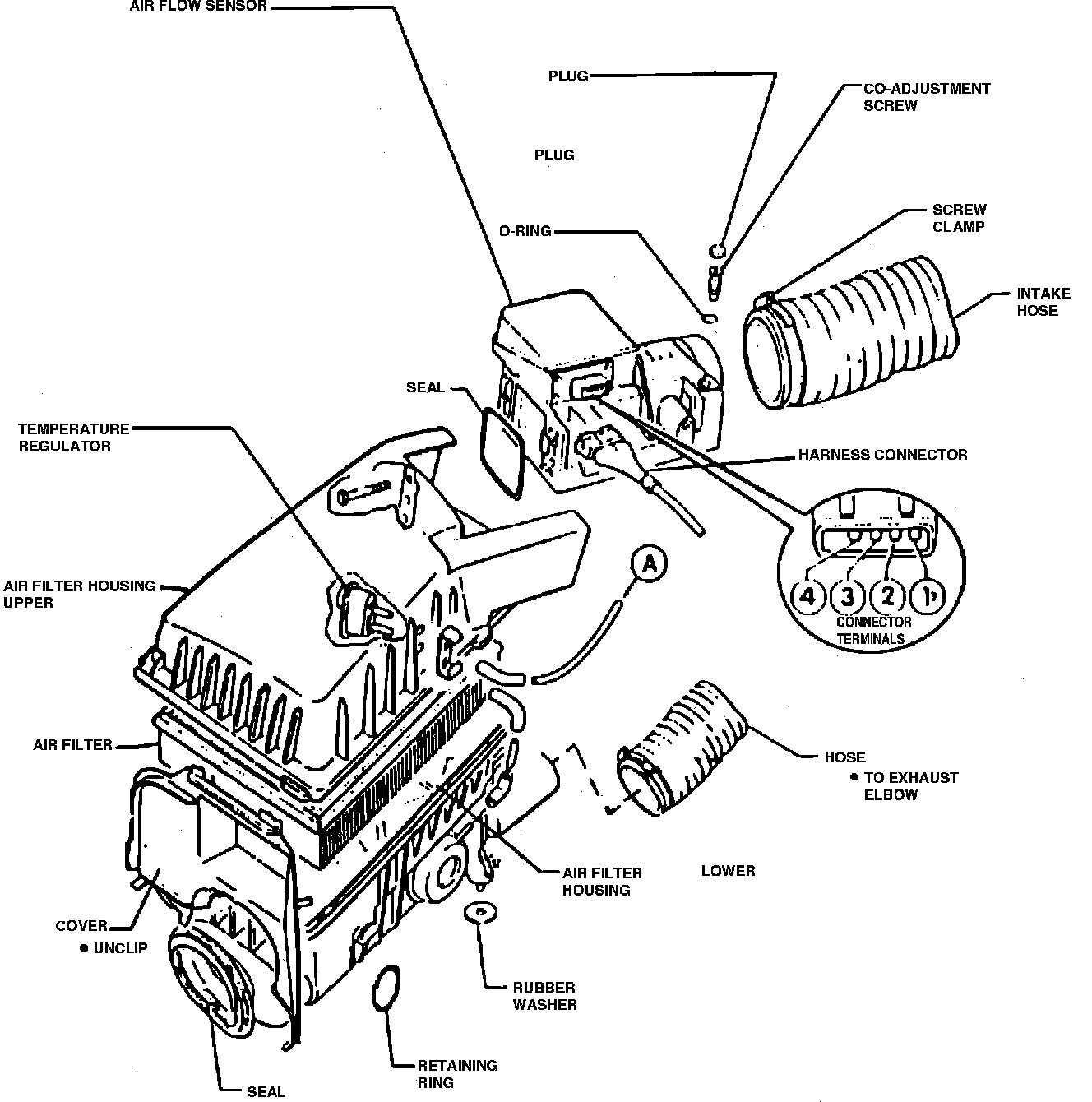

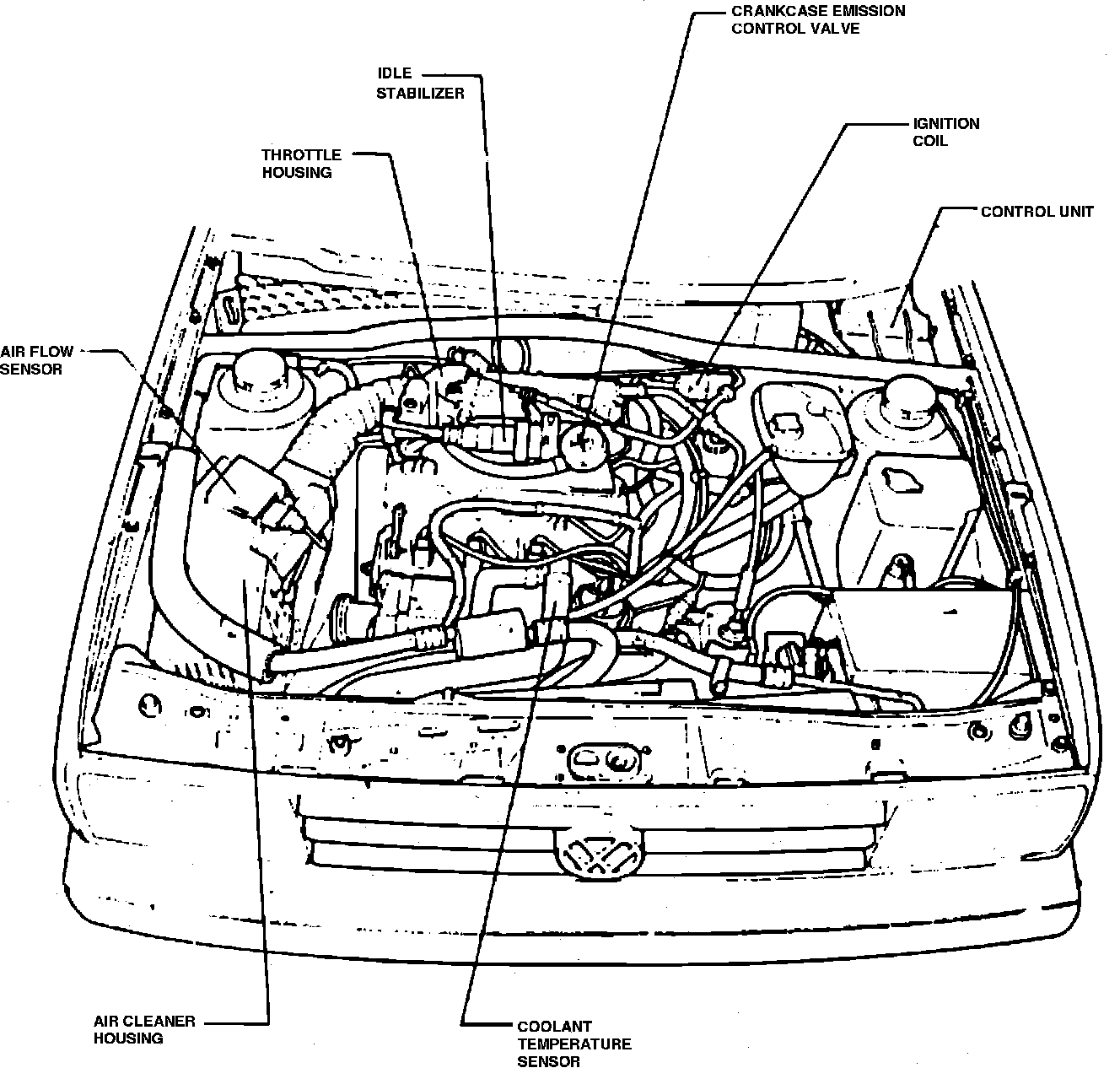

RH Side Of Engine Compartment Top Of Upper Air Filter Housing

Applicable to: 1985-86 Golf, GTI & Jetta W/AFC, Digifant II
