Heater/Fresh Air Box, Splitting
Heater/fresh air box, splittingThe heater/fresh air box halves are welded together at 18 flange areas.

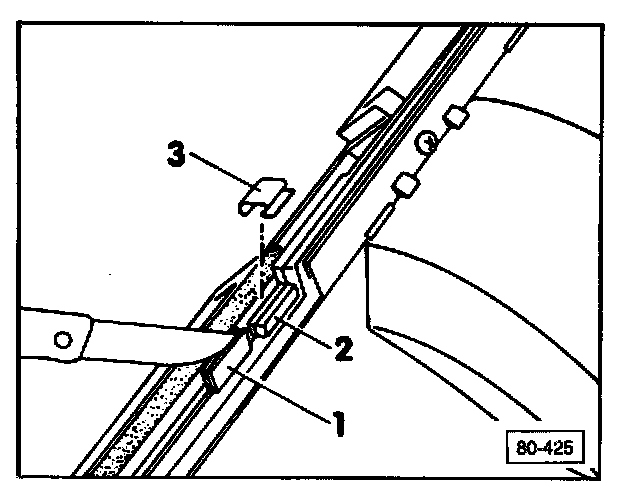

To split case apart when repairs are needed,
- insert knife along welded flange seam (1)
- hit knife sharply with hammer
- break all 18 welds
To assemble case halves after welded seams have been broken,
- attach clip (3) at clamp flange (2)
requires 11 clips
part number 321 819 059
CAUTION: Part numbers are for reference only. Always check with your Parts Department for latest parts information.
