Heater/Ventilation Control Cables

Heater/Ventilation controls, installing/adjusting cables

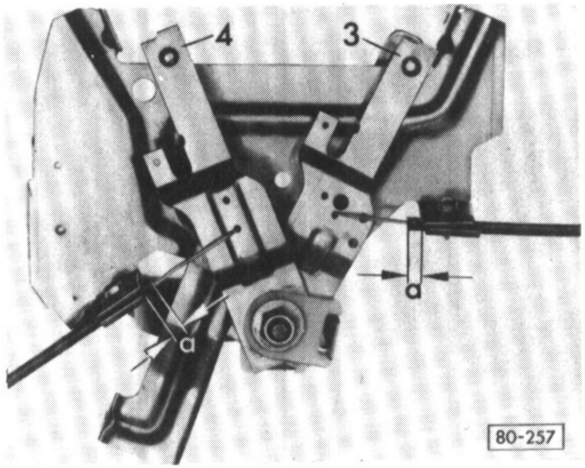

Fig. 1 Control levers
on lever 4 - passenger compartment ventilation cable conduit has 2 green paint marks and projects out of clamp approx. a = 3 mm (1/8 in)

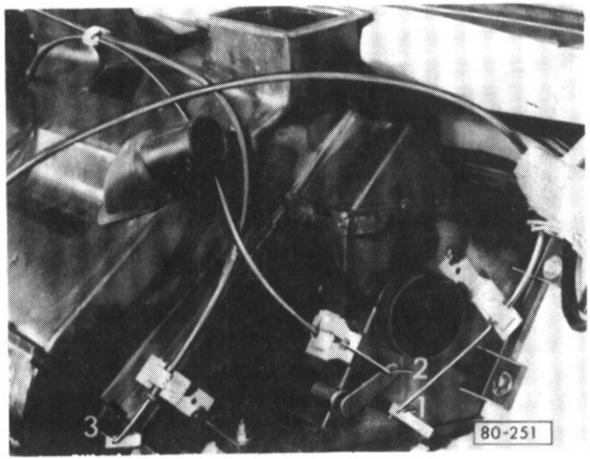

Fig. 2 Flap-housing cables:
1 - passenger compartment flap
2 - main cut-off flap
3 - defroster flap and footwell flap

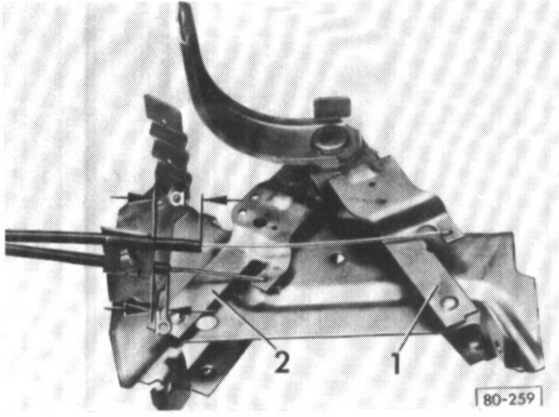

Fig. 3 Control cable:
on lever 1 - defroster flap/footwell flap (cable conduit has red paint mark)
on lever 2 - to control valve (cable conduit has 2 blue/yellow paint marks)
conduits project out of clamp approx.
a = 30 mm (1 3/16 in)
b = 20 mm (3/4 in)

Vehicles With Auxiliary Heater DA 6 Only:

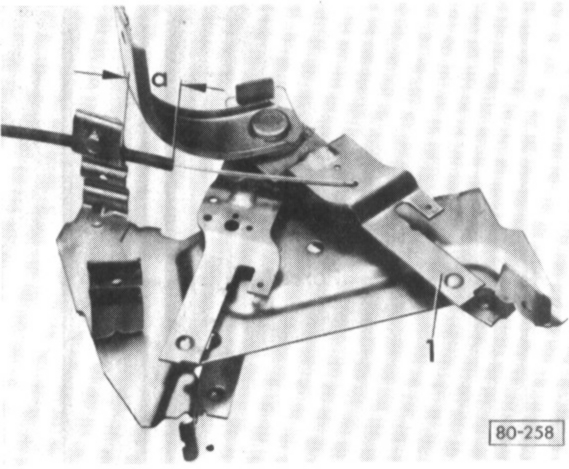

Fig. 4 Control cable:
on lever 1 - heated air distributor in passenger compartment (cable conduit has red paint mark and projects out of clamp approx. a = max. 38mm(1 1/2 in)
