Emissions Maintenance Light: Service and Repair

Oxygen Sensor Mileage Counter:

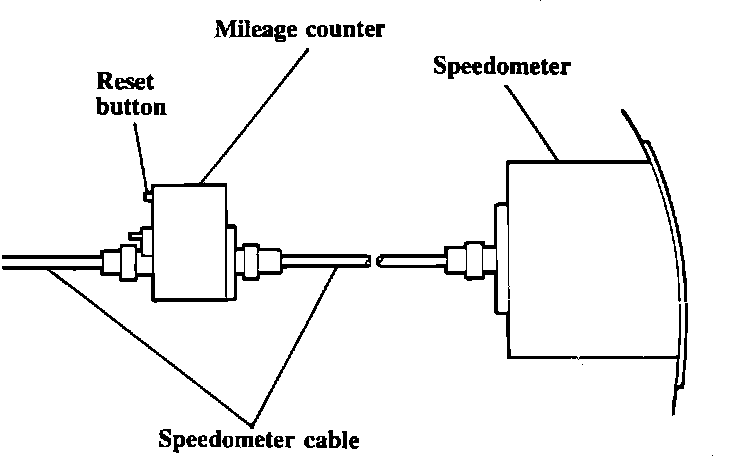

The oxygen sensor replacement warning light, is activated at 60,000 miles by the mileage counter. It is located inline with the speedometer cable, under the front of the vehicle, next to the left hand side radius rod. It can be found by following the speedometer cable up from the left front axle to the mileage counter.

When the warning lamp is illuminated at the 60,000 mile interval, the oxygen sensor should be replaced and the mileage counter reset.
The mileage counter can be easily reset by pressing the reset button located on the unit.
