Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volkswagen
>>
1987
>>
Vanagon Syncro AWD L4-2109cc 2.1L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

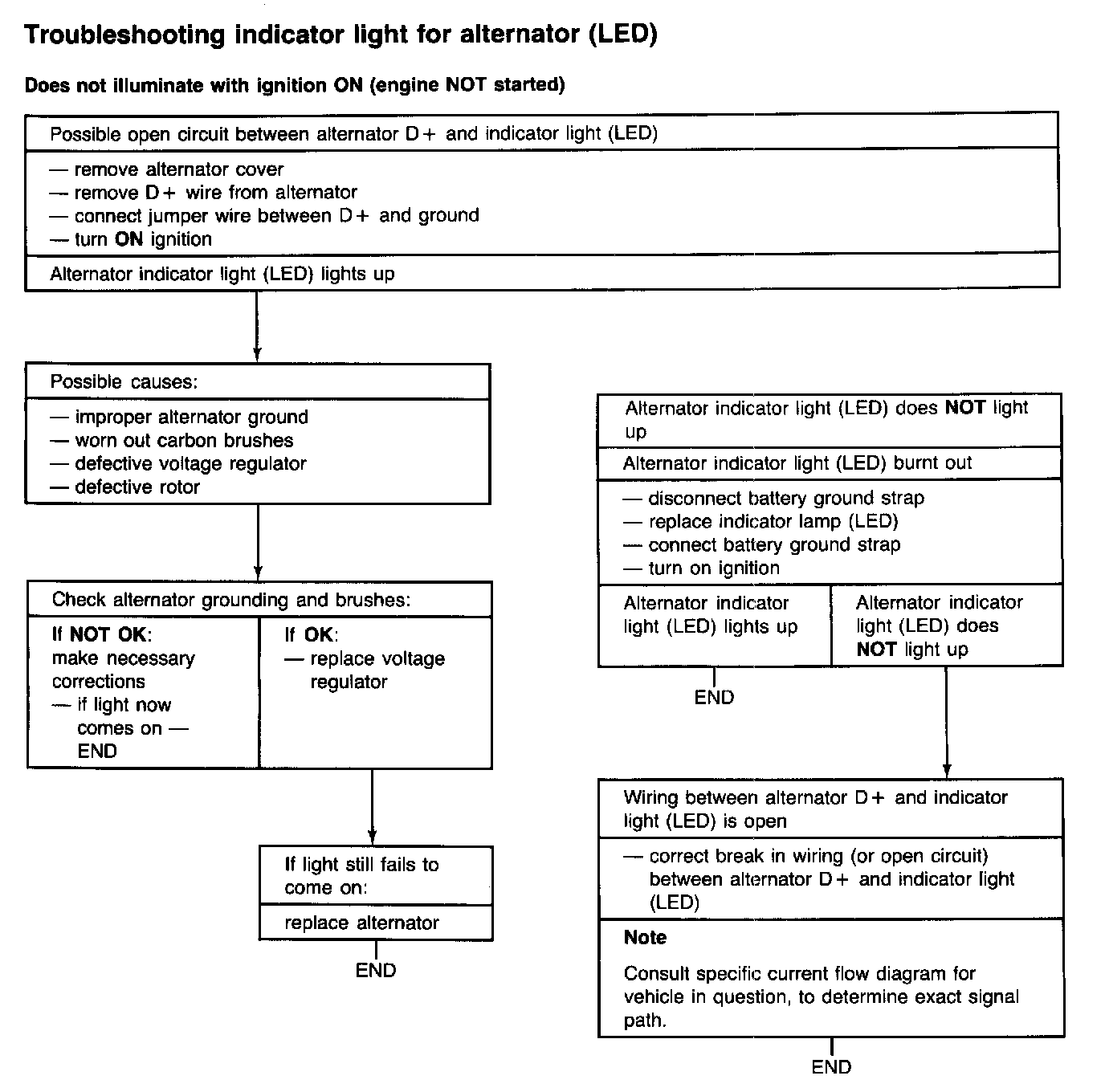

Chart 1 Of 2:

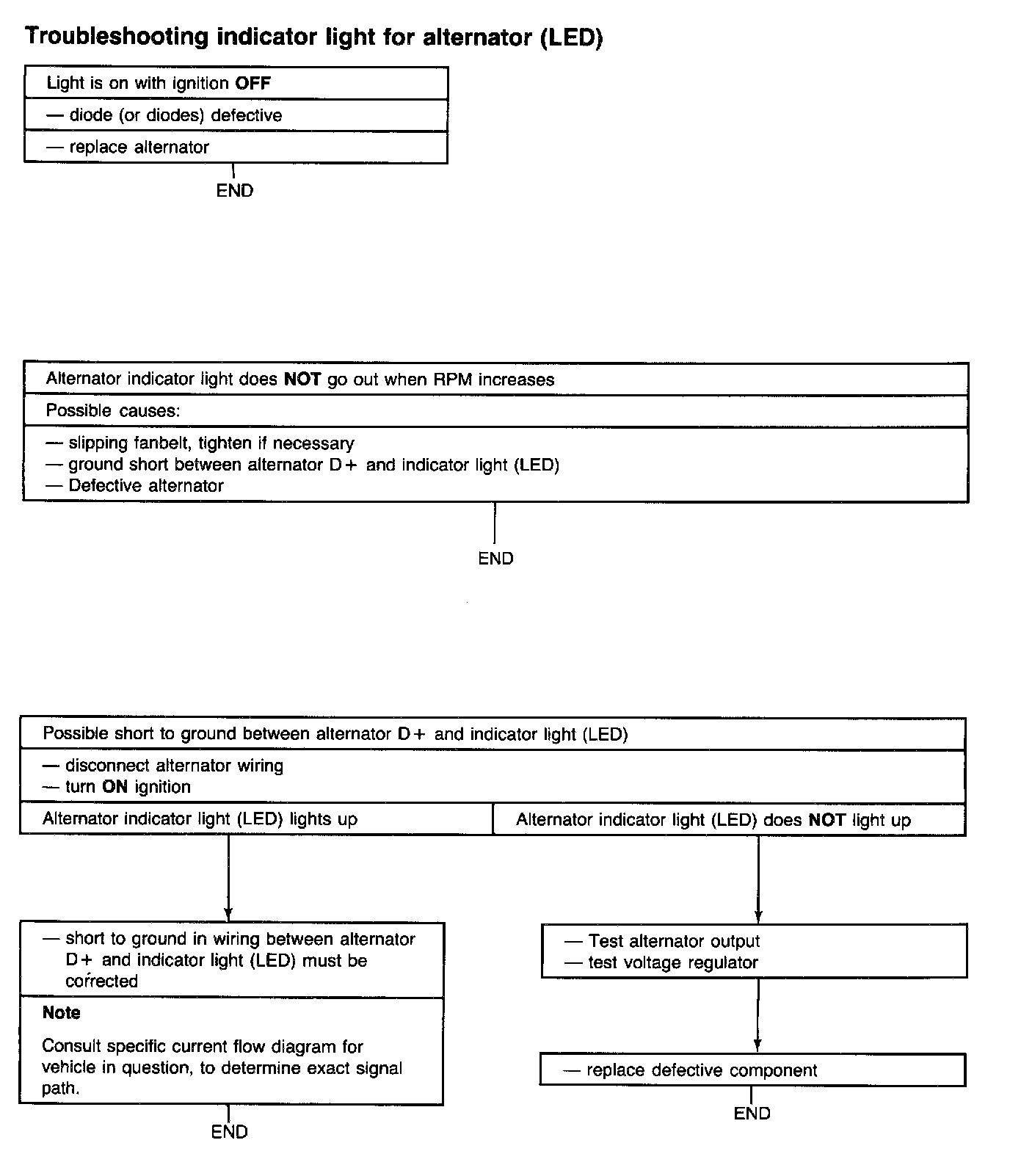

Chart 2 Of 2:
