Relay Box
Relay Box

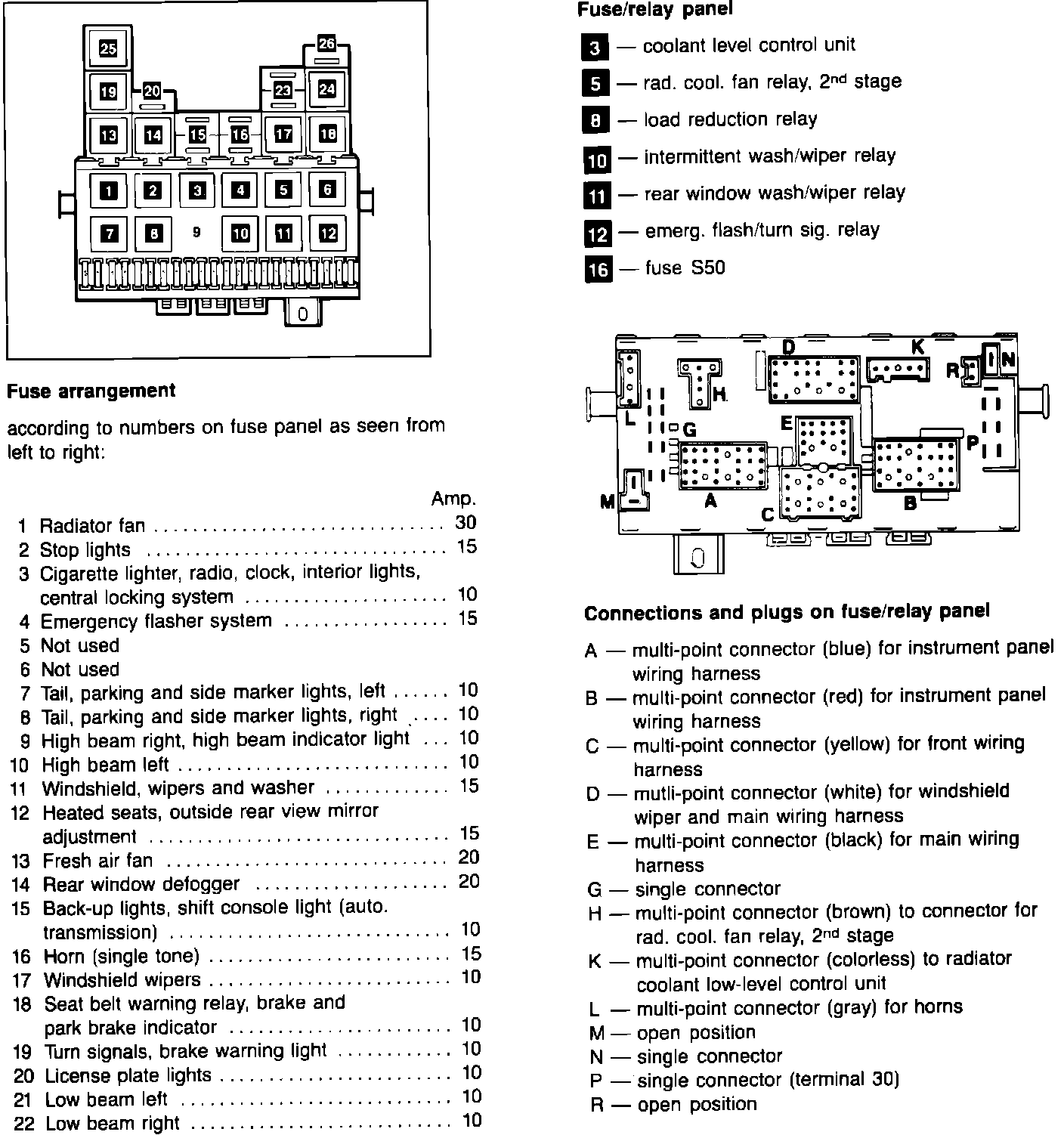

Fig. 104 Fuse/Relay Panel, Vanagon:
Below Left Side Of The Instrument Panel, Behind Access Panel
