Ignition Lock: Service and Repair

STEERING LOCK HOUSING, REMOVING/INSTALLING




CAUTION:
- Before removing the steering wheel, mark the hub and the shaft so that the steering wheel can be reinstalled in exactly the same position.
- The height-adjustable steering column cannot be disassembled. If steering column, column tube, or universal joint is damaged, replace the assembly as a unit.
- When removing and reinstalling steering column switches, make sure wiring is routed along side steering column tube, not pinched between tube and knee bar.

Removing
- remove steering wheel

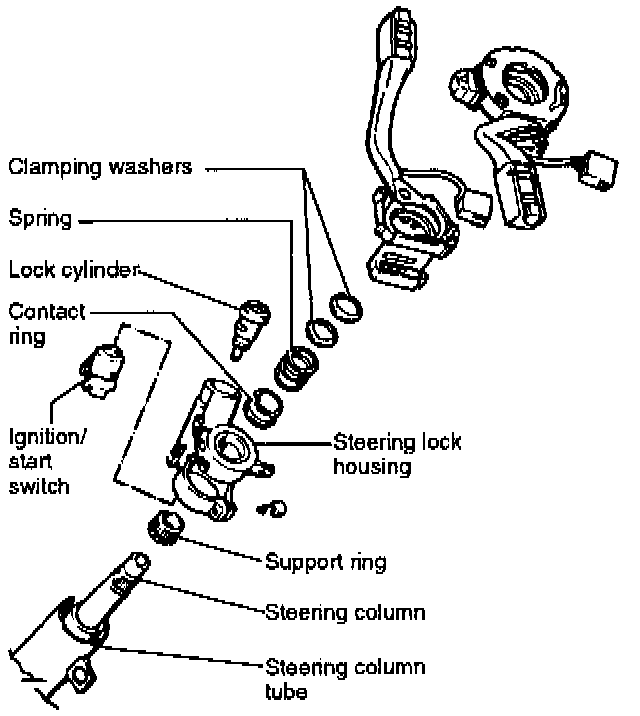

- remove switch securing screws (arrows)
- disconnect switch connectors
- remove turn signal and winshield wiper/washer switch from steering column
- remove washer, spring and support ring from steering column
- remove mounting bolt and remove steering lock housing


Installing
- slide steering lock housing onto steering column and install mounting bolt
- install support ring, spring and washer onto steering column
- using special tool VW 420, drive support ring, spring and washer onto steering column until fully seated

NOTE: If the steering column shaft recedes into steering column tube, thread nut onto shaft and pull shaft out.
