Checking Stall Speed
CHECKING STALL SPEED, 096 TRANSMISSIONChecking
- Connect tachometer (e.g. VAG 1367 engine tester), or read Engine Speed (RPM) in measuring value block with VAG 1551 Scan Tool (ST).
- Hold vehicle stationary with parking brake and foot brake.
- Start engine and place selector lever in "D" position.
- Increase Engine Speed (RPM) briefly (max. 5 seconds), if necessary, repeat test after 20 secs. When doing this the stall speed listed in the table must be attained.
- If the final specified stall speed is not attained, the following malfunctions are probable causes:
Symptom Probable Cause
Stall speed too high: Forward clutch slipping, free-wheel slipping
Stall speed up to 200 RPM too low: Check engine settings
Stall speed more than 200RPM too low: Torque converter malfunctioning
In cases of doubt, the engine settings must always be checked first and, if necessary, corrected.
The transmission must always have the correct torque converter installed.

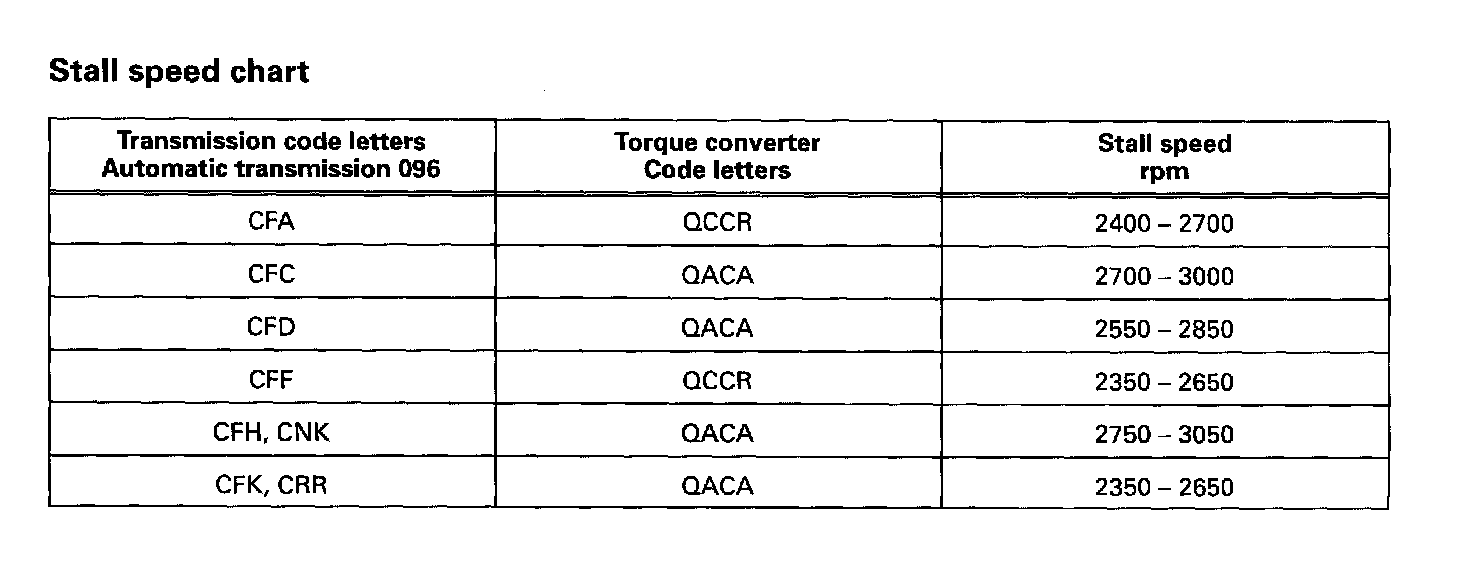

Stall Speed Chart:
