California Vehicles (Digifant I) 38-Pin Connector

Digifant I 38 Pin Control Unit Connector:

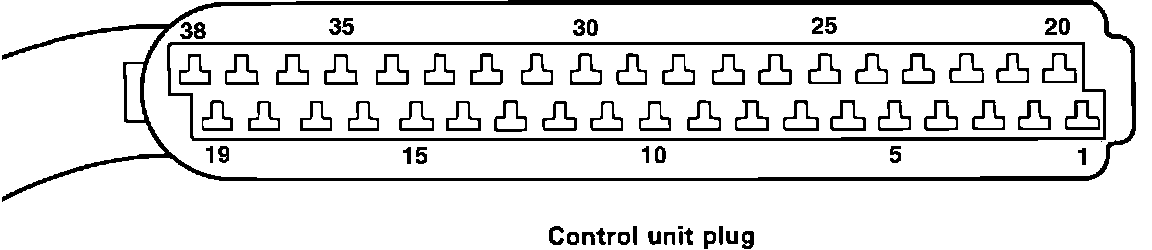

DIGIFANT I ECM TERMINAL I.D.

�k�Digifant I Electrical Tests:

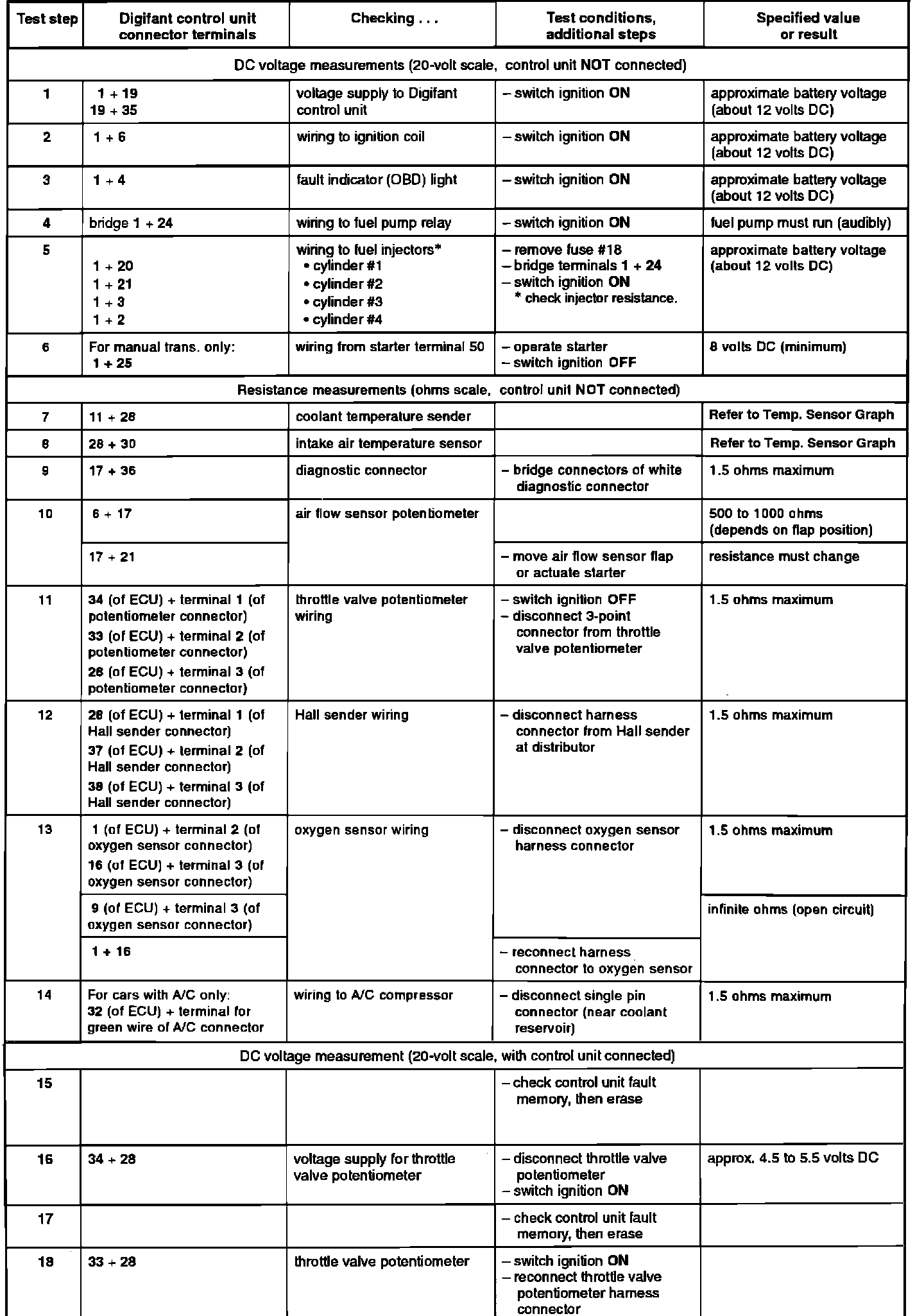

DIGIFANT I PINOUT / TEST CHART





TEMPERATURE SENSOR GRAPH
