Federal Vehicles (Digifant II)

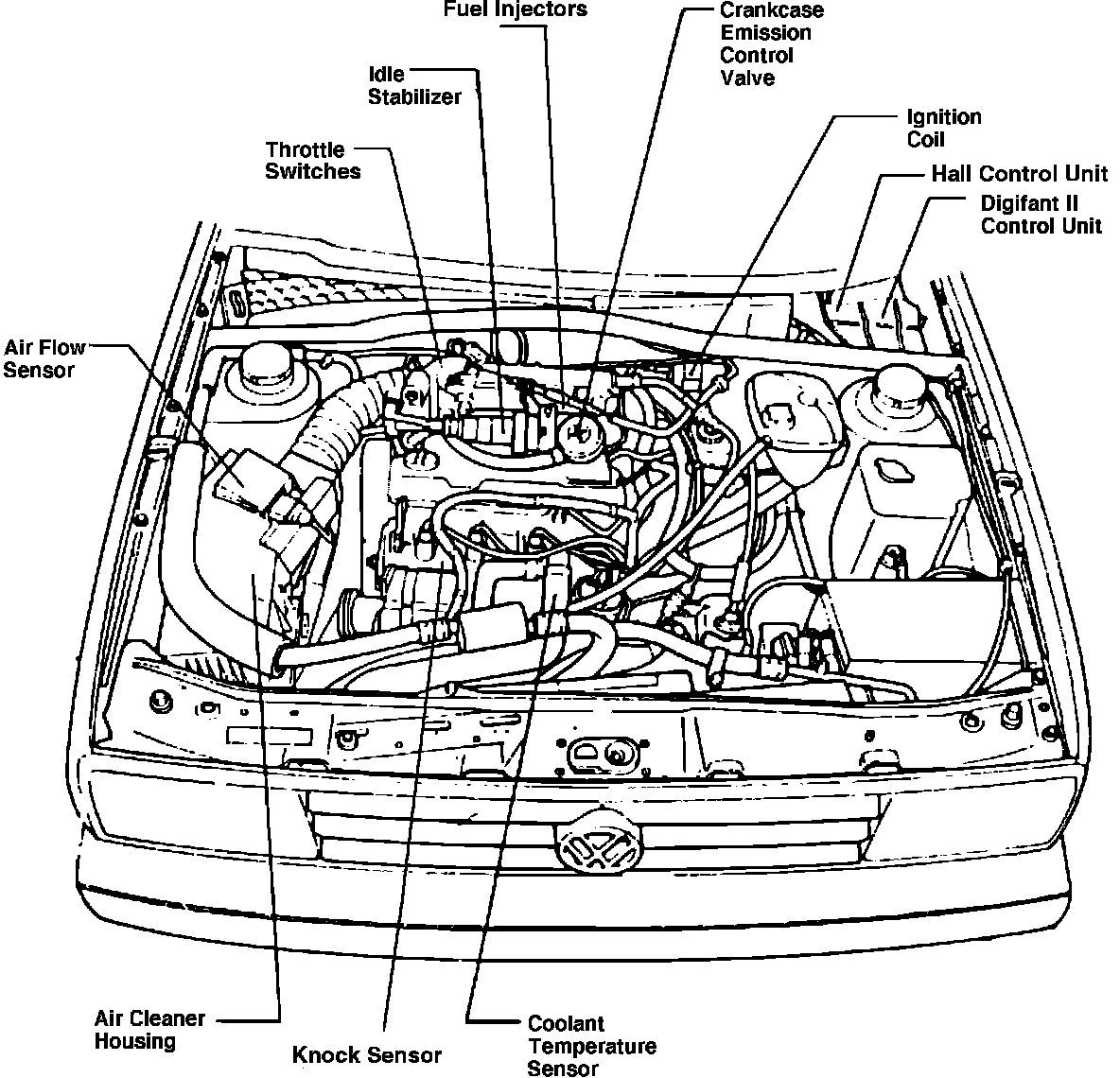

Component Locations:

1. Switch the ignition "OFF".
2. Locate the Digifant control unit, which is under the drip tray at the left rear of the engine compartment.
3. Remove the Hall control unit mounting bracket, which is above the Digifant control unit. (FEDERAL ONLY)
4. Release the harness connector retaining clip.
5. Remove the harness connector.
6. Remove the mounting bolts and lift out the control unit.
7. Reinstall in reverse manner, using care when connecting the harness connector.
