Oil Pressure Sender: Locations

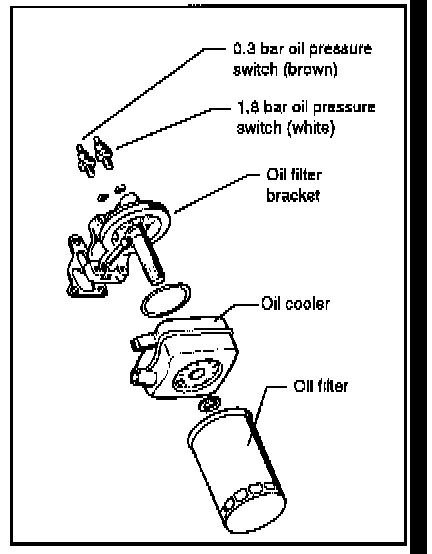

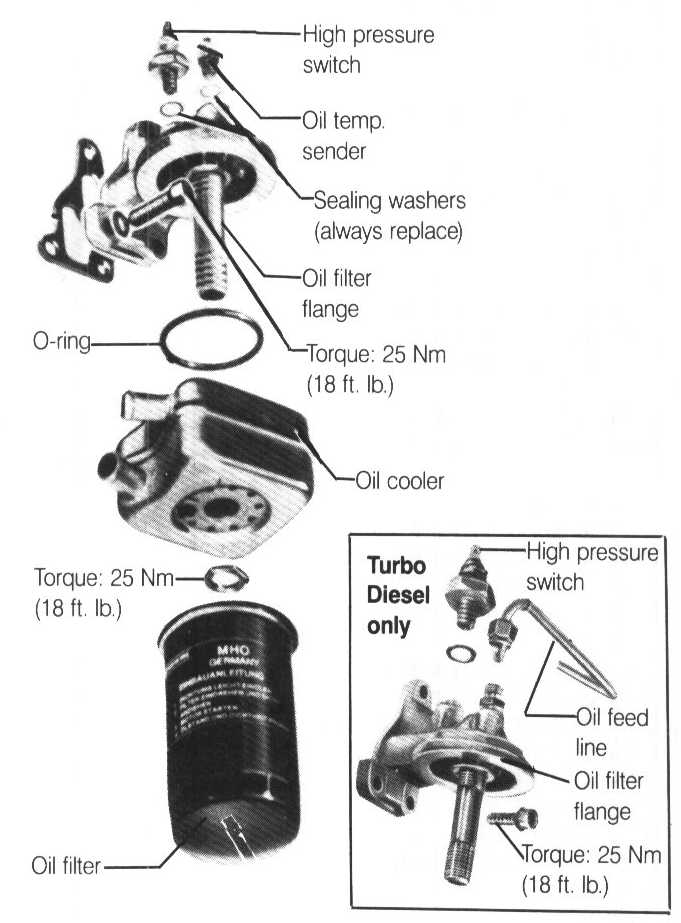

The 0.3 bar pressure switch is located on the oil filter flange and the 1.4 or 1.8 bar pressure switch is on the end of the cylinder head.
On 16-valve engines, both switches are located on the filter flange.
