Engine / Transmission, Adjusting

Tightening torques

axle shaft to flange 45 Nm (33 ft lb)
torque converter to driven plate 35 Nm (26 ft lb)
transmission to engine 75 Nm (55 ft lb)

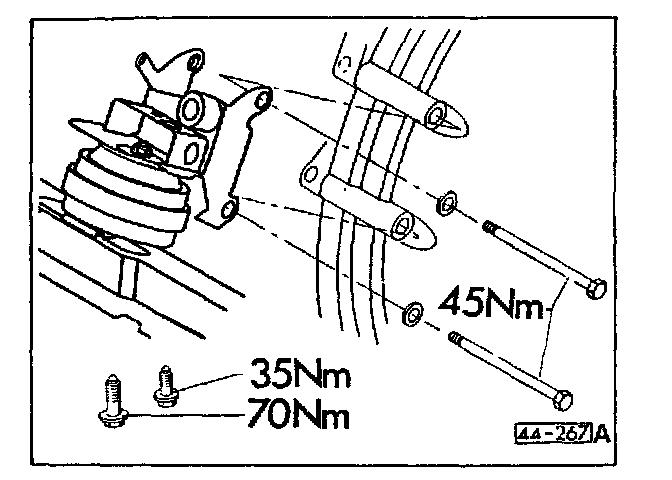

Left Rear Transmission Mount:

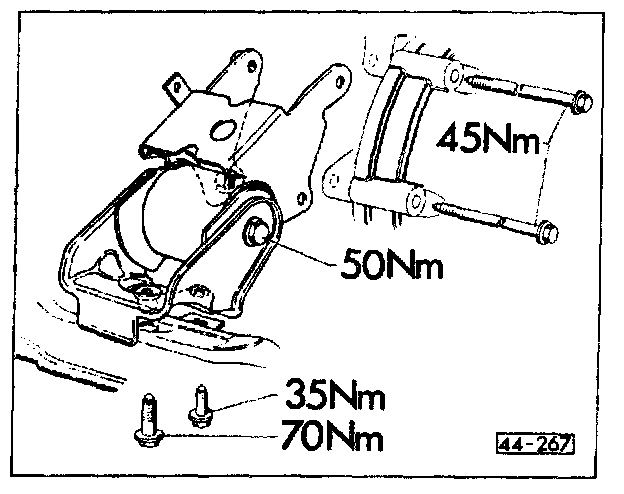

Right Rear Engine Mount:

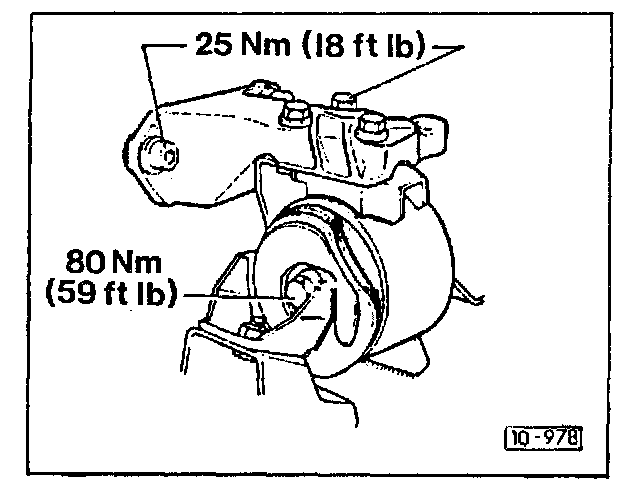

Front Engine / Transmission Mount (Early Version):

Front Engine / Transmission Mount (Late Version):

Engine/Transmission, adjusting

Note
Adjustment is necessary if the engine and transmission have been removed, or if bonded rubber bushing was loosened.

To install centering bolts for the bonded rubber bushings and to loosen mounting brackets, shake transmission and re-torque bolts.
