A/T Shift Handle - Replacement Part/Installation

91vw01

Subject: New Shift Handle, Installation Procedure


Model(s): Golf, Jetta 1990, 1991 m.y.


Group: 37

Number: 91-01

Date: Jan. 31, 1991


A new shift handle, for automatic transmission (010 type shift selector) is available for use as a replacement part.

Installation Procedure

^ Remove old handle, Part No. 447 713 139A 01C

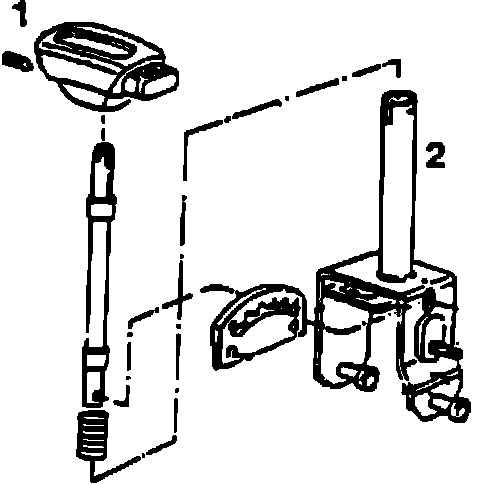

^ Install handle (1), Part No. 357 713 139 01C on selector lever.

^ Tighten set screw to make indentation on shift selector (2) and loosen set screw.

^ Remove handle and file a flat region in selector lever (2) at location established in previous step.

^ Install handle (1) and tighten set screw to 0.8 +/- 0.2 Nm ( 0.6 in.lb.).


CAUTION Part numbers are for reference only. Always check with your Parts Department for latest information.
