Vanagon 2WD L4-2109cc 2.1L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
System Specifications
Automatic Transmission Design and Specifications

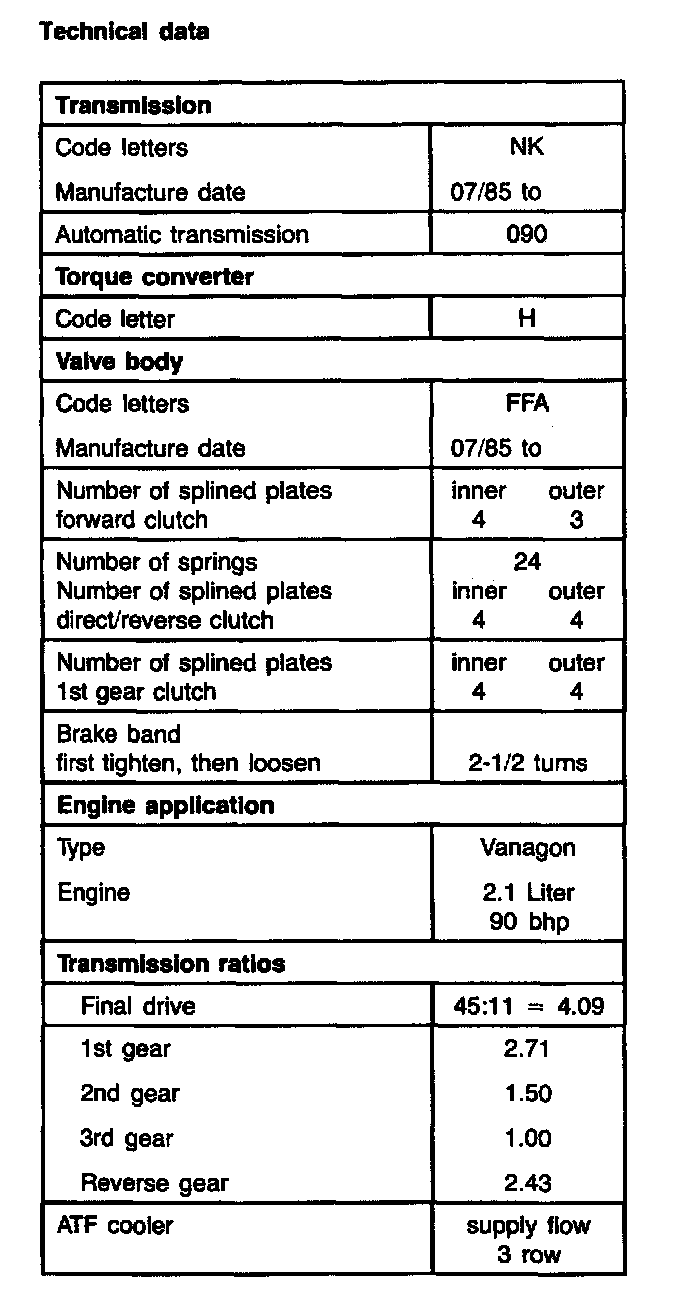

Technical Data, 090:

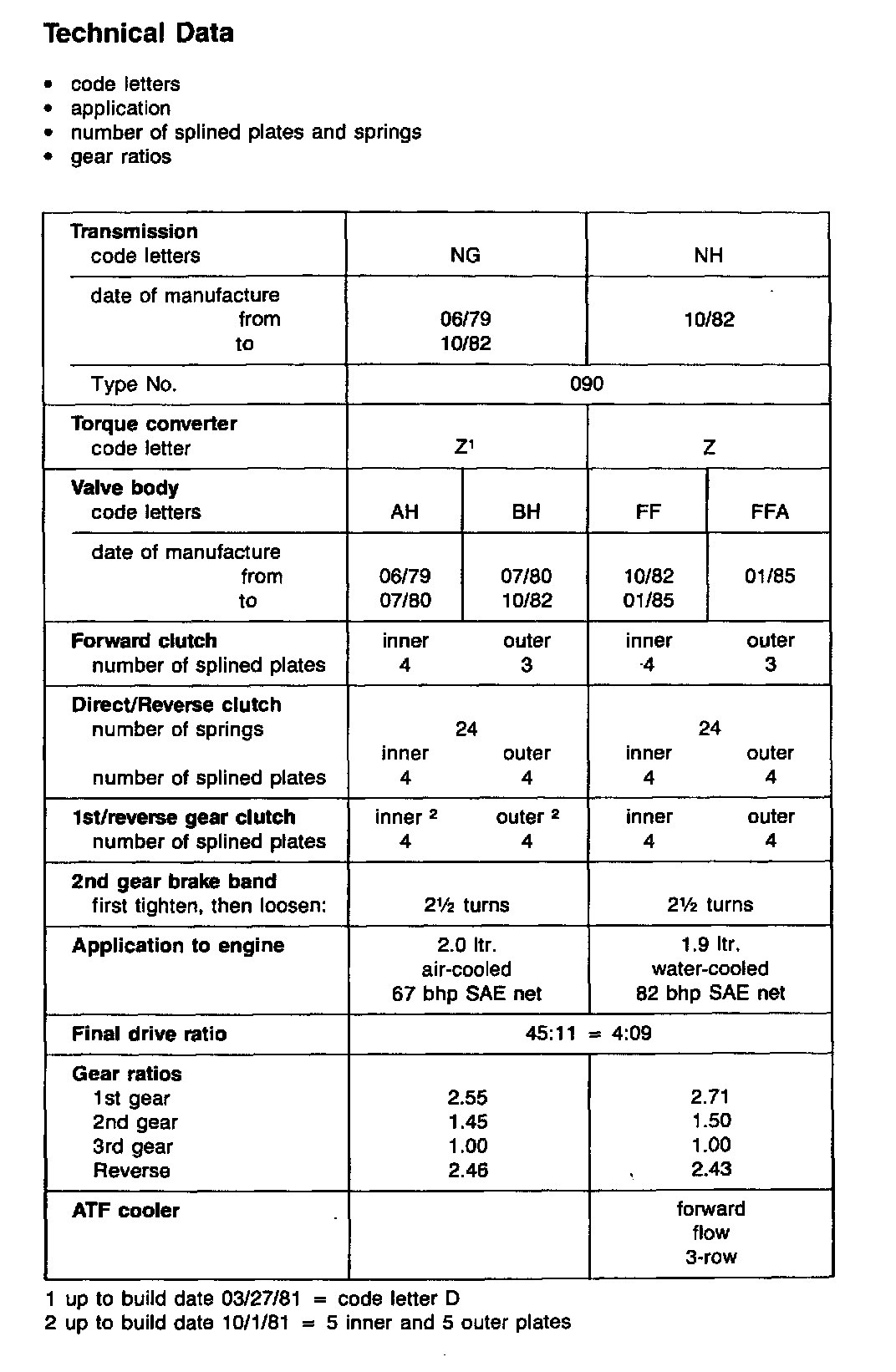

Technical Data:

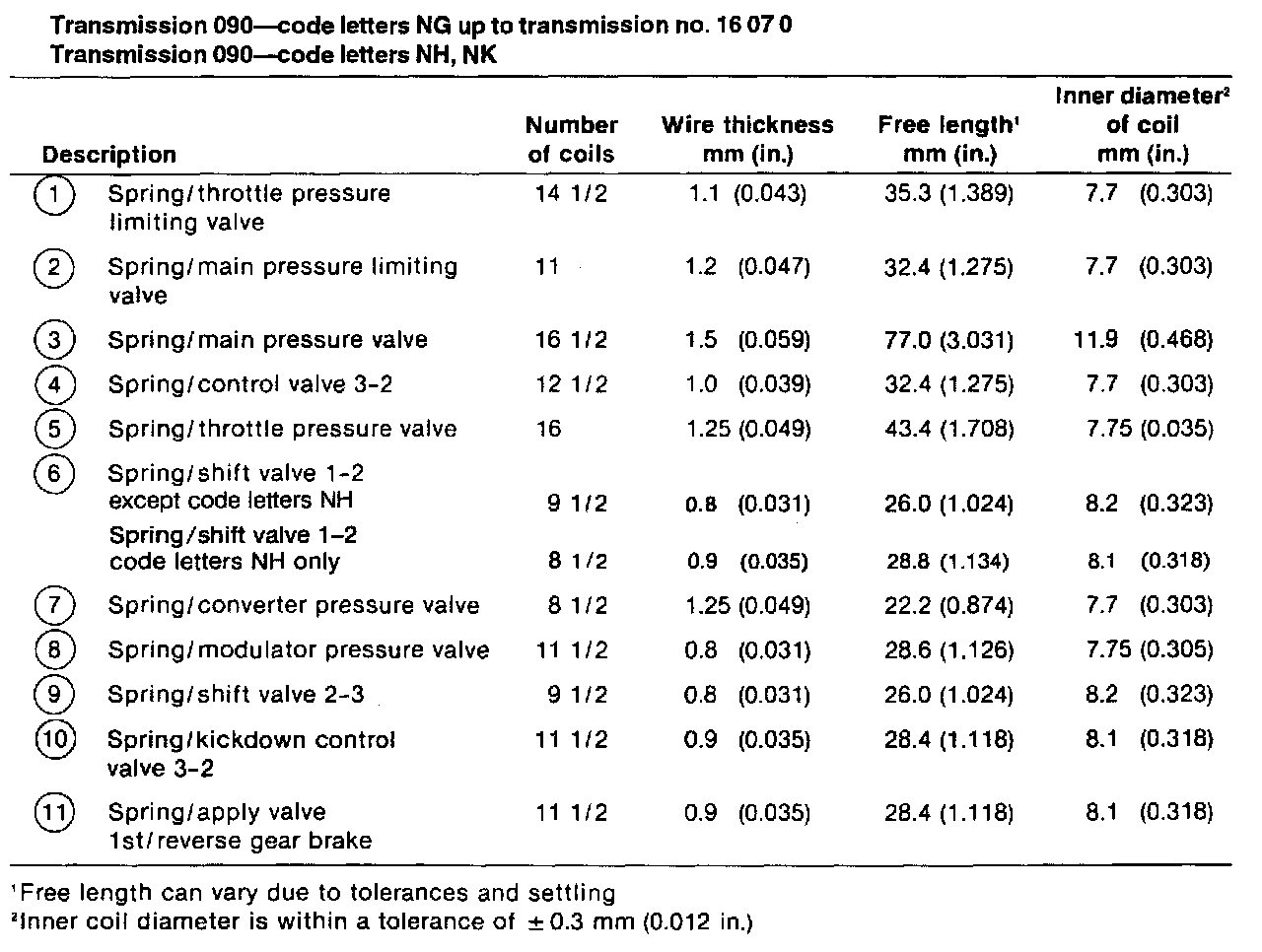

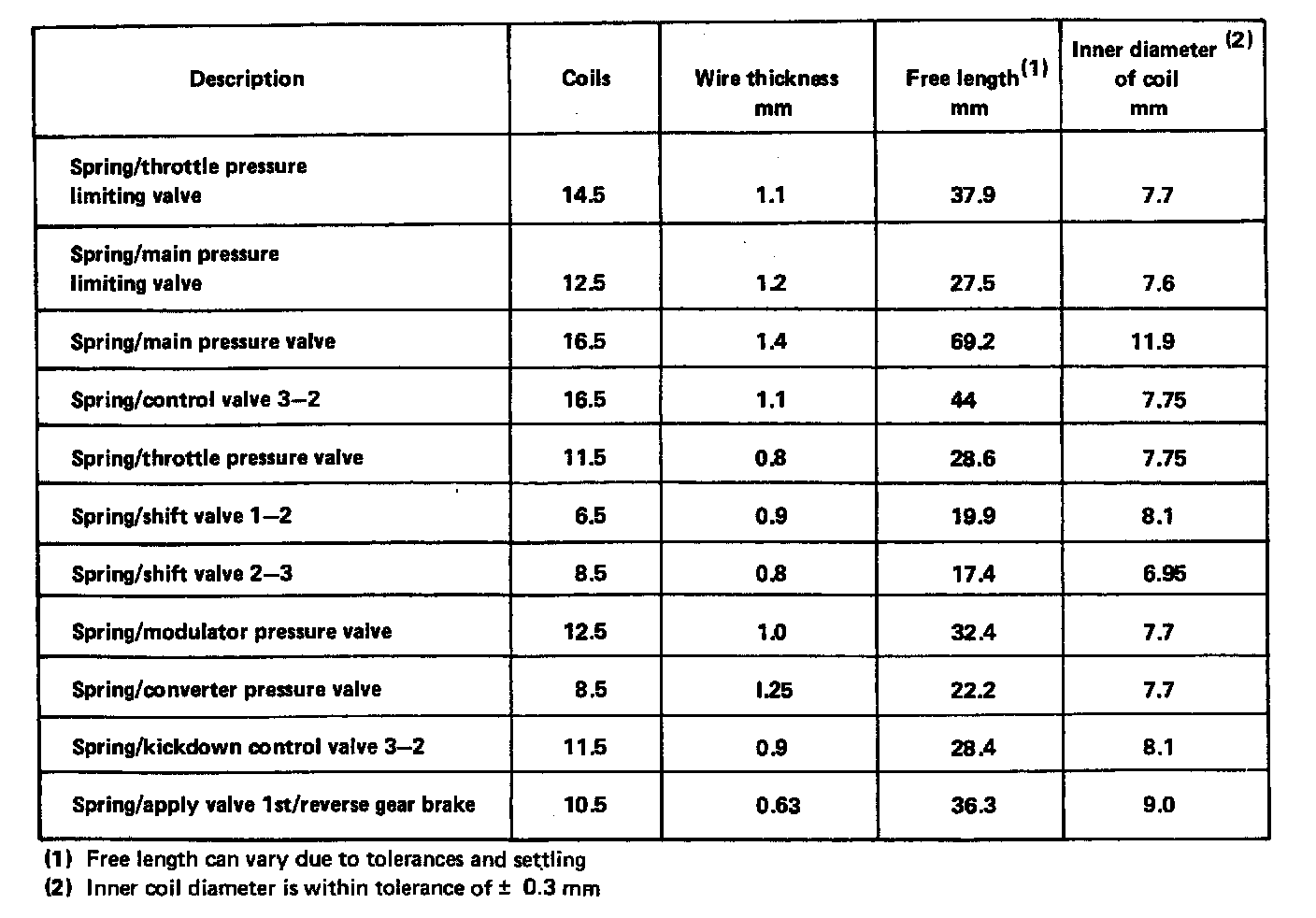

Design Specifications:
Transmission Modifications:
