Camber

1. If necessary remove right-hand horn protective plate.

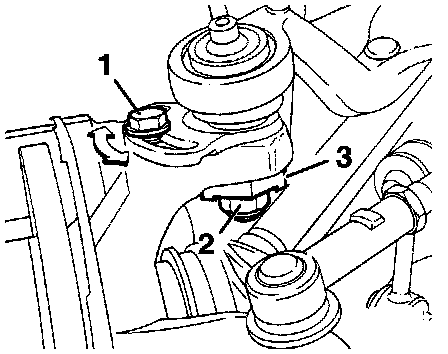

2. Loosen bolt -1-.

Note:
To loosen and tighten with wheel installed turn steering as necessary.

For ease of illustration the bolted connection is shown without the wheel installed.

3. Loosen nut -2-.

4. Turn eccentric bushing -3- with special tool 3252 until correct specification is achieved.

5. Tighten bolt -1- and nut -2- again.

Tightening torques:

Bolt -1- : 60 Nm (44 ft lb)

Nut -2- : 110 Nm (81 ft lb)
