Valve, Intake/Exhaust

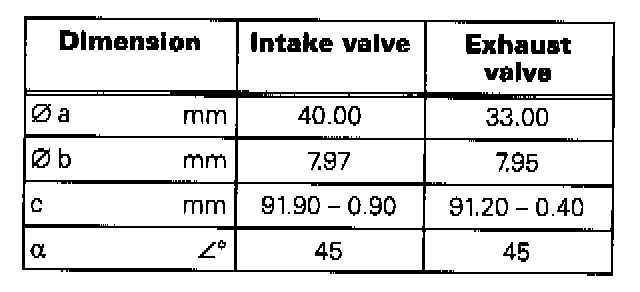

VALVE DIMENSIONS:

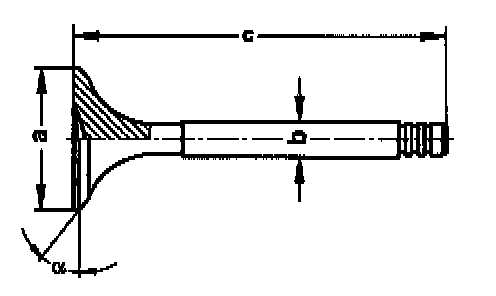

Fig. 4 Valve dimensions:








NOTE: Valves must not be reworked. Only lapping-in is permitted.
