Camber

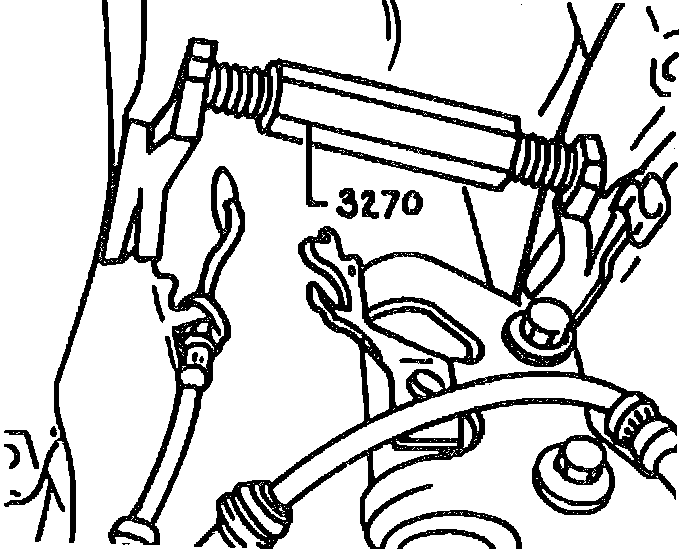

Fig. 1 Adjusting Camber:
1.
Remove brake hose from bracket on strut, then install tool 3270 or equivalent between wheel and body near strut and tighten slightly,
Fig. 1. 2.
Loosen strut to wheel bearing housing bolts, then adjust camber by turning tool spindle.
Slight diagonal positioning of tool may be necessary.
