Cylinder Bore Diameter

Cylinder Bores, Checking

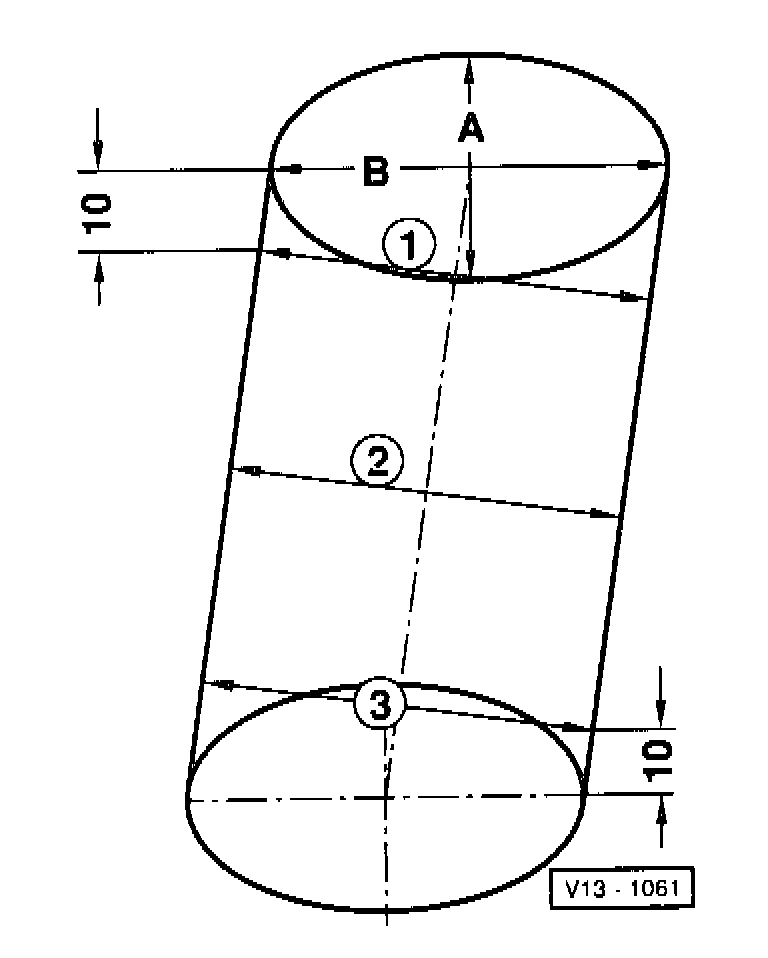

Fig. 4:

- Measure bores at 3 locations in both directions -A- across the engine and -B- in line with crankshaft.

- Use inside dial gauge 50 to 100 mm

- Deviation from nominal dimension max. 0.08 mm.

CAUTION: Do not measure cylinder bores when the cylinder block is mounted in a repair stand or adapter bracket 3269 as incorrect measurements would be possible.

Piston And Cylinder Dimensions
