Windshield Wiper System
CAUTION: Always disconnect the battery ground (GND) strap before working on the electrical system.

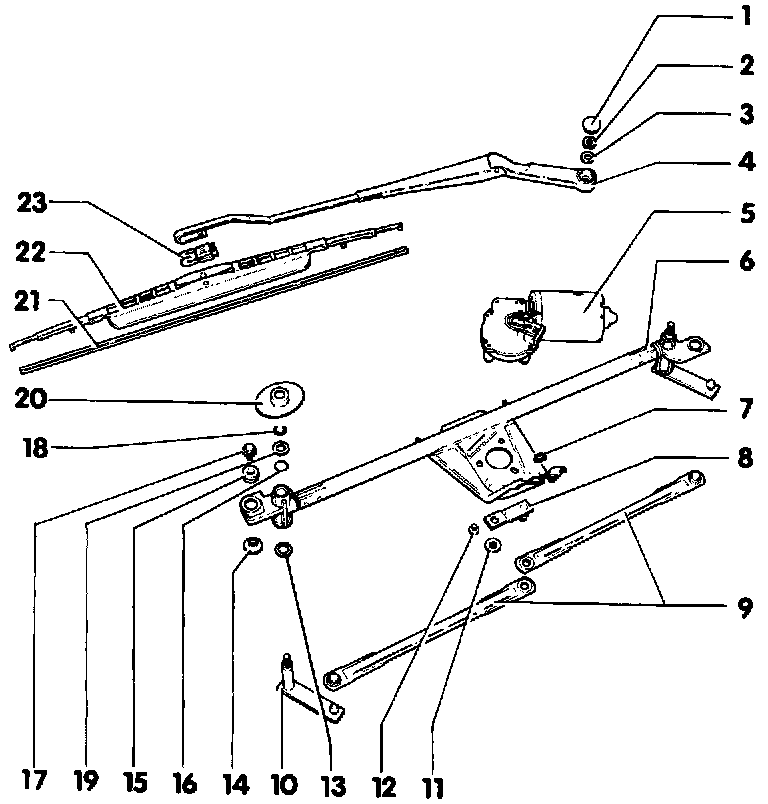

1- Cap
2- M8 nut (20 Nm / 15 ft lb)
3- Washer
4- Wiper arm
5- Windshield wiper motor -V-. (When Removing, first remove wiper frame -6-.)
6- Wiper frame
7- M6 nut
8- Crank
9- Relay rods
10- Wiper shaft
11- M8 nut (20 Nm / 15 ft lb)
12- M6 bolt (5 Nm / 44 in lb)
13- Spring washer
14- Washer
15- Rubber seal
16- 0-ring
17- M6 bolt (5 Nm / 44 in lb)
18- Snap ring
19- Washer
20- Cap
21- Rubber wiper insert
22- Wiper blade
23- Retaining spring
