Engine Controls - Revised Readiness Code Procedure: Overview

Group: 01

Number: 96-02

Date: Feb. 14, 1996

File this Technical Bulletin in Repair Manual No: W42 011 294 121

Subject:
Readiness Code, Creating

Model(s):
Golf, Jetta, Cabrio w/OBD II
2.0 Liter, Engine Code ABA 1996 -->

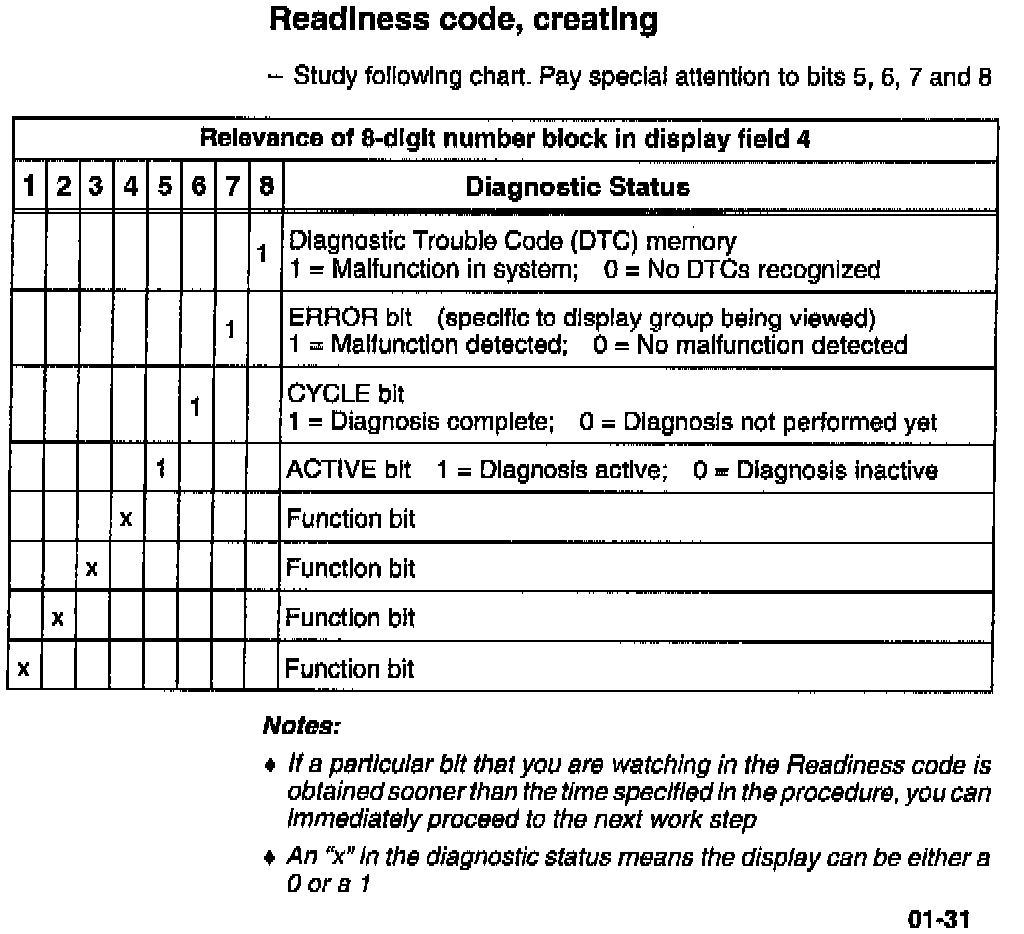

This bulletin contains a revised procedure for creating the Readiness Code. This information supercedes the procedure found in your current Repair Manual and will be integrated during the next Repair Manual update.

Note:
Work Steps 5 (Leakdown Detection pump checking) and 7 (Secondary Air Injection) do NOT apply to current production vehicles for model year 1996.








To display Readiness Codes the VAG 1551 Scan Tool must meet the following requirements:

^ Must have a 5.0 (or higher) Program Card installed

^ Must be properly encoded with the Workshop Code
