Windows: Testing and Inspection

Required for Troubleshooting:
^ Multimeter Fluke 83 (US1119)
^ Connector test kit VW 1594
^ Valid wiring diagram

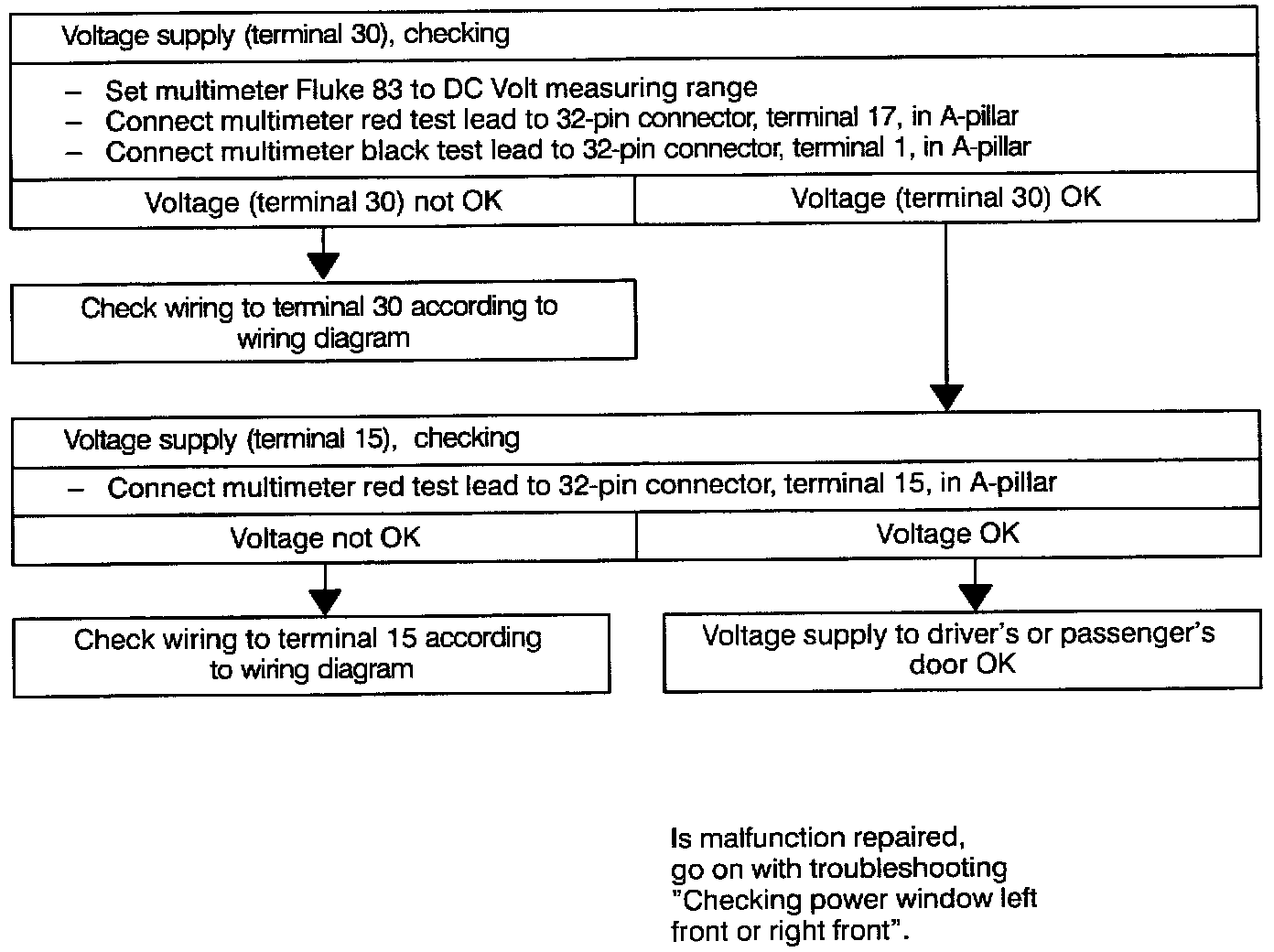

Troubleshooting - Checking Power Window Left And Right Front Without Function:

Power Window Left and Right Front Without Function

Test Conditions:
^ Battery voltage OK
^ Power window circuit breaker S43 OK
^ Fuse No. 16 (10A), on fuse/relay panel OK
^ Mechanical windows OK

Preparation for troubleshooting:
- Switch ignition off.
- Disconnect 32-pin connector (driver's side on left A-pillar, passenger's side on right A-pillar).
- Start troubleshooting on driver's side. Continue on passenger's side, if necessary.

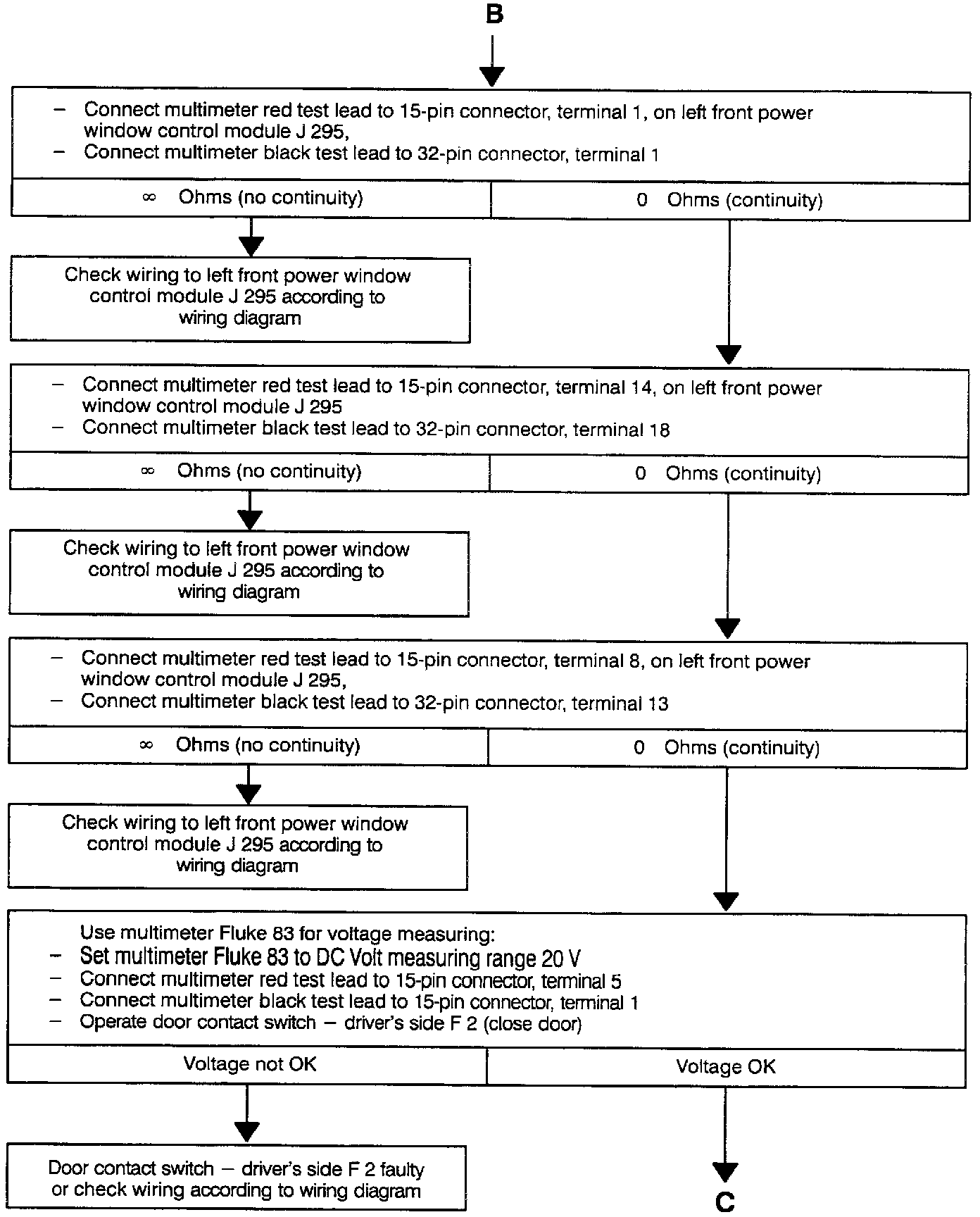

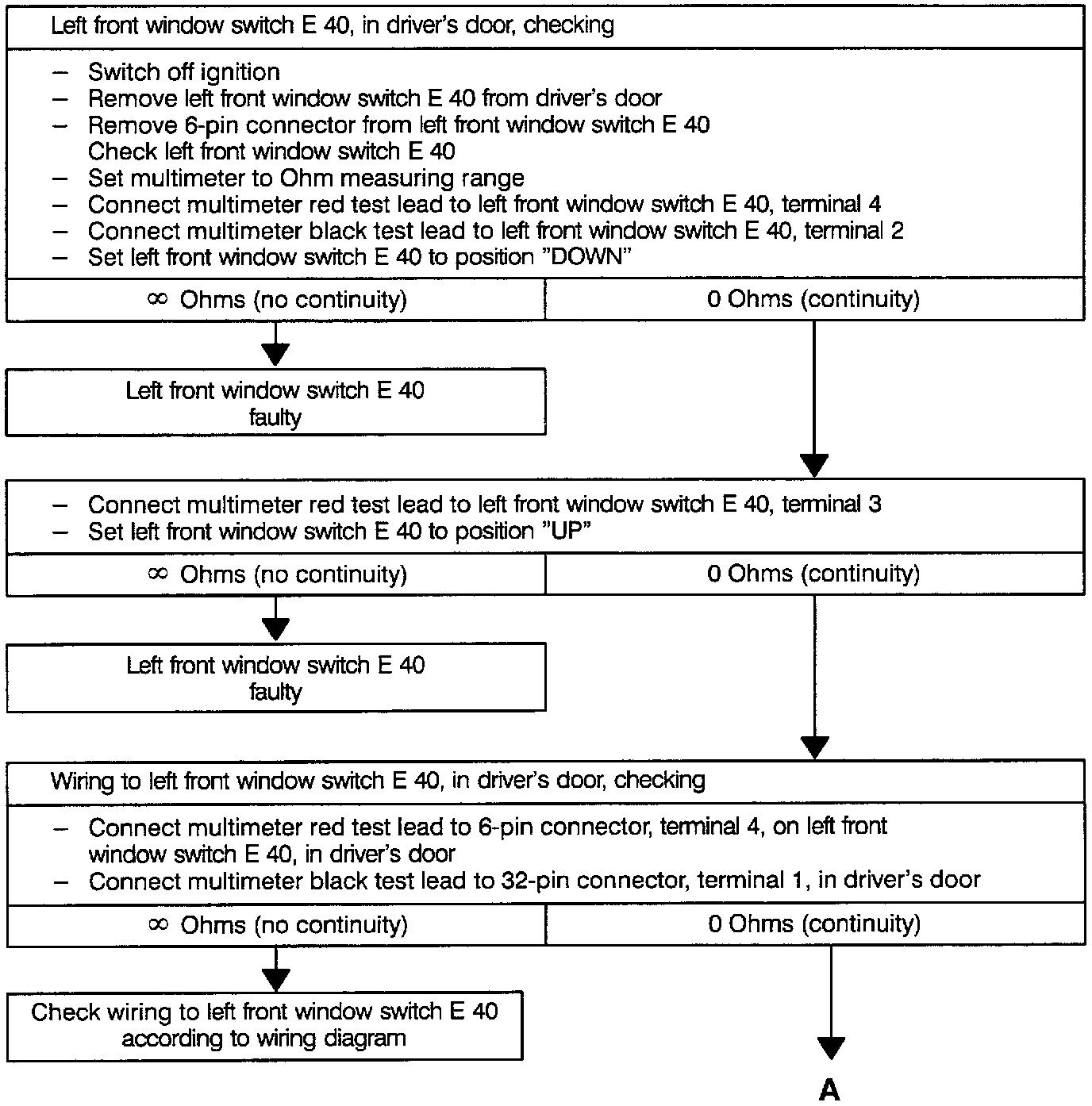

Troubleshooting - Checking Power Window Left Front Without Function (Part 1 Of 4):

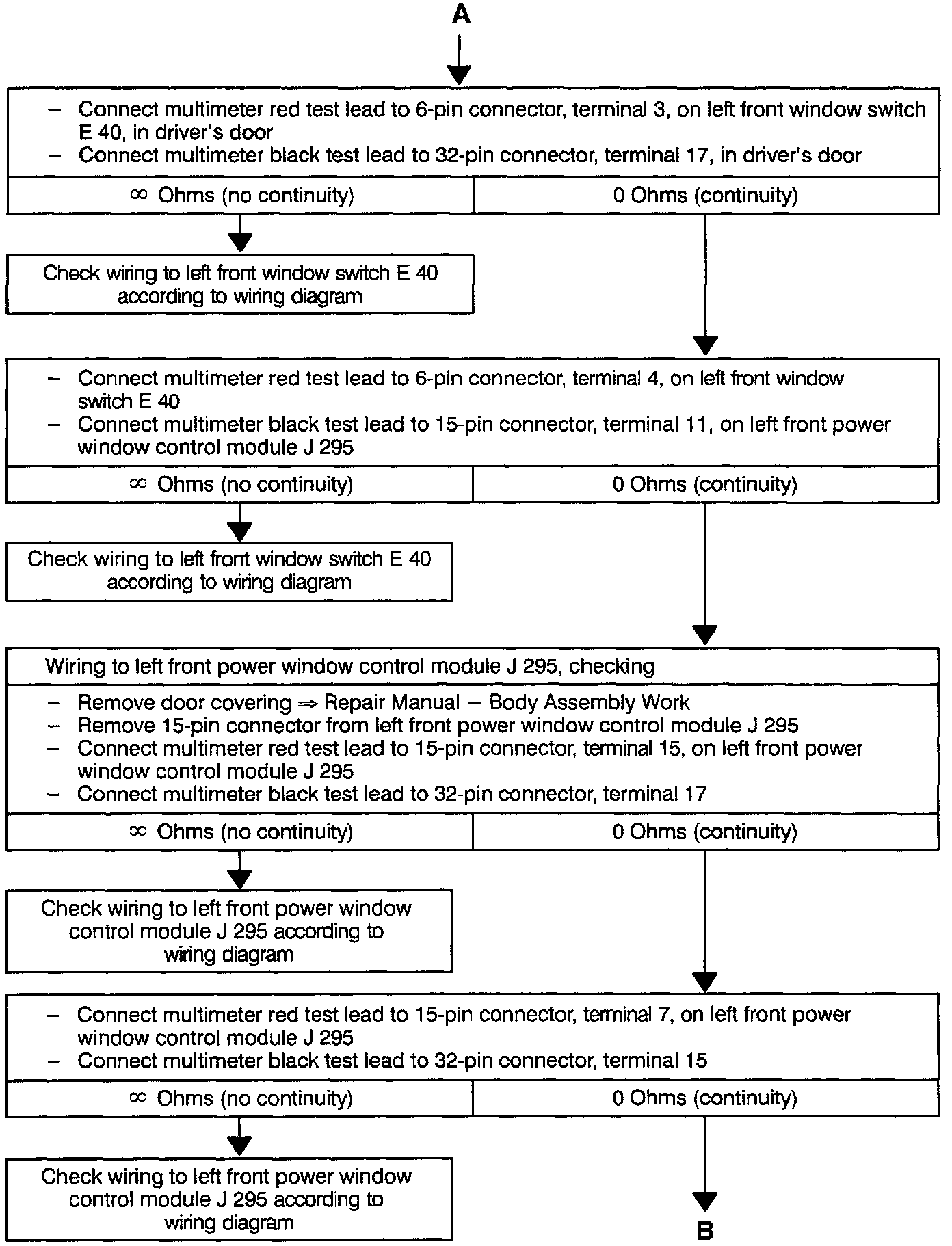

Troubleshooting - Checking Power Window Left Front Without Function (Part 2 Of 4):

Troubleshooting - Checking Power Window Left Front Without Function (Part 3 Of 4):

Troubleshooting - Checking Power Window Left Front Without Function (Part 4 Of 4):

Power Window Left Front Without Function

Test Conditions:
^ Battery voltage OK
^ Power window circuit breaker S43 OK
^ Fuse No. 16 (10A), on fuse/relay panel OK
^ Mechanical windows OK
^ Power windows in all other doors OK

NOTE: To connect multimeter Fluke 83 use connector test kit VW 1594.

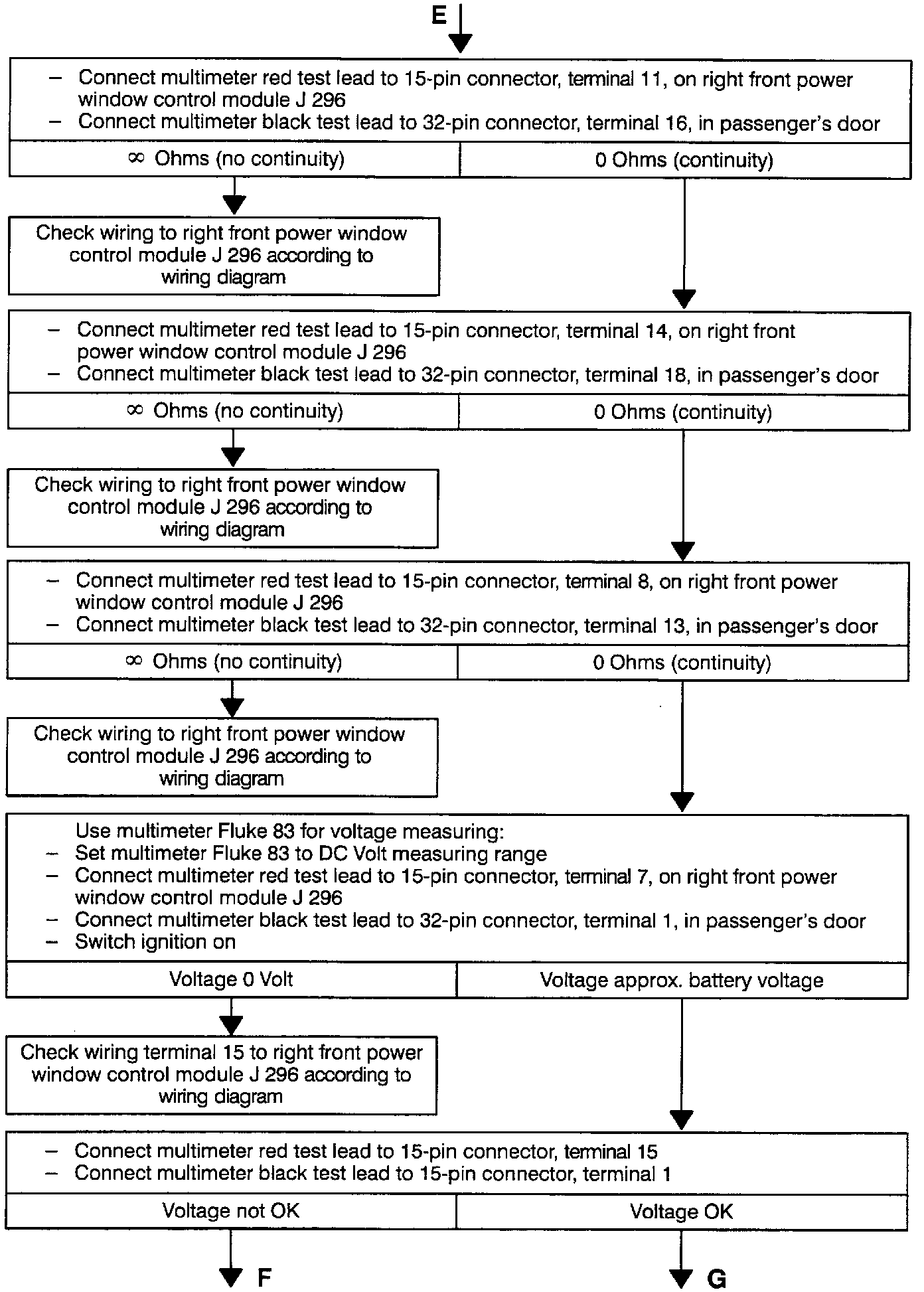

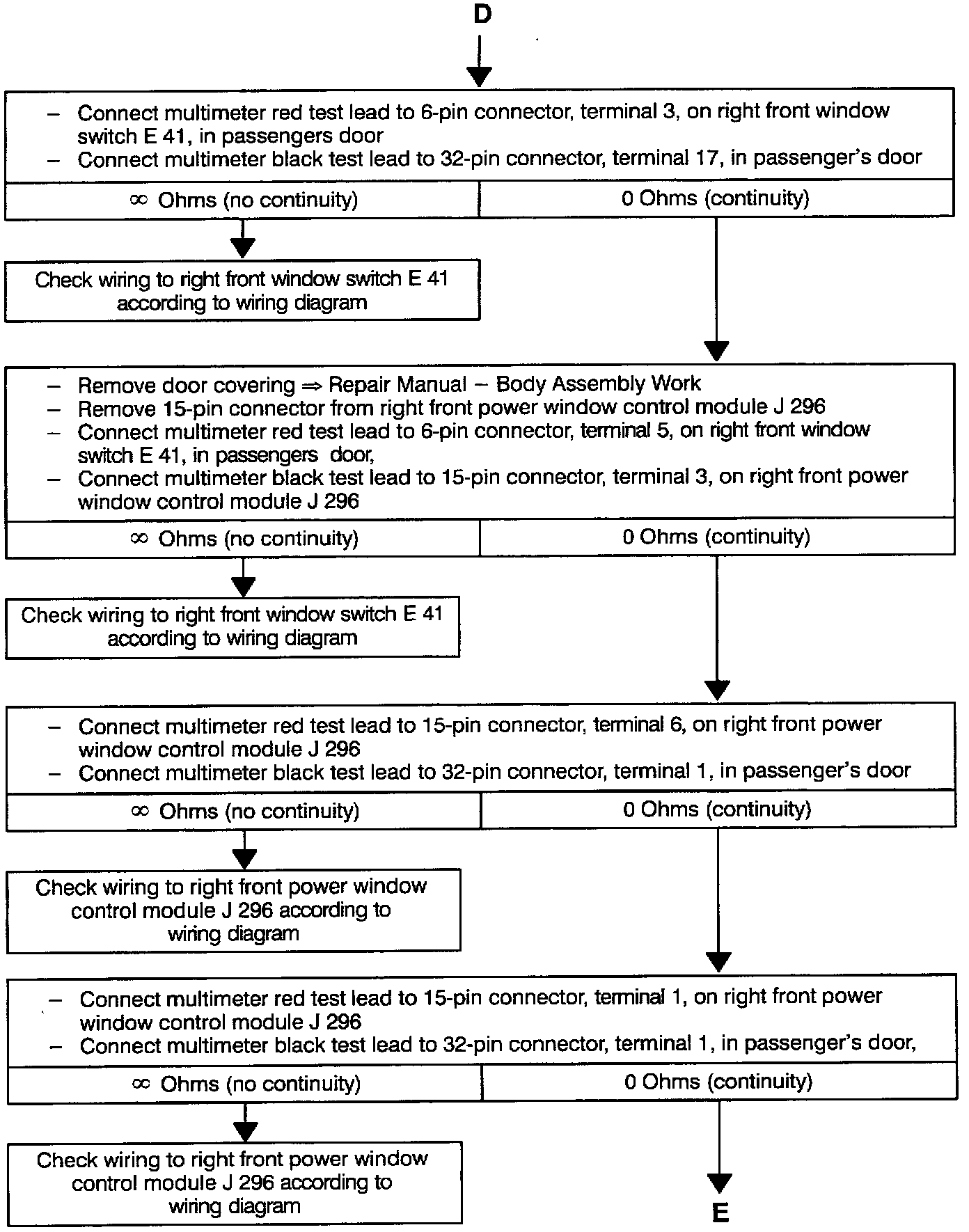

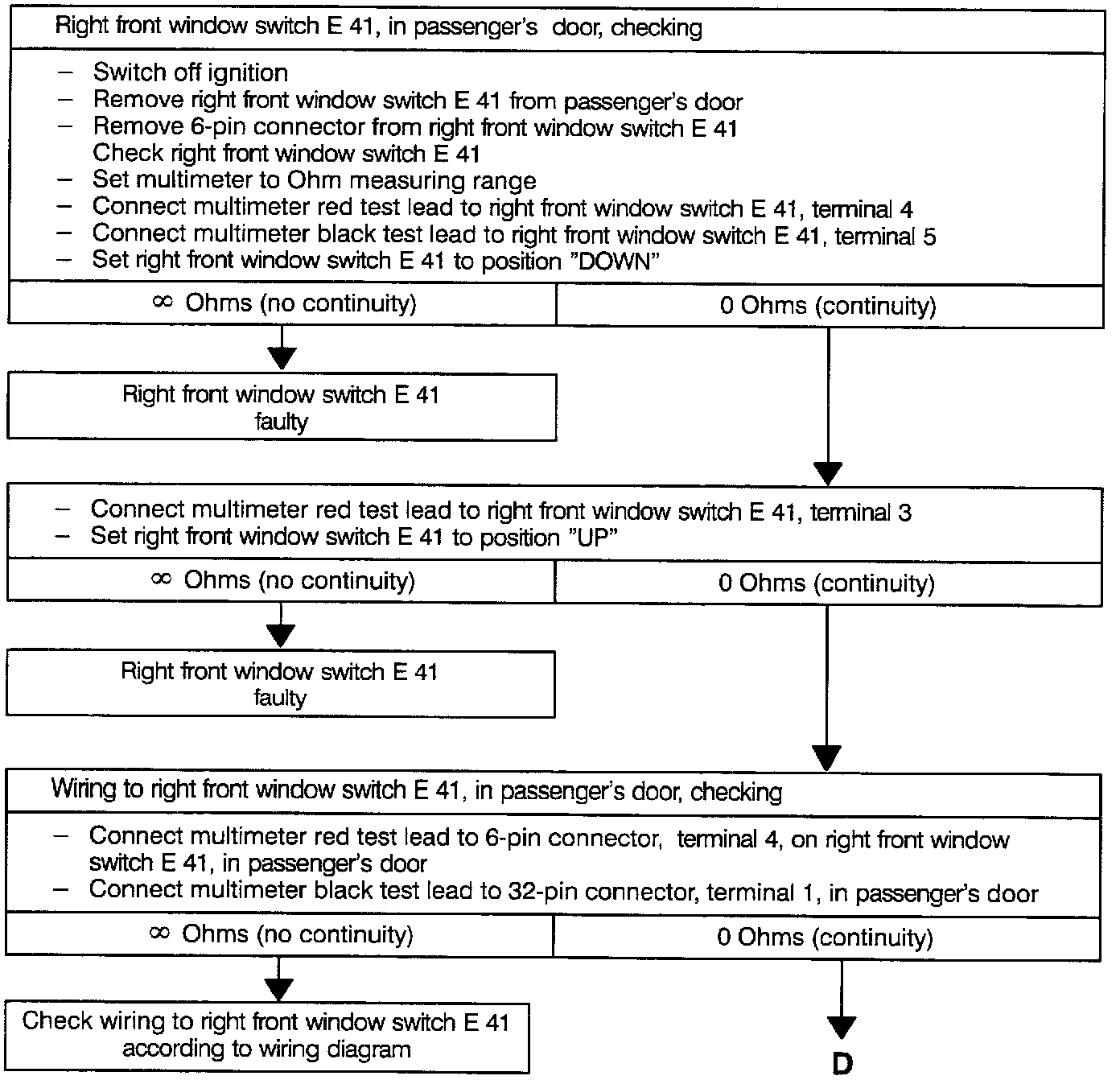

Troubleshooting - Checking Power Window Right Front Without Function (Part 1 Of 4):

Troubleshooting - Checking Power Window Right Front Without Function (Part 2 Of 4):

Troubleshooting - Checking Power Window Right Front Without Function (Part 3 Of 4):

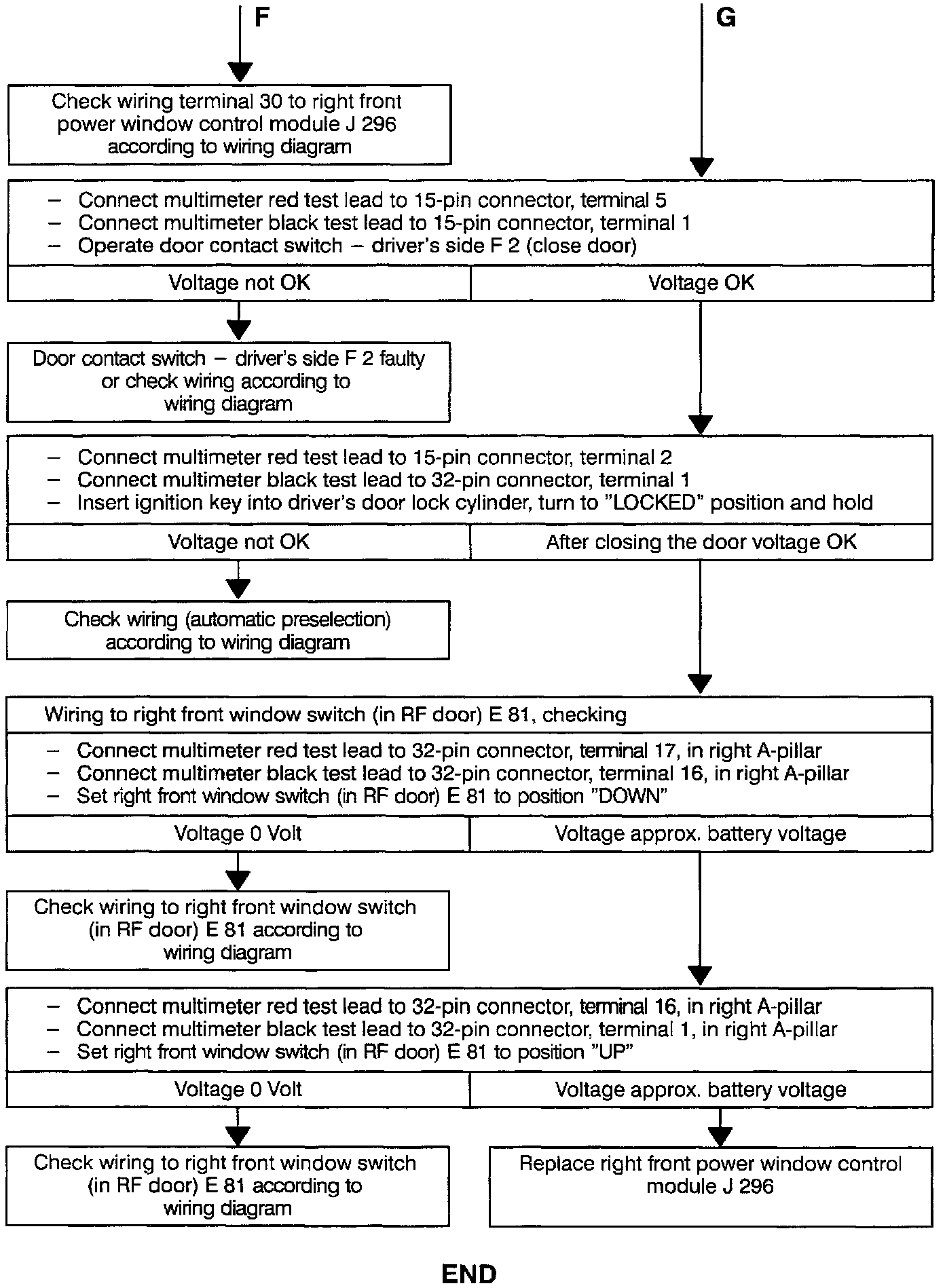

Troubleshooting - Checking Power Window Right Front Without Function (Part 4 Of 4):

Power Window Right Front Without Function

Test Conditions:
^ Battery voltage OK
^ Power window circuit breaker S43 OK
^ Fuse No. 16 (10A), on fuse/relay panel OK
^ Mechanical windows OK
^ Power windows in all other doors OK

NOTE: To connect multimeter Fluke 83 use connector test kit VW 1594.

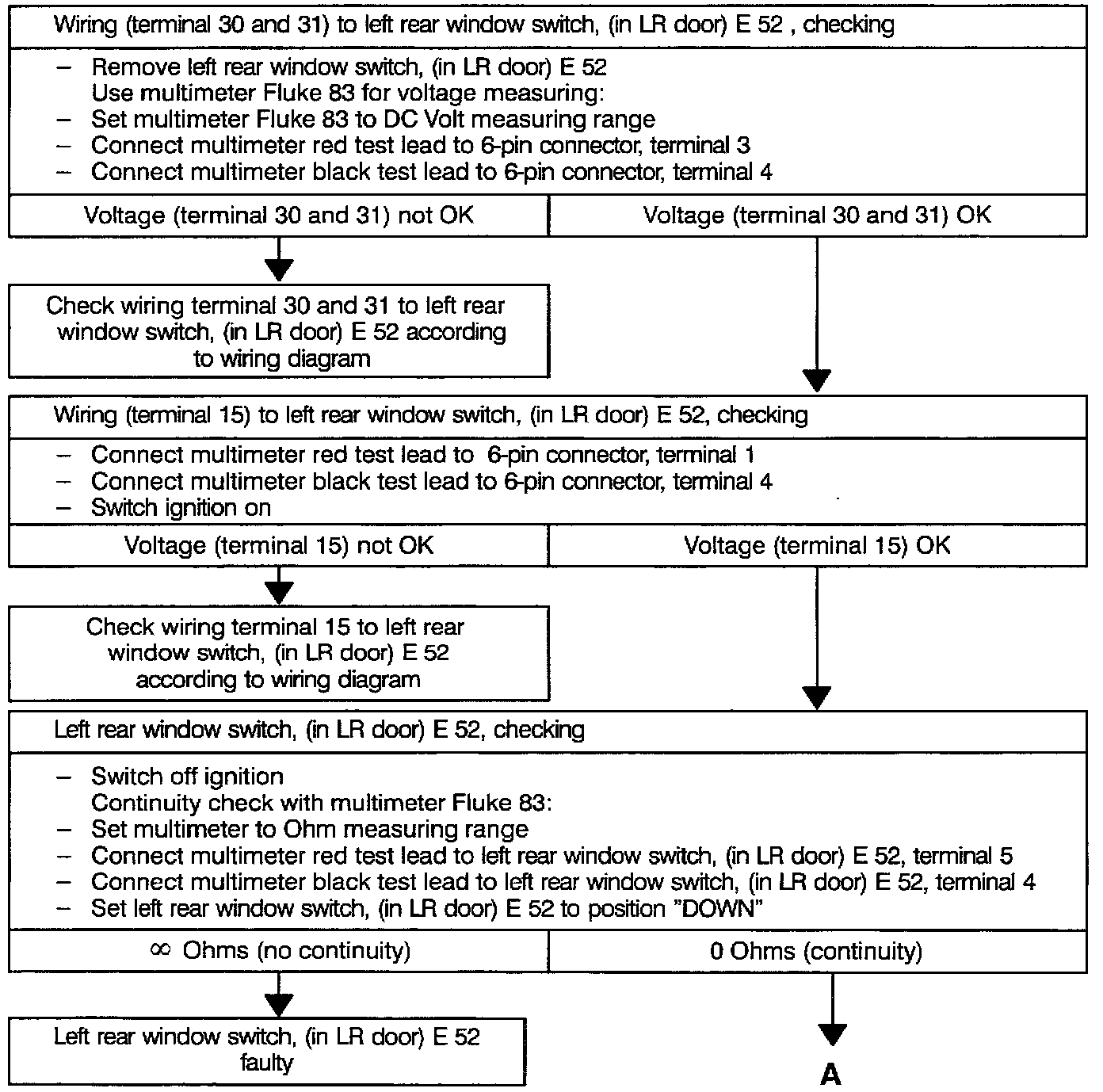

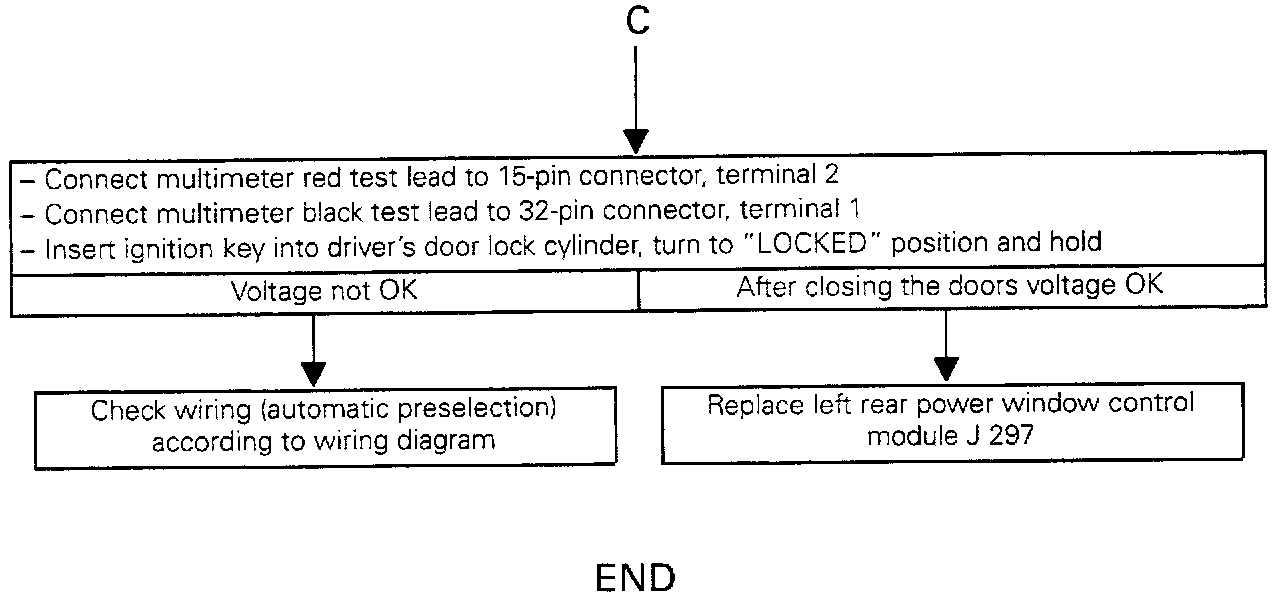

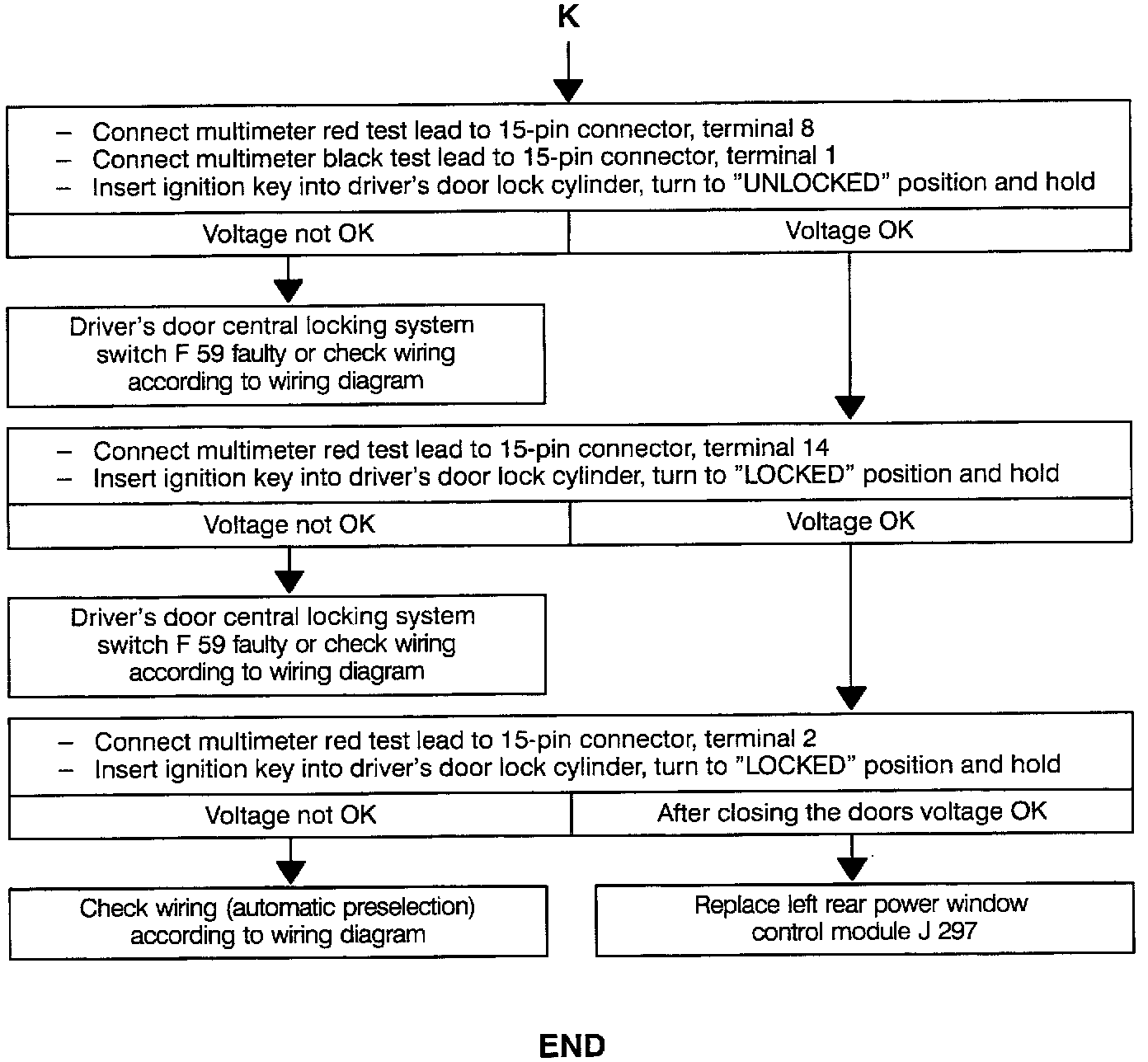

Troubleshooting - Checking Power Window Left Rear Without Function (Part 1 Of 4):

Troubleshooting - Checking Power Window Left Rear Without Function (Part 2 Of 4):

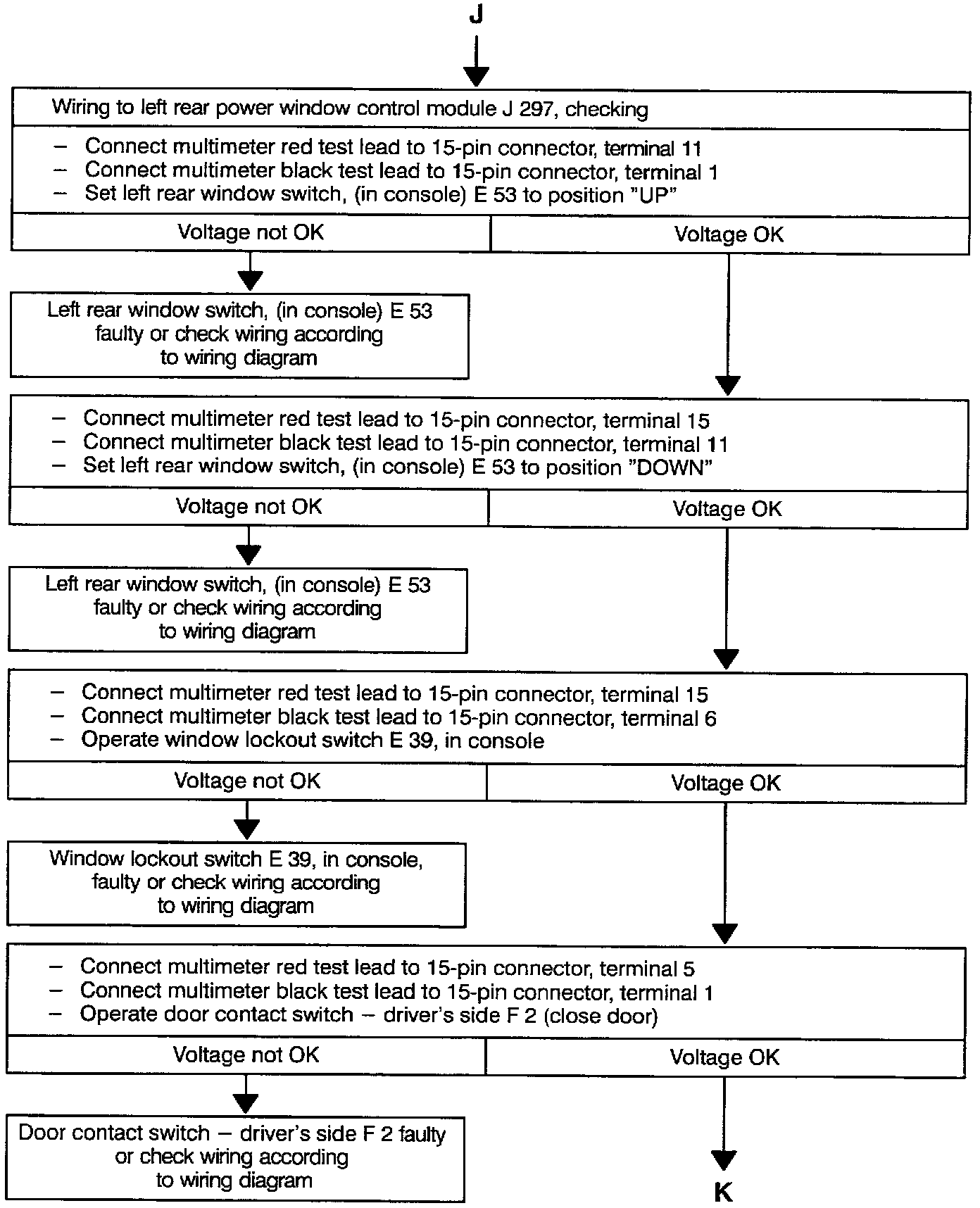

Troubleshooting - Checking Power Window Left Rear Without Function (Part 3 Of 4):

Troubleshooting - Checking Power Window Left Rear Without Function (Part 4 Of 4):

Power Window Left Rear Without Function

Test Conditions:
^ Battery voltage OK
^ Power window circuit breaker S43 OK
^ Fuse No. 16 (10A), on fuse/relay panel OK
^ Mechanical windows OK
^ Power windows in all other doors OK
^ 21-pin connector, in B-pillar, correct connected.

NOTE: To connect multimeter Fluke 83 use connector test kit VW 1594.

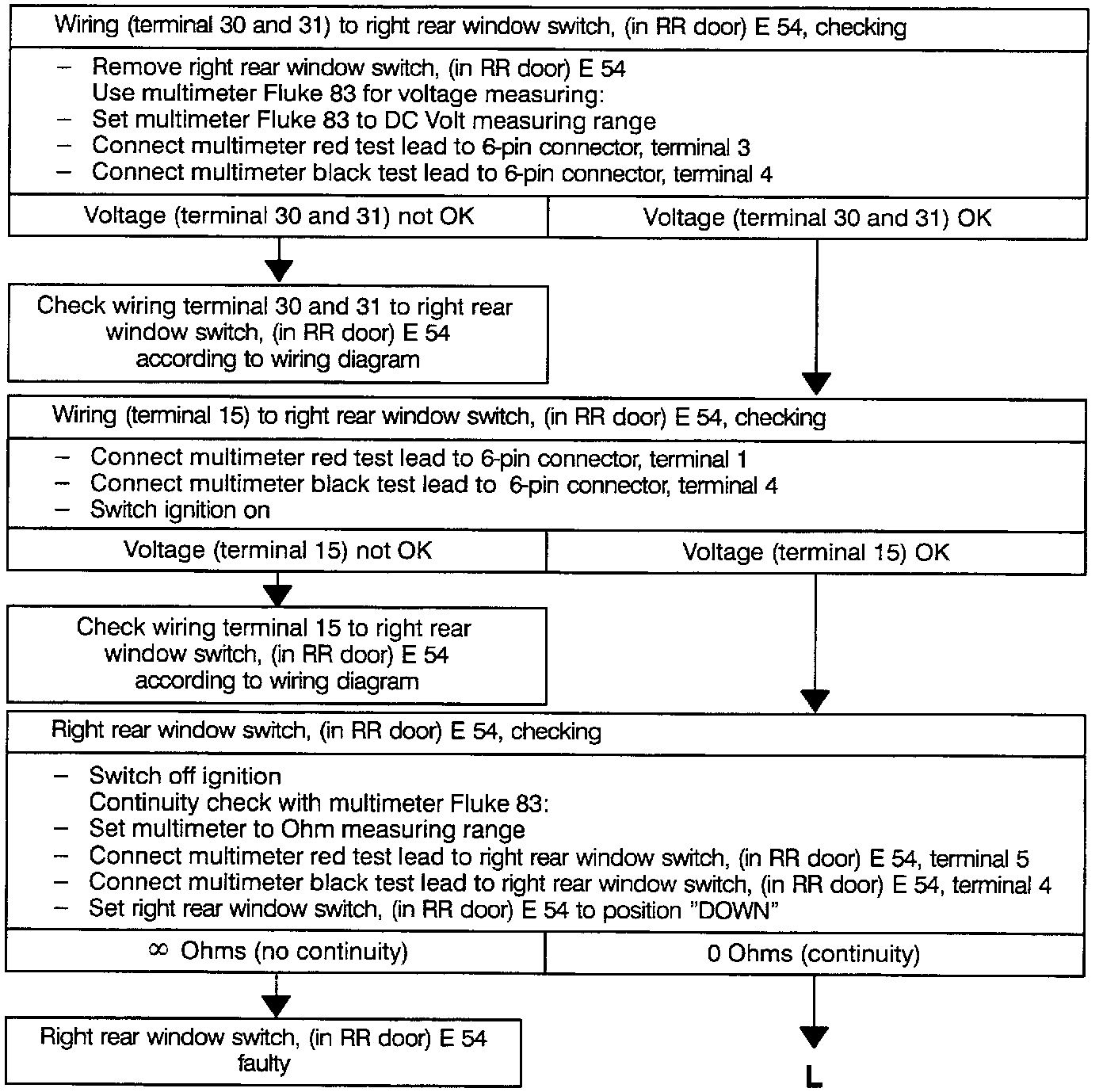

Troubleshooting - Checking Power Window Right Rear Without Function (Part 1 Of 4):

Troubleshooting - Checking Power Window Right Rear Without Function (Part 2 Of 4):

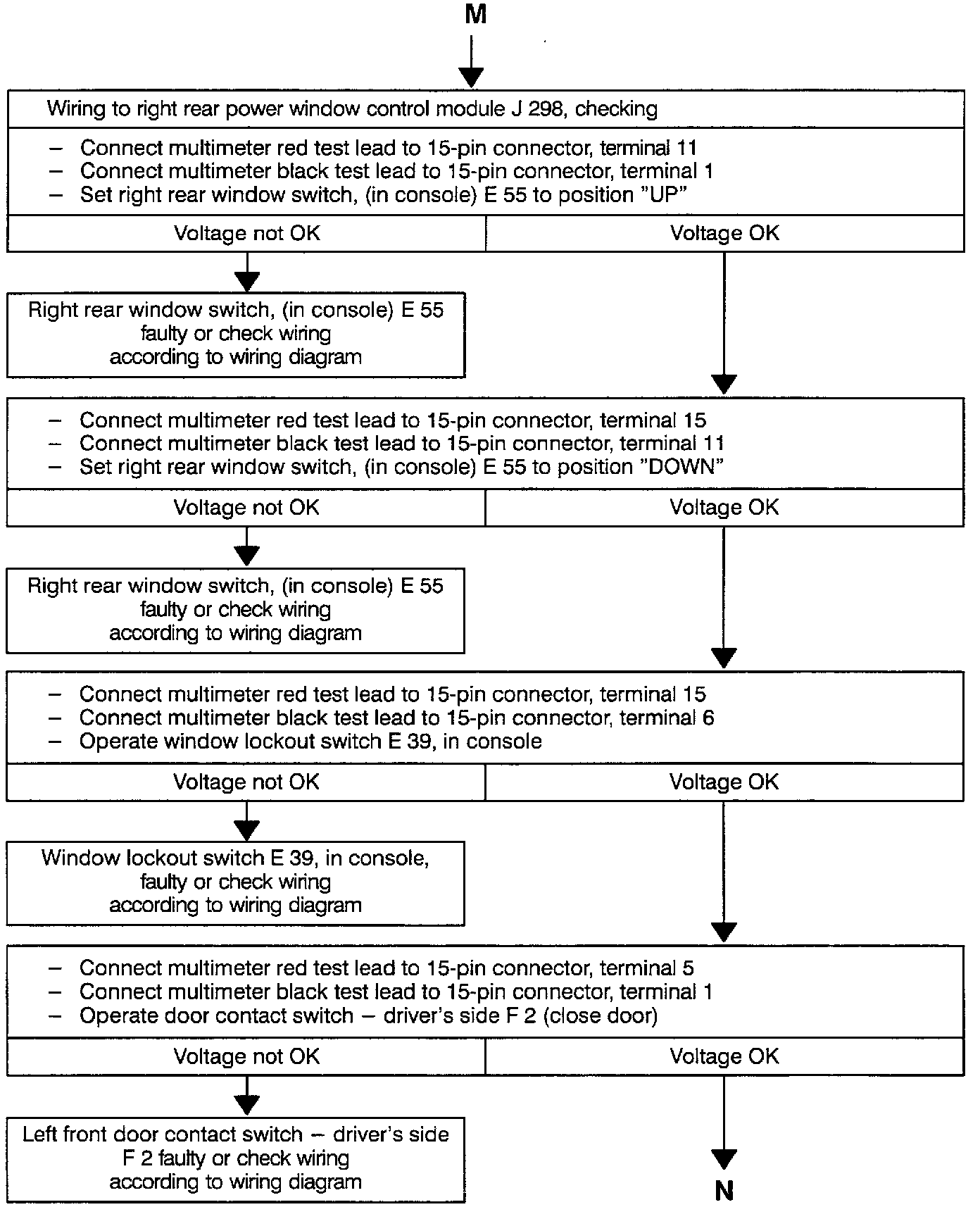

Troubleshooting - Checking Power Window Right Rear Without Function (Part 3 Of 4):

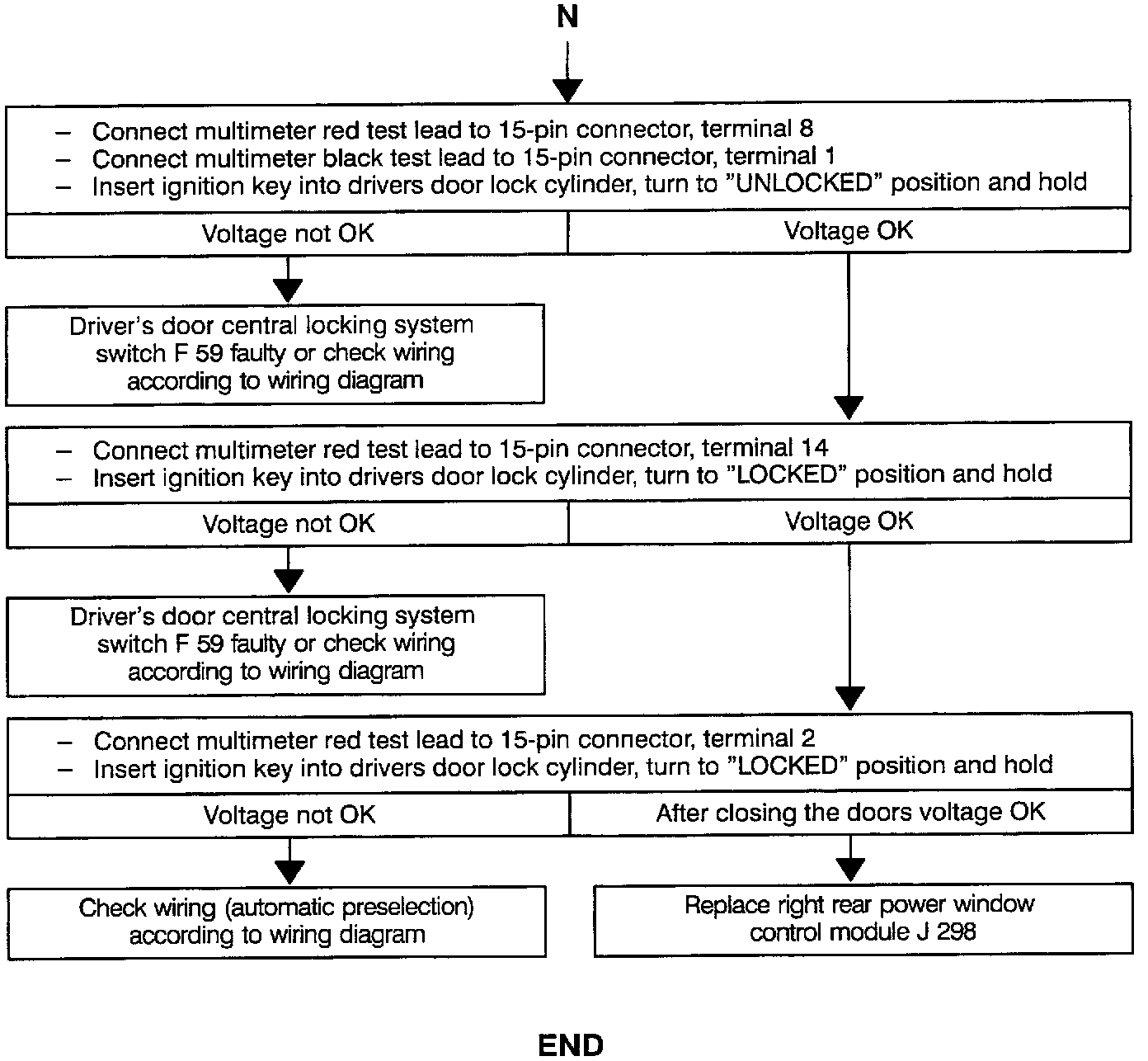

Troubleshooting - Checking Power Window Right Rear Without Function (Part 4 Of 4):

Power Window Right Rear Without Function

Test Conditions:
^ Battery voltage OK
^ Power window circuit breaker S43 OK
^ Fuse No. 16 (10A), on fuse/relay panel OK
^ Mechanical windows OK
^ Power windows in all other doors OK
^ 21-pin connector, in B-pillar, correct connected.

NOTE: To connect multimeter Fluke 83 use connector test kit VW 1594.
