Removing and Installing Door

Door removal and installation

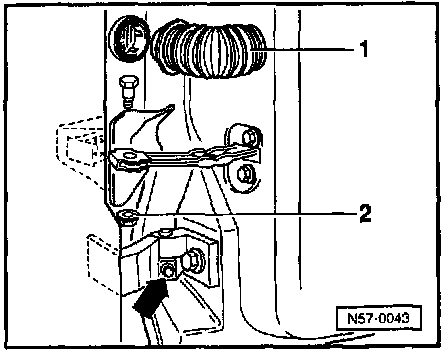

Disconnect multi-pin connector 1 on A-pillar.
Remove nut 2 and pull out pin.
Remove grub screw arrow from upper and lower hinges.
Lift door up and out of hinge brackets.

Note: Clean screw threads with a wire brush and nut threads with a thread tap. Coat screws with locking fluid. D 185 400 A 2.
Tighten nut 2 to 6.5 Nm (58 in. lb)
