Electrical Diagrams

Air Conditioning System

Diagrams By Track Number

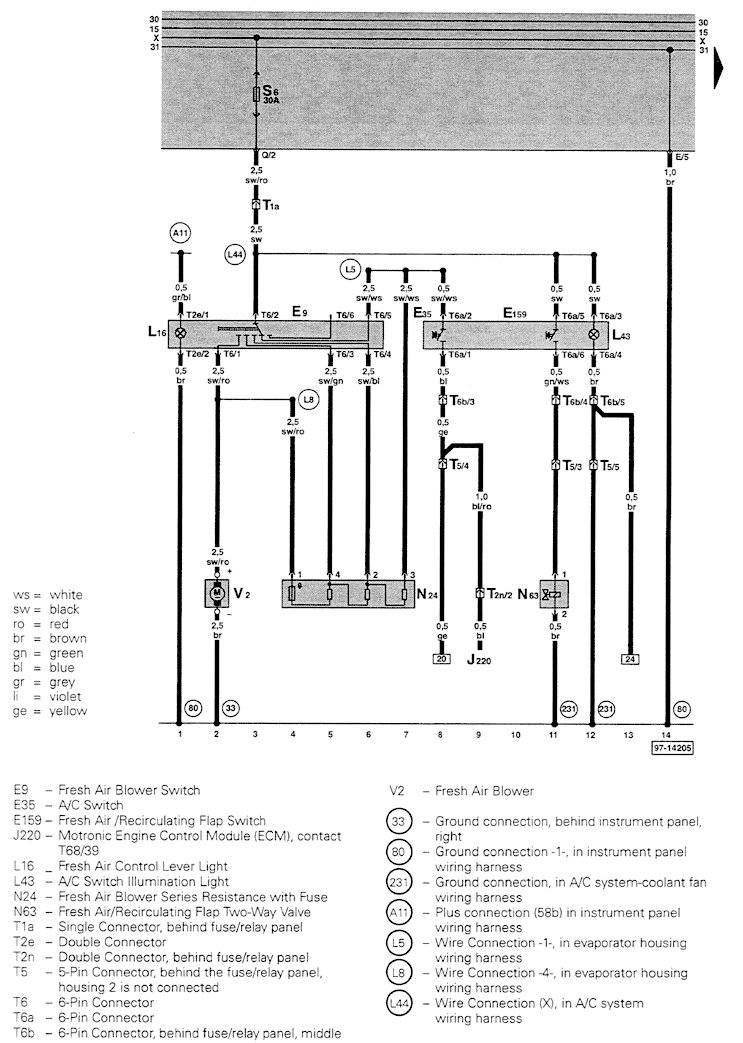

Track 1-14 [37/2]:

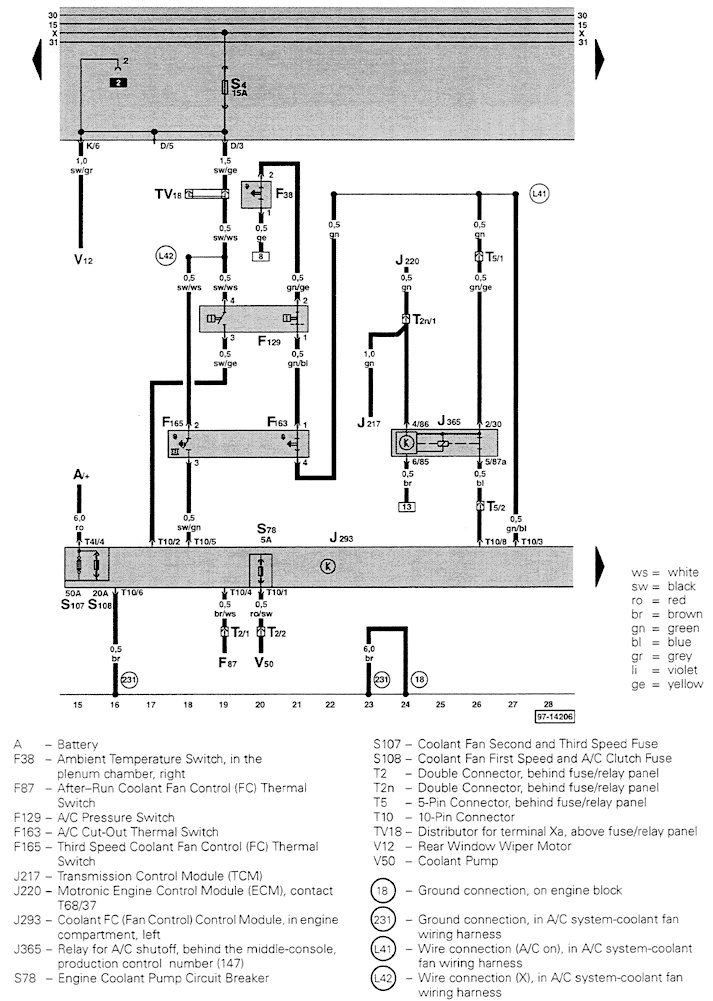

Track 15-28 [37/3]:

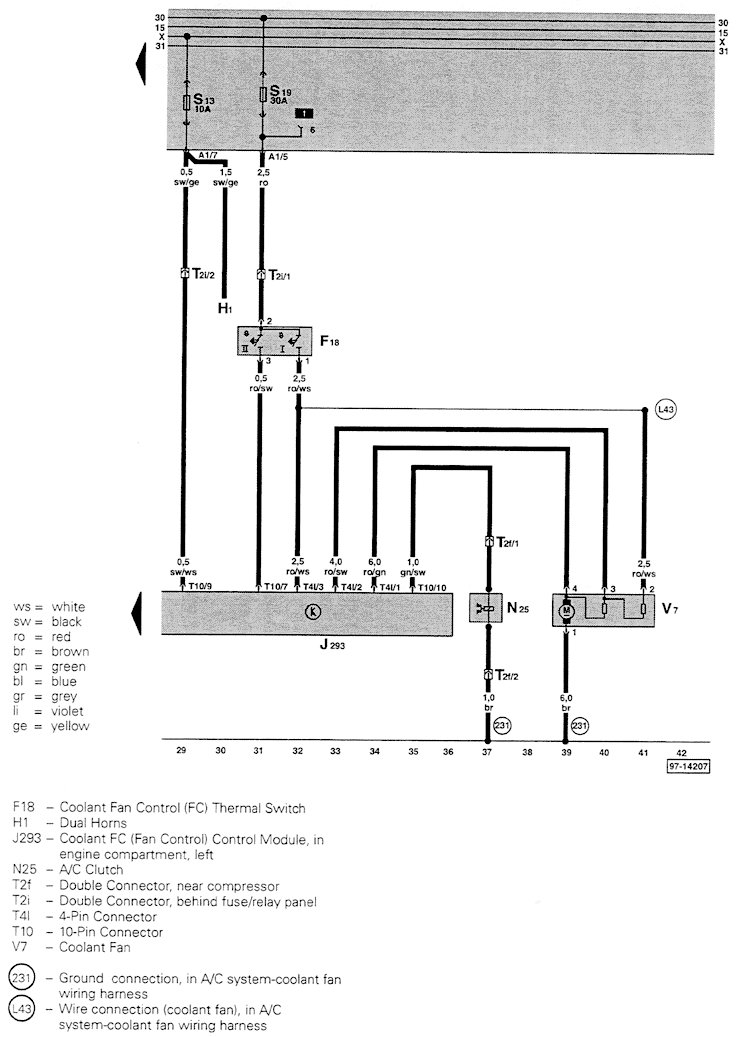

Track 29-42 [37/4]:

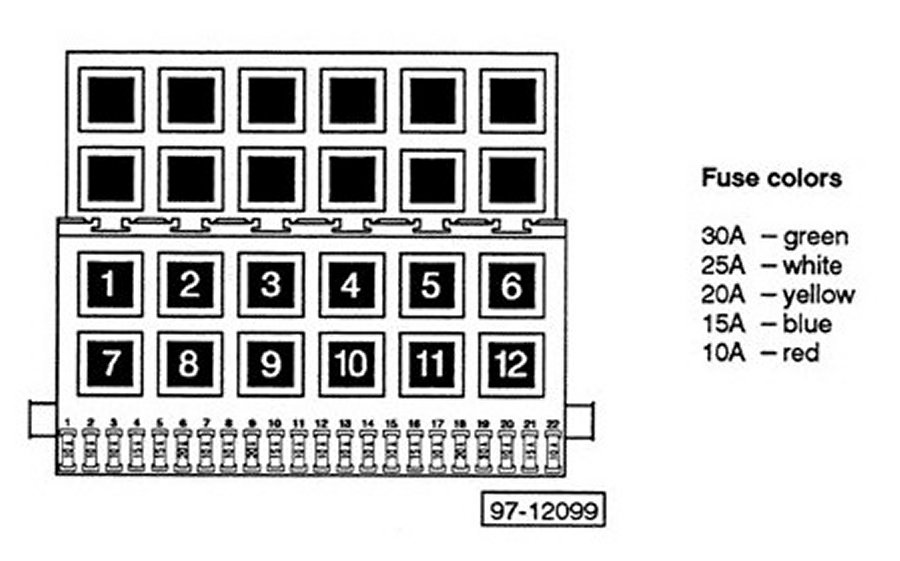

Relay Locations:

Components

E35 - A/C Switch Track 1-14
F129 - A/C Pressure Switch Track 15-28
F163 - A/C Cut-Out Thermal Switch Track 15-28
L43 - A/C Switch Illumination Light Track 1-14
N25 - A/C Clutch Track 29-42
F87 - After-Run Coolant Fan Control (FC) Thermal Switch Track 15-28
F38 - Ambient Temperature Switch, in the plenum chamber, right Track 15-28
A - Battery Track 15-28
F18 - Coolant Fan Control (FC) Thermal Switch Track 29-42
J293 - Coolant FC (fan Control) Control Module in engine compartment, left Track 15-42
S107 - Coolant Fan Second and Third Speed Fuse Track 15-28
S108 - Coolant Fan First Speed and A/C Clutch Fuse Track 15-28
V50 - Coolant Pump Track 15-28
V7 - Coolant Fan Track 29-42
H1 - Dual Horns Track 29-42
S78 - Engine Coolant Pump Circuit breaker Track 15-28
E159 - Fresh Air/Recirculating Flap Switch Track 1-14
E9 - Fresh Air Blower Switch Track 1-14
L16 - Fresh Air Control Lever Light Track 1-14
N24 - Fresh Air Blower Series Resistance with Fuse Track 1-14
N63 - Fresh Air/Recirculating Flap Two-Way Valve Track 1-14
V2 - Fresh Air Blower Track 1-14
J220 - Motronic Engine Control Module (ECM), contact T68/39 Track 1-28
J365 - Relay for A/C shutoff, behind the middle-console, production control number (147) Track 15-28
231 - Sound connection, in A/C system-coolant fan Wiring harness Track 15-28
F165 - Third Speed Coolant fan Control (FC) Thermal Switch Track 15-28
J217 - Transmission Control Module (TCM) Track 15-28
