Differential: Testing and Inspection

NOTE:
^ Oil level is checked with the transmission installed





^ The difference between Minimum/Maximum is 0.1 liter.
Excess oil can be removed using the VAG 1358A extraction system or EZ1 Fluid Evacuator.


CHECKING
- Remove speedometer drive shaft and clean using a cloth.
- Install and remove speedometer drive shaft, check level and correct if necessary.

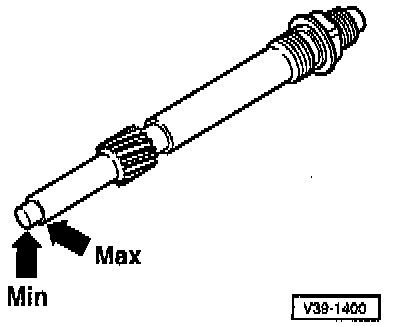

NOTE: Final drive oil level must be between Min./Maximum points of speedometer drive shaft
