System Specifications

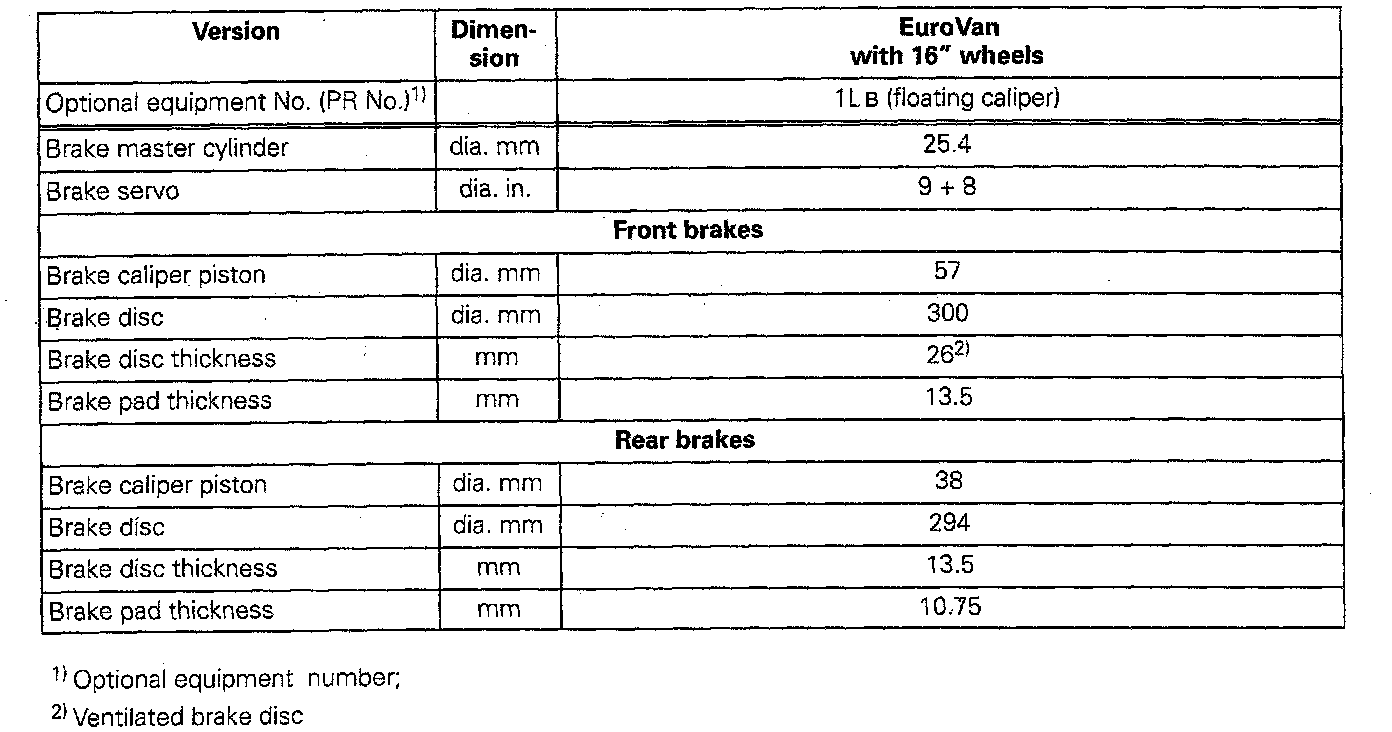

General Brake System Specifications (Part 1 Of 2):

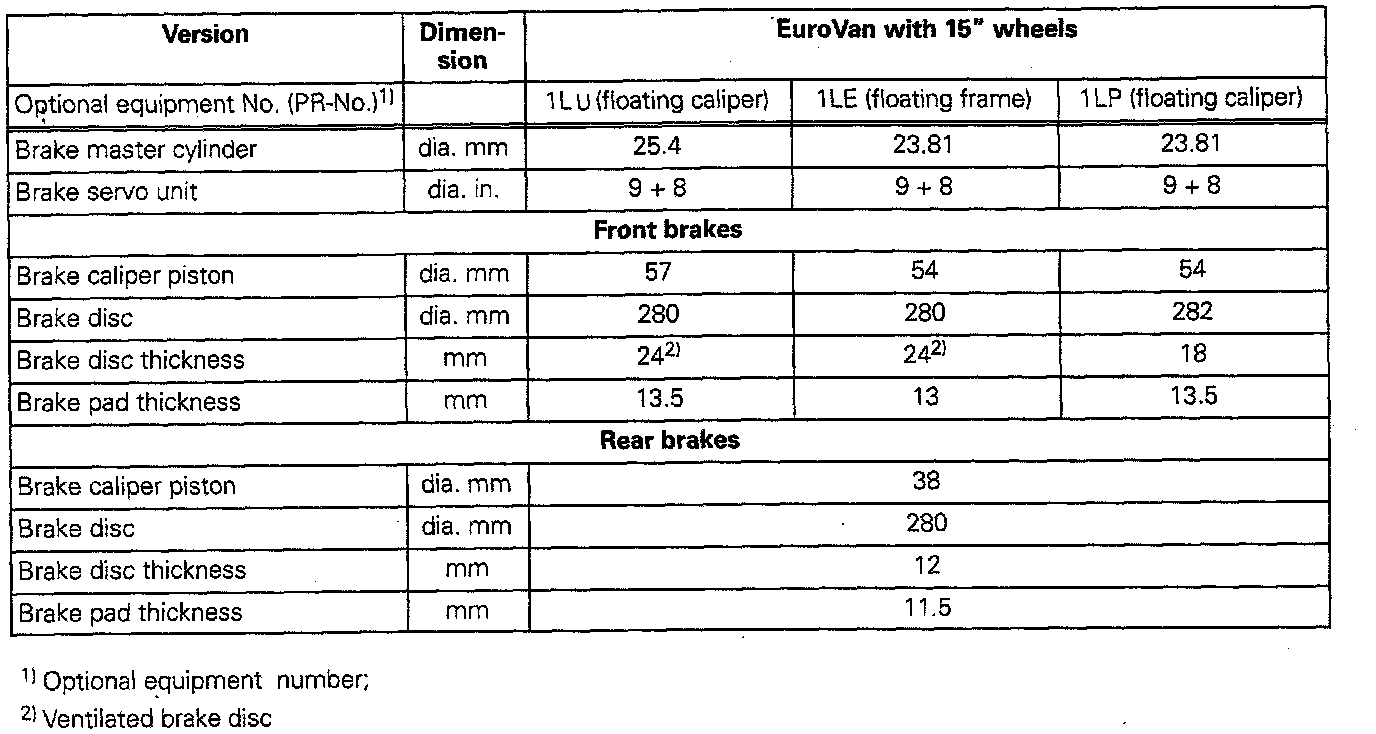

General Brake System Specifications (Part 2 Of 2):
