Deformation Elements, Installation Unit, Sunroof, Retrofitting

Deformation Elements, Installation Unit, Sunroof, Retrofitting







NOTE:
- Retrofitting of deformation elements is described for the passenger side. Retrofitting the deformation element on the driver side is identical.
- It is not possible to remove the deformation elements without damaging them.
- Deformation elements must be replaced after removal.
- Deformation elements are components of US vehicles.

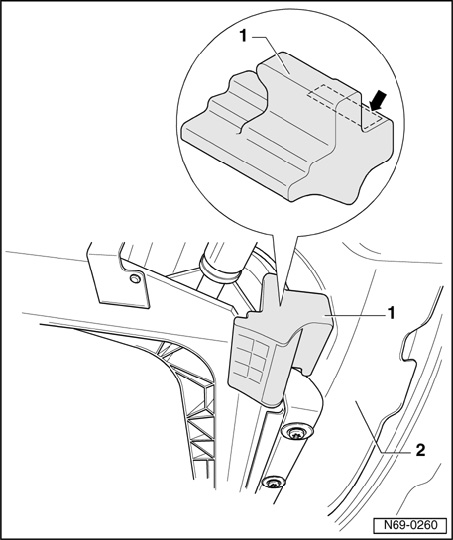

Assembly overview







1 - Deformation element
- 2x
- self adhering

2 - Installation unit, slide/tilt sunroof

Retrofitting
- Remove foil - arrow - and adhere deformation element to installation unit, slide/tilt sunroof.
