Cover And Cushion For Front Backrest, Removing and Installing

Cover And Cushion For Front Backrest, Removing And Installing

Removing
- Headrests and headrest guides removed

- Remove seat.
- Remove backrest.







- Separate beading strip - 1 - for cover - 2 - using a screwdriver - arrows -.

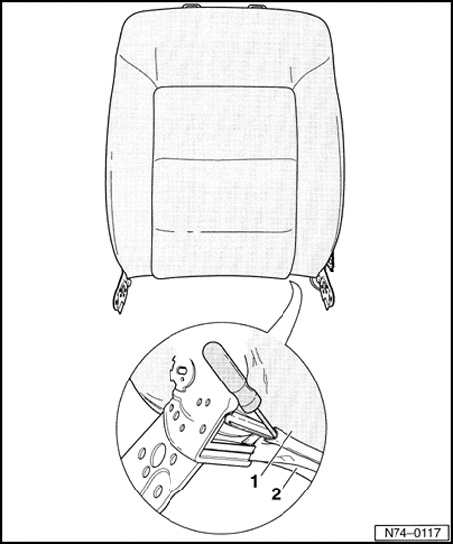

- Remove cover part - 1 - from cover center part - 2 - using screwdriver.

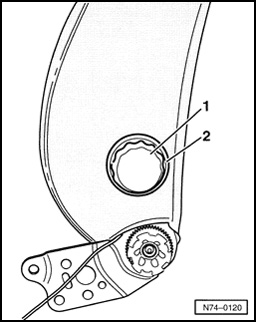

- Pry off adjusting knob - 1 - and collar - 2 -.







- Pull tension wires - 1 - out of backrest frame - 2 -.

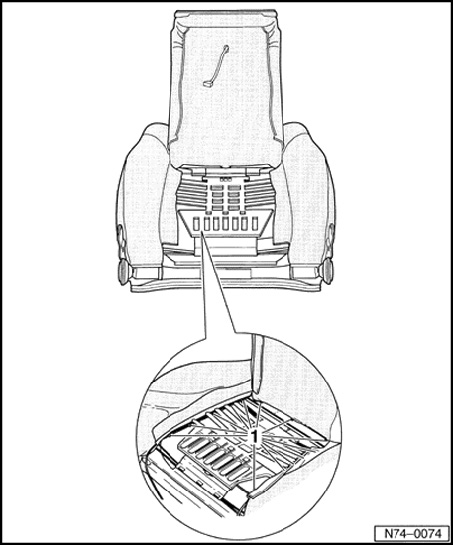

- Cut through upholstery clips - 1 -.







- Remove cover - 1 - from center part of cushion - 2 - - arrows -.
- Pull cover - 1 - upward over upholstery.

Installing







Installation is performed in the reverse order of removal.

NOTE:

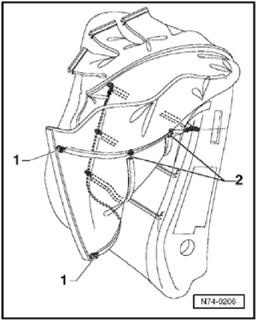

- Before installing backrest cover, check whether two tension wires - 1 - are present.
- Depending on seat version, two or three cushion wires - 2 - must be installed.
