II - Upper and Lower Control Arms: Overview

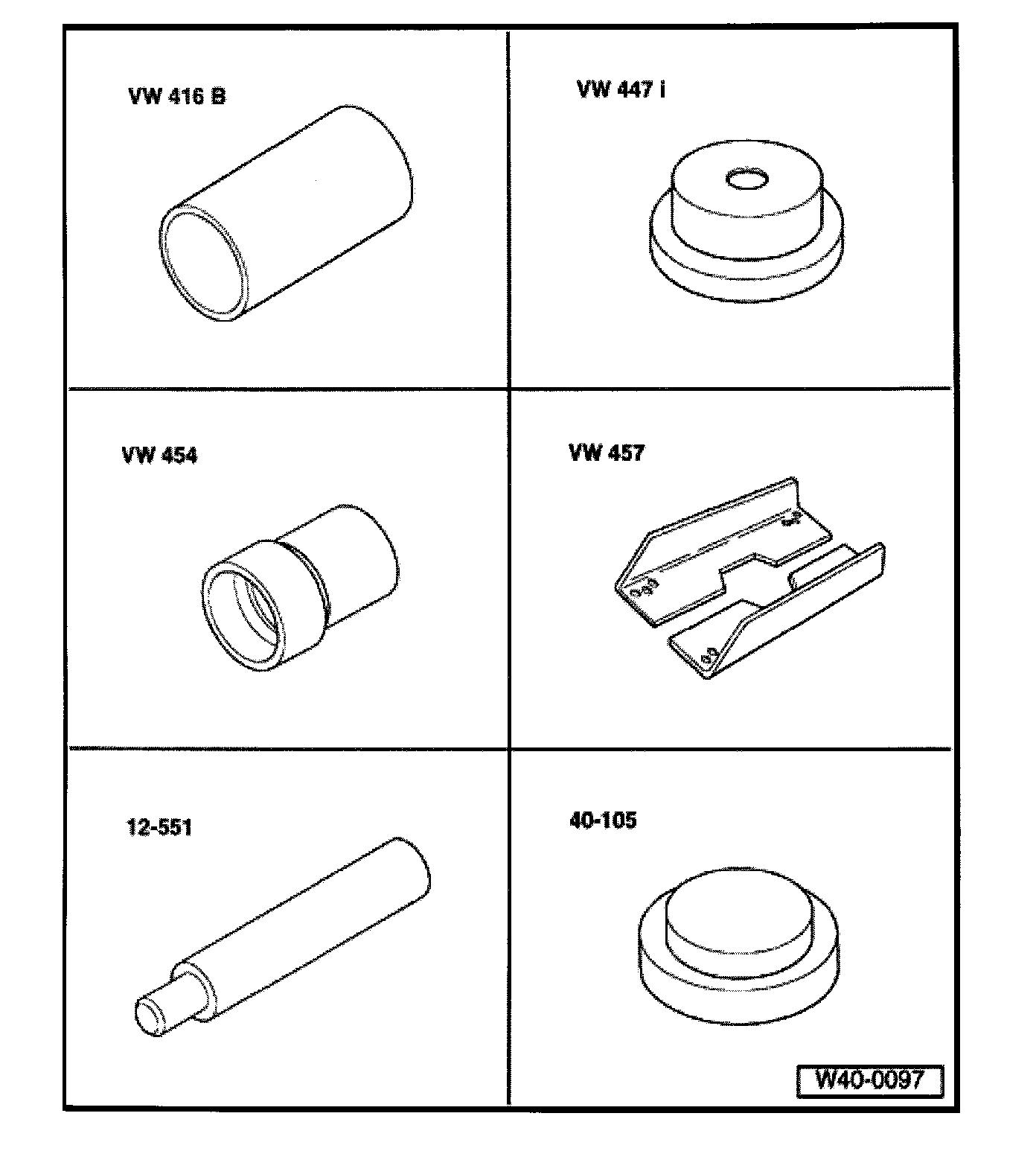

Special Tools and Equipment





^ VW401 thrust plate
^ VW402 thrust plate
^ VW409 punch
^ VW411 punch
^ VW412 punch
^ VW415A tube, 31.5 mm diameter





^ VW416B tube
^ VW447i pressure disc
^ VW 454 pressure piece
^ VW457 holding rails
^ 12-551 centering mandrel
^ 40-105 thrust piece





^ 2010 press support
^ 3053 guide tube
^ 3257 plug insert (27 mm)
^ VAG1332 torque wrench

Overview





1 - Hex-nut, tighten to 100 Nm
^ Always replace after disassembly
2 - Rear bearing for top control arm
^ Ejecting and pressing in Fig. 3
3 - Hex bolt
^ M 14 x 1.5 x 42
4 - Snap ring
^ Pry out using screwdriver
^ Always replace
5 - Upper ball joint
6 - Hex bolt, 60 Nm
^ M 1 2 x 1.5 x 22
7 - Eccentric bushing
^ Is marked with "R" at right of underside
^ Is marked with "L" at left of underside (arrow)
^ Mark installation position before removing
8 - Hexnut, tighten to 130 Nm
^ Only tighten when vehicle is standing on its wheels.
9 - Eccentric washer
10 - Rear bearing for bottom control arm
^ Pressing out go to Fig. 9
^ Installation position go to Fig. 10
^ Pretensioning go to Fig. 11
^ Pressing In go to Fig. 12
11 - Eccentric bolt
^ Adjusting after-run
12 - Coupling link
^ For stabilizer 27 mm
^ Unbolt and bolt on at stabilizer go to Fig. 15
13 - Hex bolt
^ M14 x 1.5 x 175
14 - Rubber bearing
^ Only at coupling rod for stabilizer 23.5 mm
^ Removing and installing go to Fig. 16
15 - Coupling link
^ For stabilizer 23.5 mm
^ Push off of stabilizer go to Fig. 14
16 - Rubber bearing
^ Removing and installing go to Fig. 17 and 18
17 - Socket
^ Removing and installing go to Fig. 17 and 18
18 - Lower ball joint
19 - Lower control arm
^ Hold in installation position when tightening bolts.
20 - Self locking hex nut
^ 60 Nm + 90° (1/4 turn)
^ Always replace after disassembly
21 - Socket head bolt M12 x 1.5 x 30
^ 90 Nm + 90° (1/4 turn)
^ Always replace after disassembly
^ Use socket head wrench 14 (e.g. Hazet 990)
22 - Hex-nut, tighten to 160 Nm
23 - Front bearing for bottom control arm
^ Remove rubber collar for pressing out go to Fig. 4, and bend up metal collar go to Fig. 5
^ Pressing out go to Fig. 6
^ Pressing in Fig. 7 and go to Fig. 8
24 - Hex bolt
^ M 14 x 1.5 x 82
25 - Self locking hex nut
^ 60 Nm + 90° (1/4 turn)
^ Always replace after disassembly
26 - Eccentric washer
27 - Wheel bearing housing
28 - Hex-nut, tighten to 100 Nm
^ Always replace after disassembly
29 - Front bearing for upper control arm
^ Pressing out go to Fig. 1
^ Pressing in Fig. 2
30 - Upper control arm
^ Can only be removed with the subframe removed
^ Hold in installation position when tightening bolts.
31 - Hex bolt
^ M 14 x 1.5 x 80
32 - Hex bolt
^ M 14 x 1.5 x 80





Fig. 1 Pressing out front bearing -A- for upper control arm

Fig. 2 Pressing in front bearing for upper control arm
^ Press in far enough so that the collar of the bearing projects out evenly on both sides.

Note: Before pressing in, coat using lubricant, e.g. lubricating soap.





Fig. 3 Rear bearing for upper control arm, pressing out and pressing in
^ Press in far enough so that the collar of the bearing projects out evenly on both sides.

Note: Before pressing in, coat using lubricant, e.g. lubricating soap.





Fig. 4 Remove rubber collar from bonded rubber bushing -1-

Fig. 5 Bend up metal collar -1- in area -a-





Fig. 6 Pressing out front bearing for lower control arm





Fig. 7 Pressing in front bearing for lower control arm
^ Press in bearing up to stop.





Fig. 8 Re-pressing in front bearing for lower control arm
The larger inner diameter of 2010 sleeve points toward control arm.
^ Insert a bolt -A- into bearing for repressing (e.g. 10-203).
^ Re-press until the rubber collar jumps out from the control arm.





Fig. 9 Pressing out rear bonded rubber bushing from lower control arm
^ Mark installation position beforehand, e.g. via a punch indentation go to Fig. 10, arrow B.





Fig. 10 Installation or rear bonded rubber bushings
Bonded rubber bushing must be pressed in so that the lug (arrow A) points upward and is offset by 11 to symmetrical axis of control arm (left and right).

Note: Control arm must be held in installation position to do so.





Fig. 11 Pre-tension rear bonded rubber bushing for lower control arm
^ Next, pre-tension bonded rubber bushings using hose clamps as seen in illustration, until both metal shells of the bearing contact each other (arrow).





Fig. 12 Press in rear bonded rubber bushing into lower control arm
^ Press in pre-tensioned bonded rubber bushings (go to Fig. 11) in installation position (go to Fig. 10) far enough so that a distance of 371 ± 1 mm is created between inner tube of front bonded rubber bushing and inner tube of rear bonded rubber bushing go to Fig. 13.





Fig. 13 Installation measurement of bonded rubber bushing of lower control arm
Dimension a go to 371 ± 1 mm

Fig. 14 Press off coupling rod from stabilizer (23.5 mm)
Coat rubber bushing of coupling rod at inner radius with lubricant, e.g. lubricating soap and press coupling rod off of stabilizer.





Fig. 15 Unbolt and bolt on coupling rod at stabilizer (27 mm )
1 - Reinforced stabilizer 27 mm | 2 -coupling rod
Tightening torque of coupling rod to stabilizer: 100 Nm

Note: After mounting coupling rod, make sure the rubber joint of coupling rod is not twisted.





Fig. 16 Removing and Installing rubber bushing for coupling rod, on stabilizer side
^ Pry out rubber bushing using screwdriver as shown in illustration.
^ Press in new rubber bushing.

Note: Before pressing in, coat using lubricant, e.g. lubricating soap.





Fig. 17 Remove rubber bushing for coupling rod on control arm side
^ Press out bushing as shown in illustration.
^ Pry out rubber bushing using screwdriver.





Fig. 18 Install rubber bushing for coupling rod on control arm side
^ Press rubber bushing into coupling rod.
^ Press in bushing -A- as shown in illustration.

Note: Before pressing in, coat parts using lubricant, e.g. lubricating soap.
