Read Measuring Value Block (Function 08)
Special tools and equipment
VAG 1551 scan tool with cable VAG 1551/3
- Connect VAG 1551 scan tool. VAG 1551 Scan Tool Connecting
- Initiate On Board Diagnostic (OBD). On Board Diagnostic, Initiating Program
The measuring values in the functions "Read Measuring Value Block" and "Basic Setting" are described during the individual component test. This table serves only as an overview.
The measuring value block is divided into 15 display group numbers. The assignment of the individual display fields can be found in the display group overview see below.
Indicated on display
Rapid data transfer HELP
Select function XX
- Press buttons -0- and -8- to select "Read Measuring Value Block" function 08.
Indicated on display
Rapid data transfer Q
08 - Read Measuring Value Block
- Press -Q- button to confirm input.
Indicated on display
Read Measuring Value Block HELP
Input display group number XXX
- Press buttons -0-, -0- and -1- to input display group number 1(001).
NOTE: The display group number 001 is used as an example to illustrate the sequence.
Indicated on display (1 - 4 = display fields)
Read Measuring Value Block ->
1 2 3 4

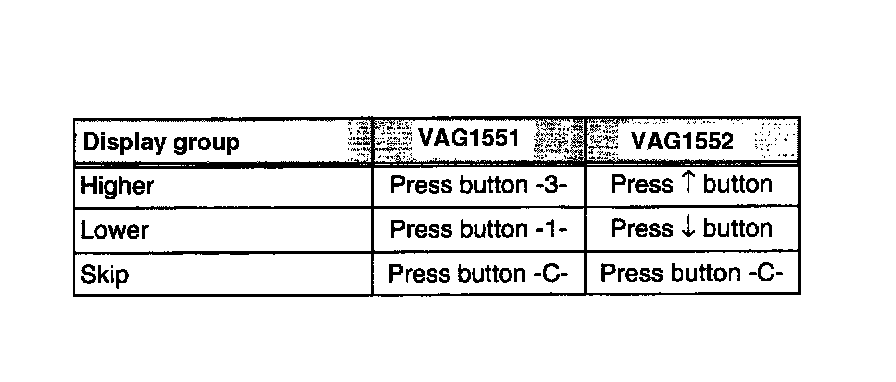

NOTE: To change to another display group proceed as follows:
Displayed after pressing -C- button.
Indicated on display
Read Measuring Value Block HELP
Input display group number XXX
- Enter display group number required.
Display Group Overview

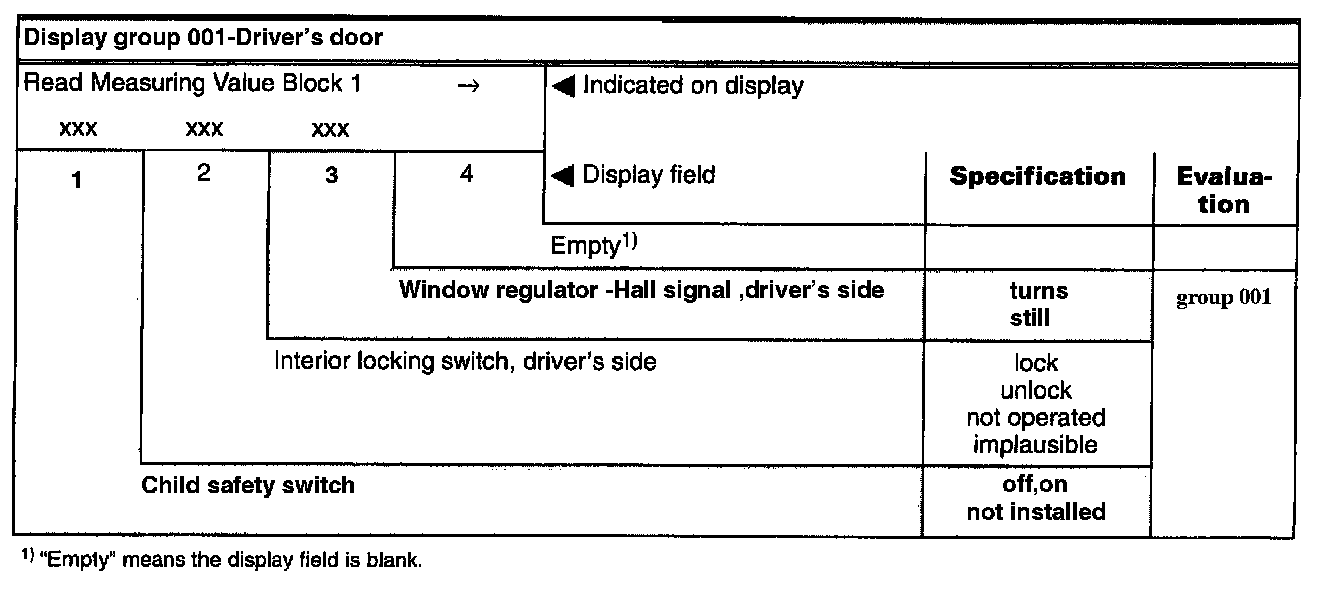

Display Group 001:

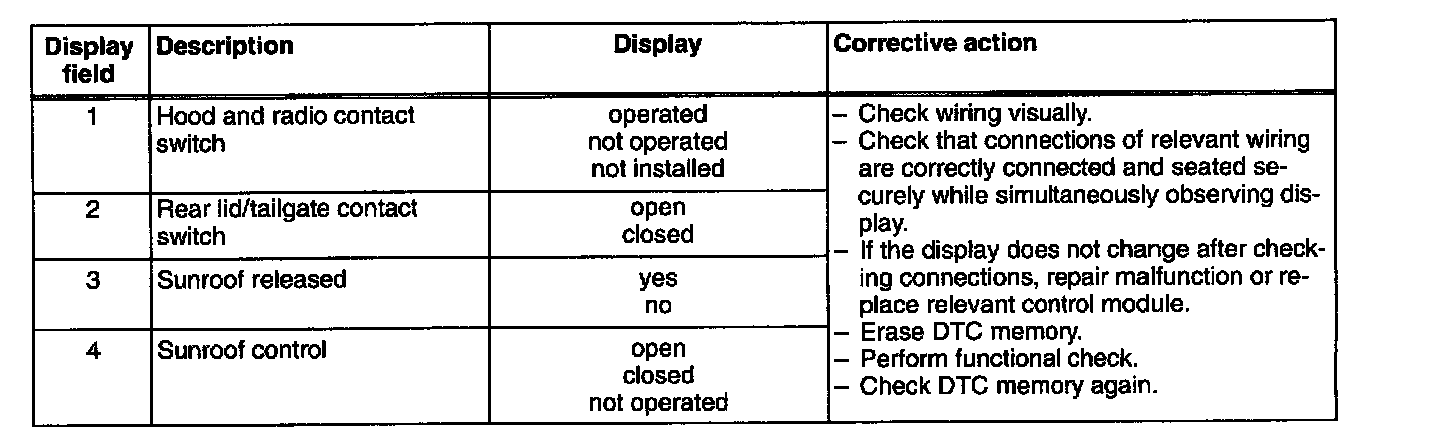

Evaluating Display Group 001:
Display Group 002:

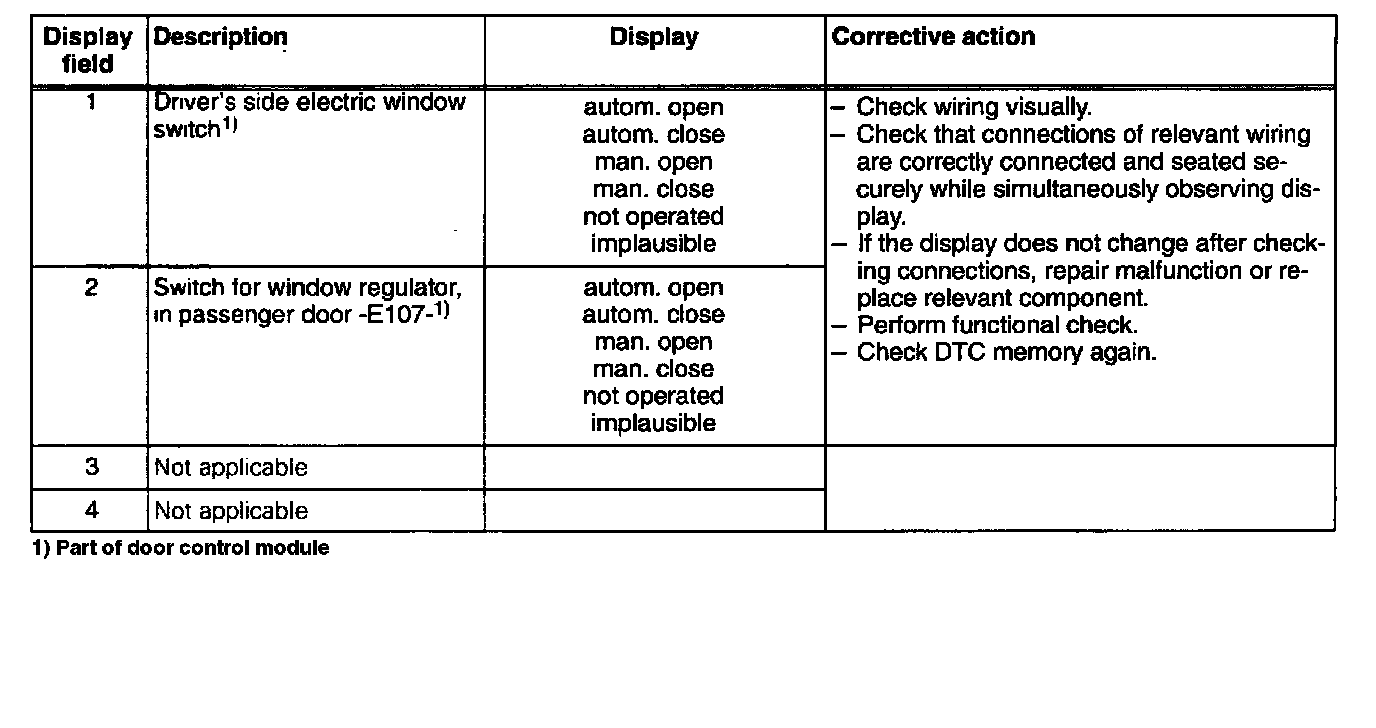

Evaluating Display Group 002:

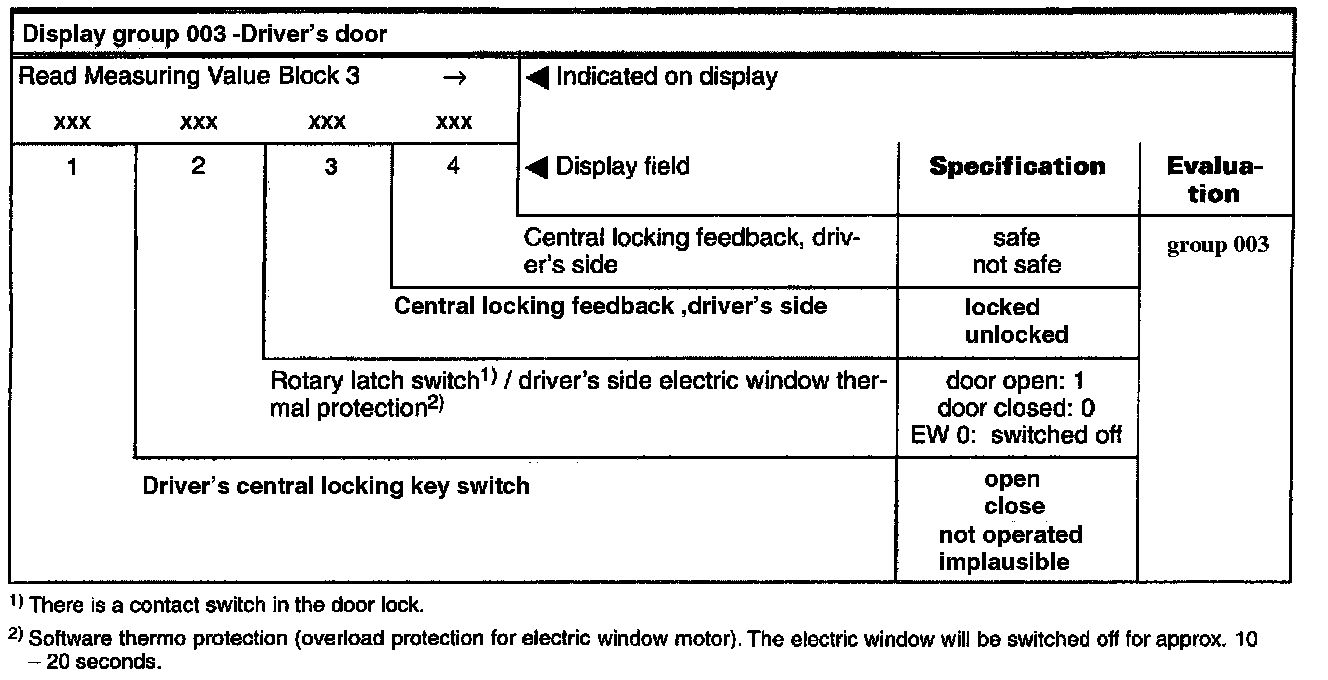

Display Group 003:
Evaluating Display Group 003:

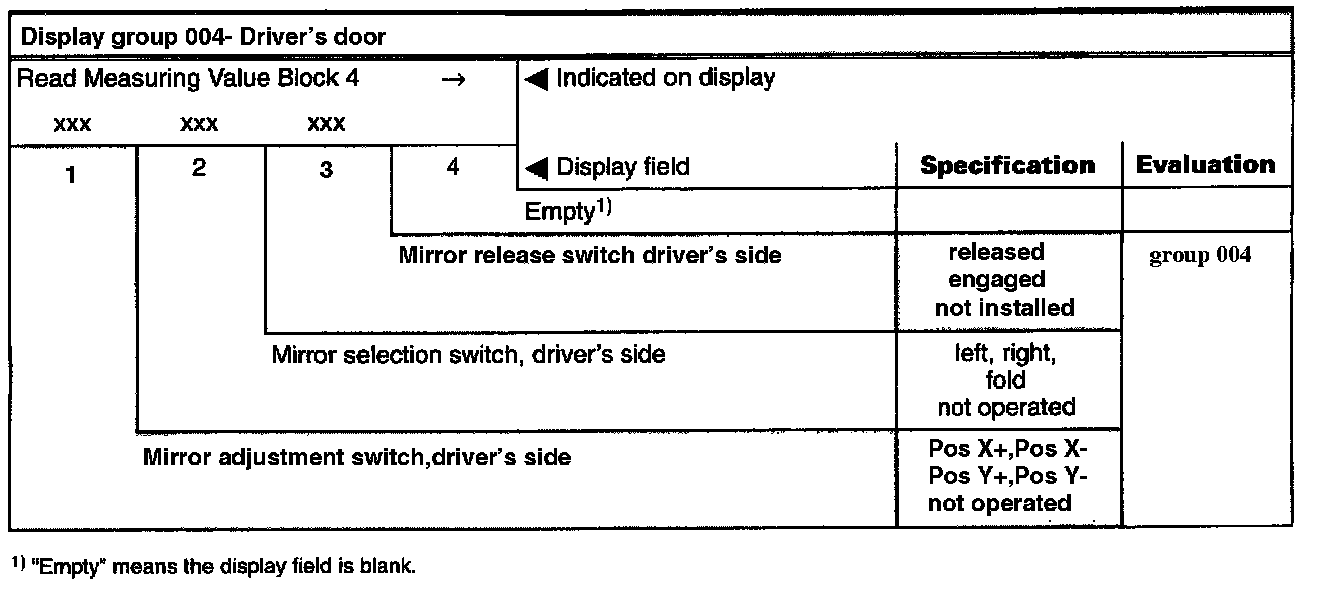

Display Group 004:

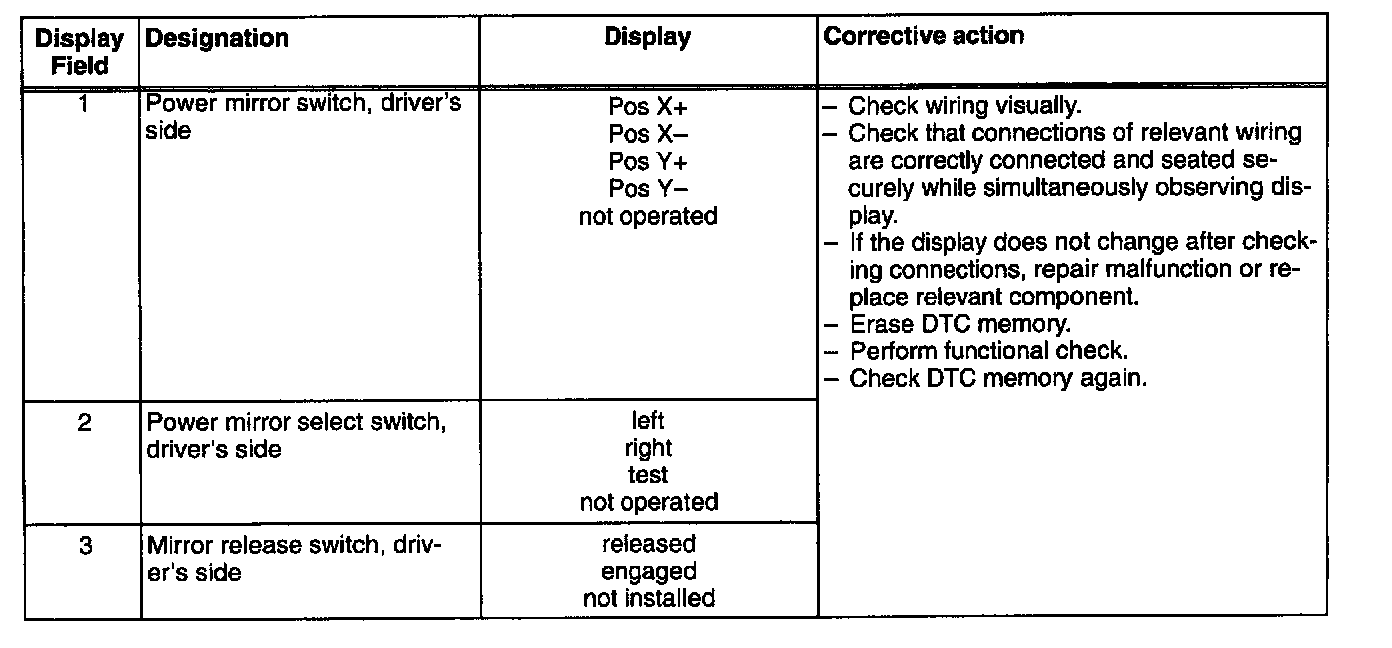

Evaluating Display Group 004:
Display Group 005:

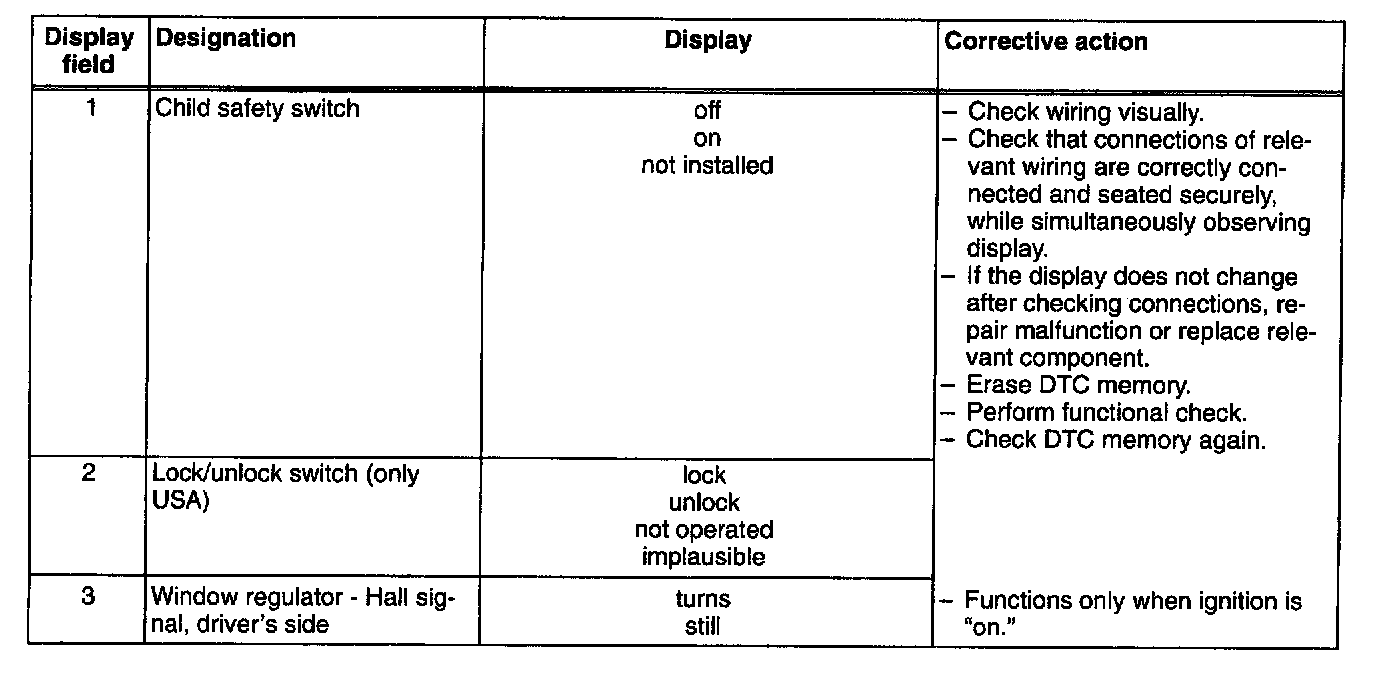

Evaluating Display Group 005:

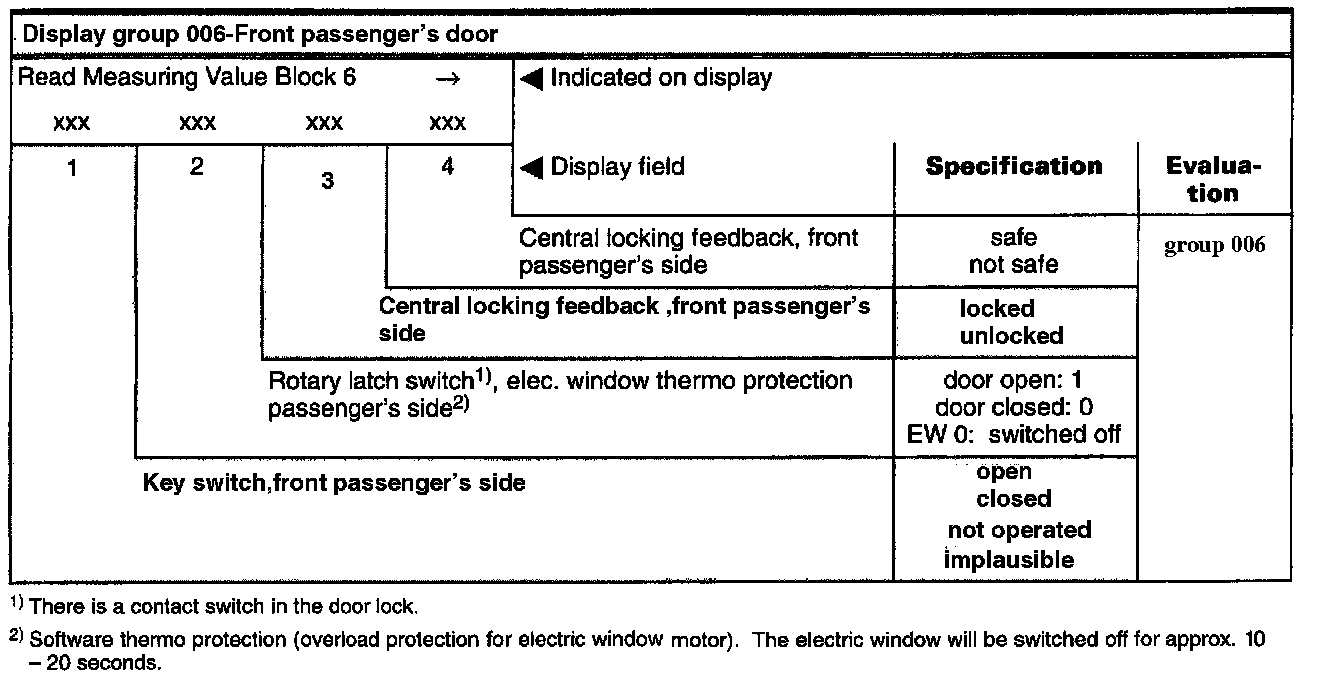

Display Group 006:

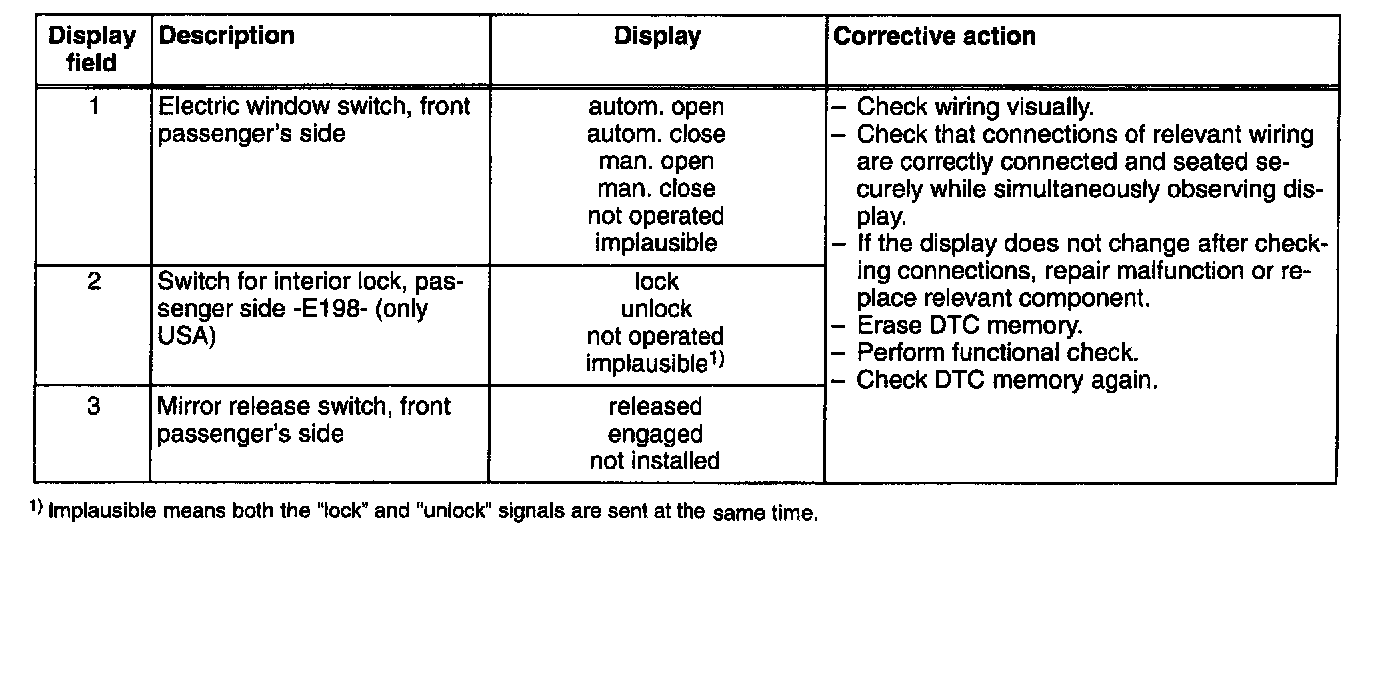

Evaluating Display Group 006:

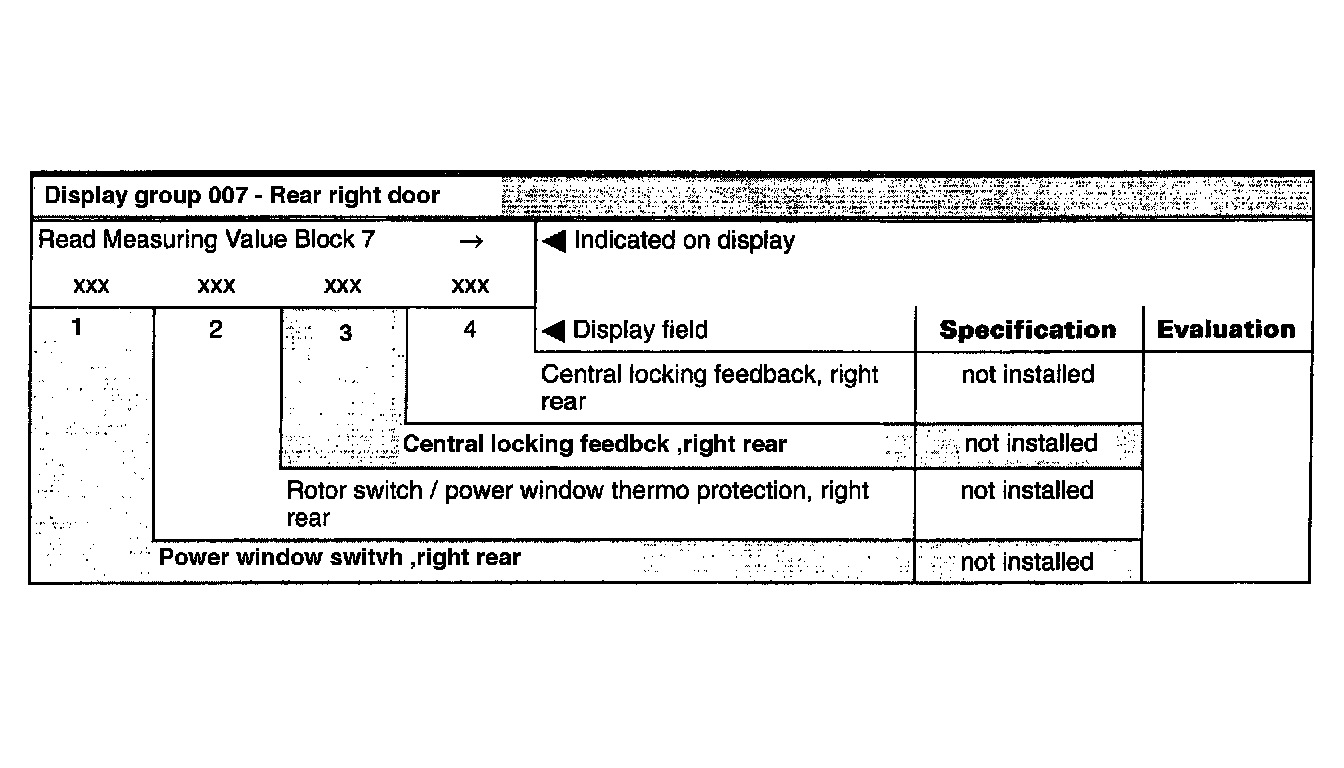

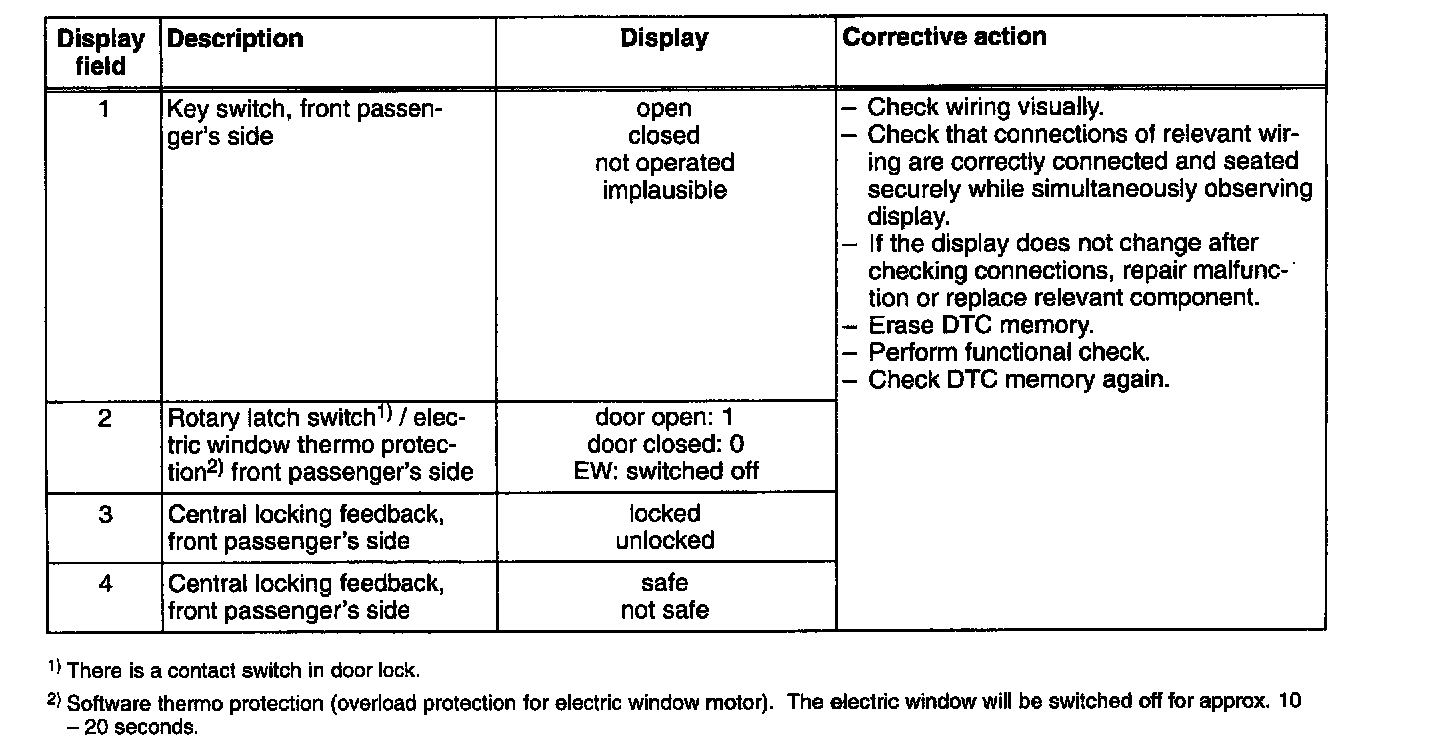

Display Group 007:
Display Group 008:

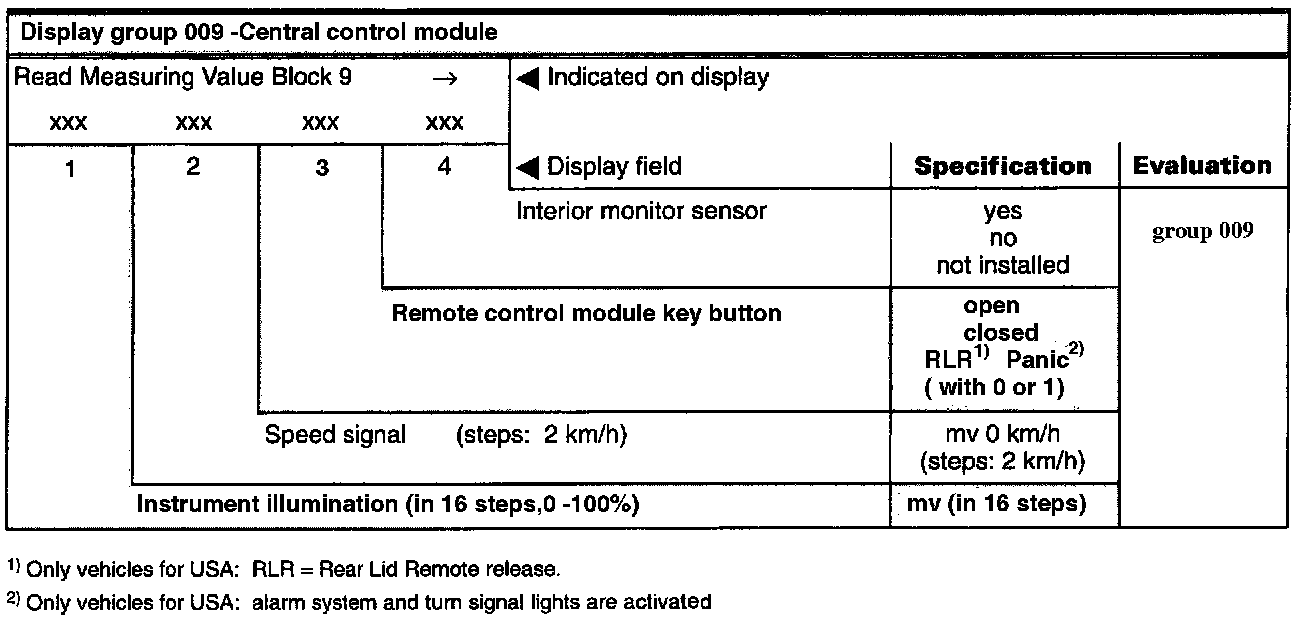

Display Group 009:

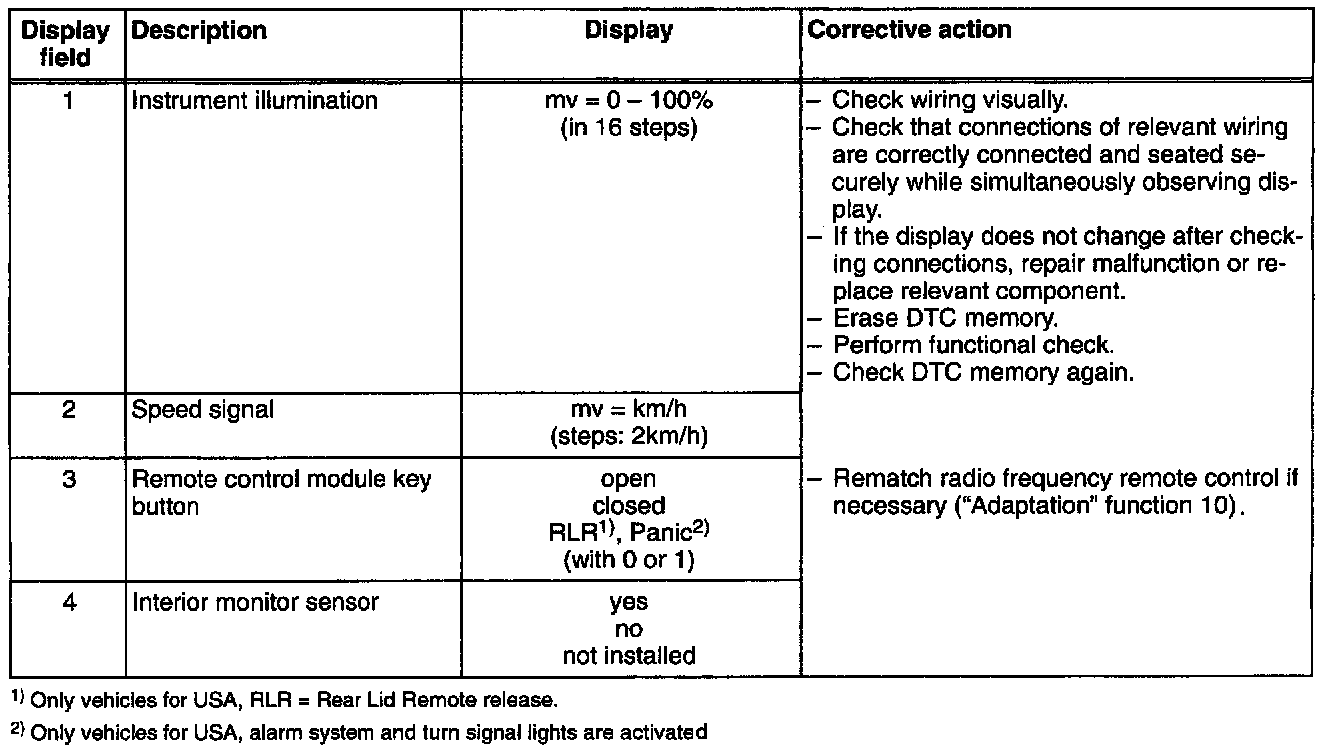

Evaluating Display Group 009:

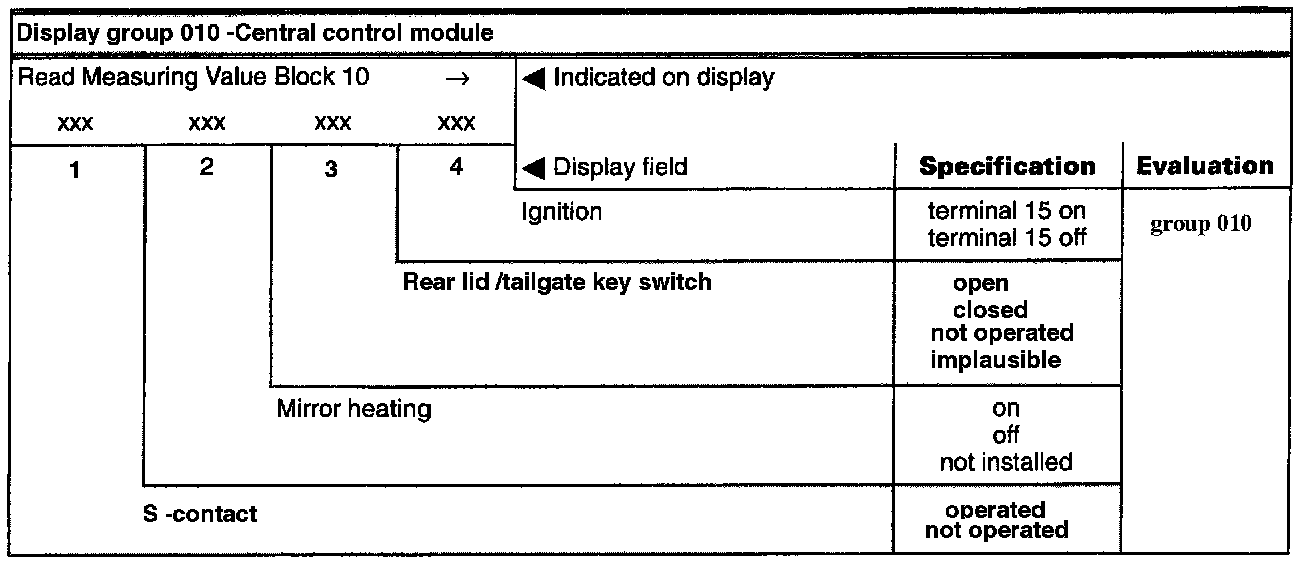

Display Group 010:

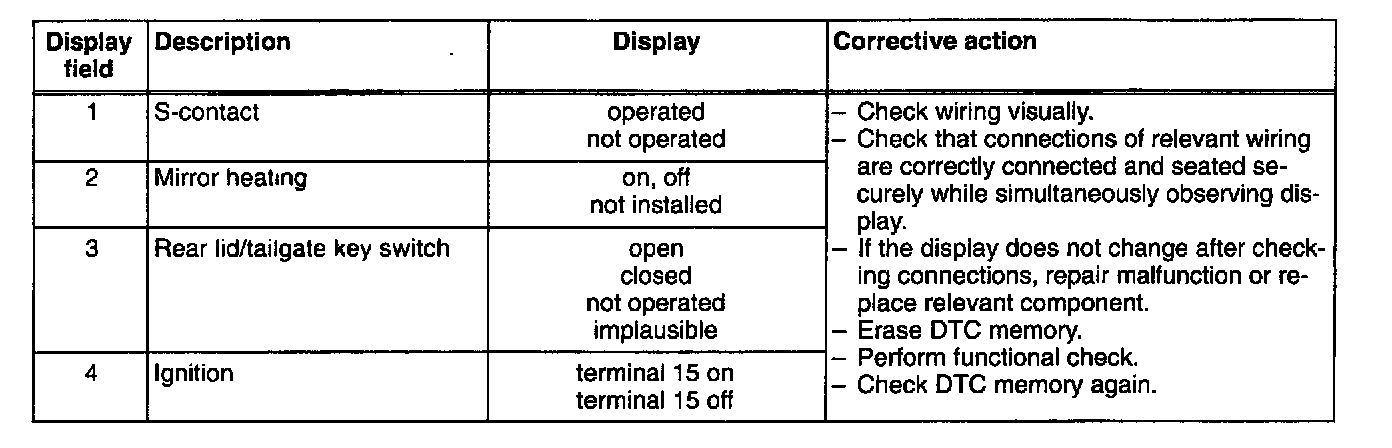

Evaluating Display Group 010:
Display Content For Display Group 011:
Evaluating Display Group 011:

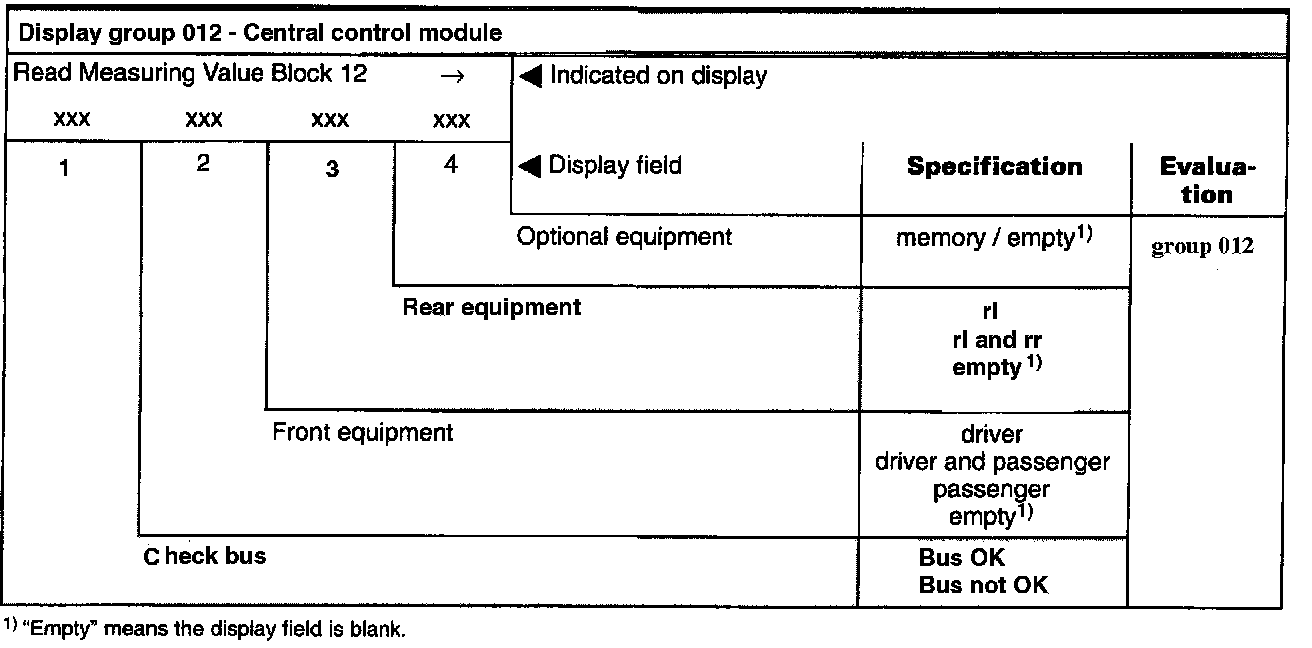

Display Group 012:

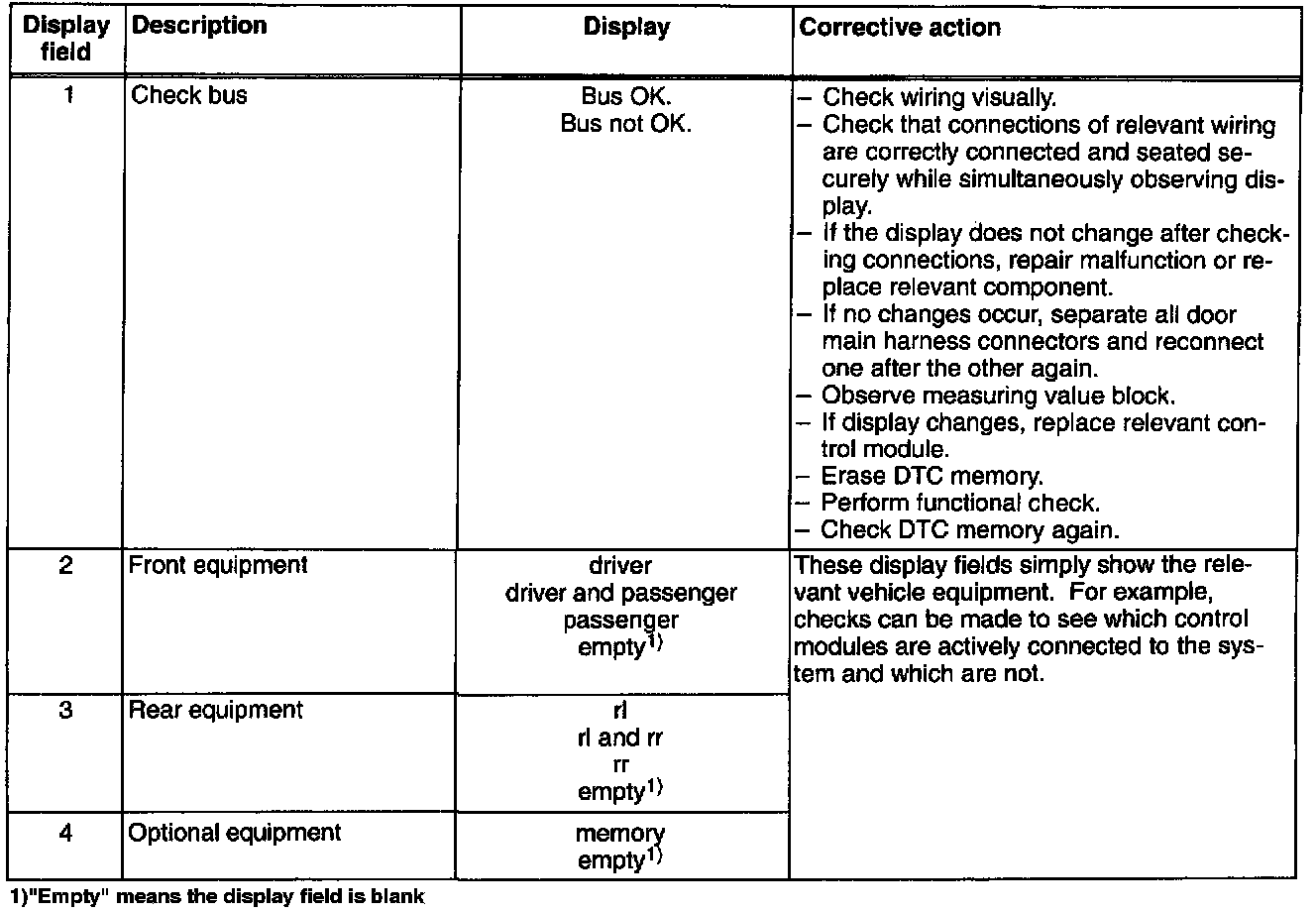

Evaluating display group 012:
Example:
The display indicates component status. A malfunction is indicated by a missing display, if the control module is connected.
For example, if there is a malfunction in the driver's side door control module, display field 2 will indicate "passenger" only.

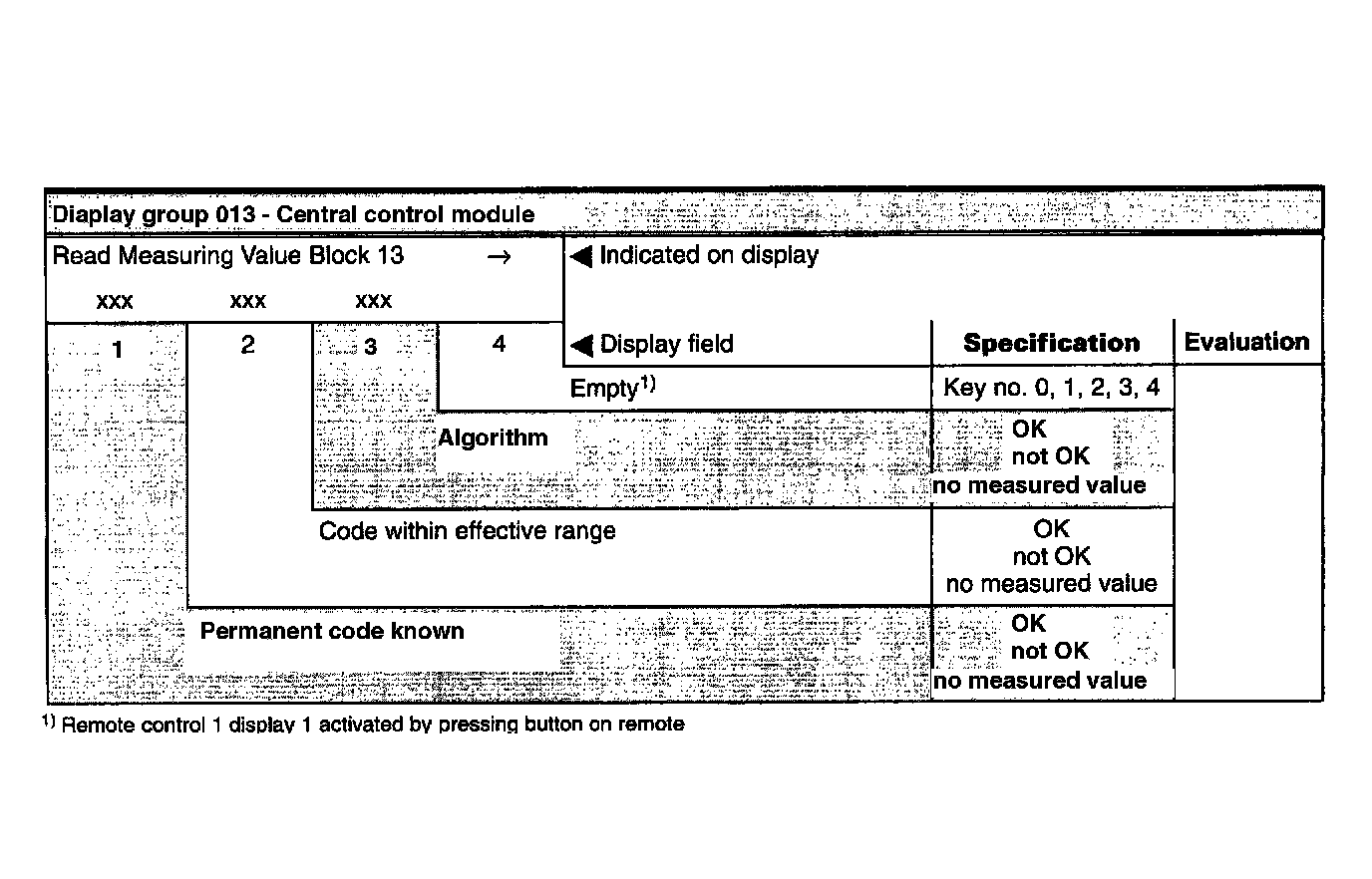

Display Group 013:

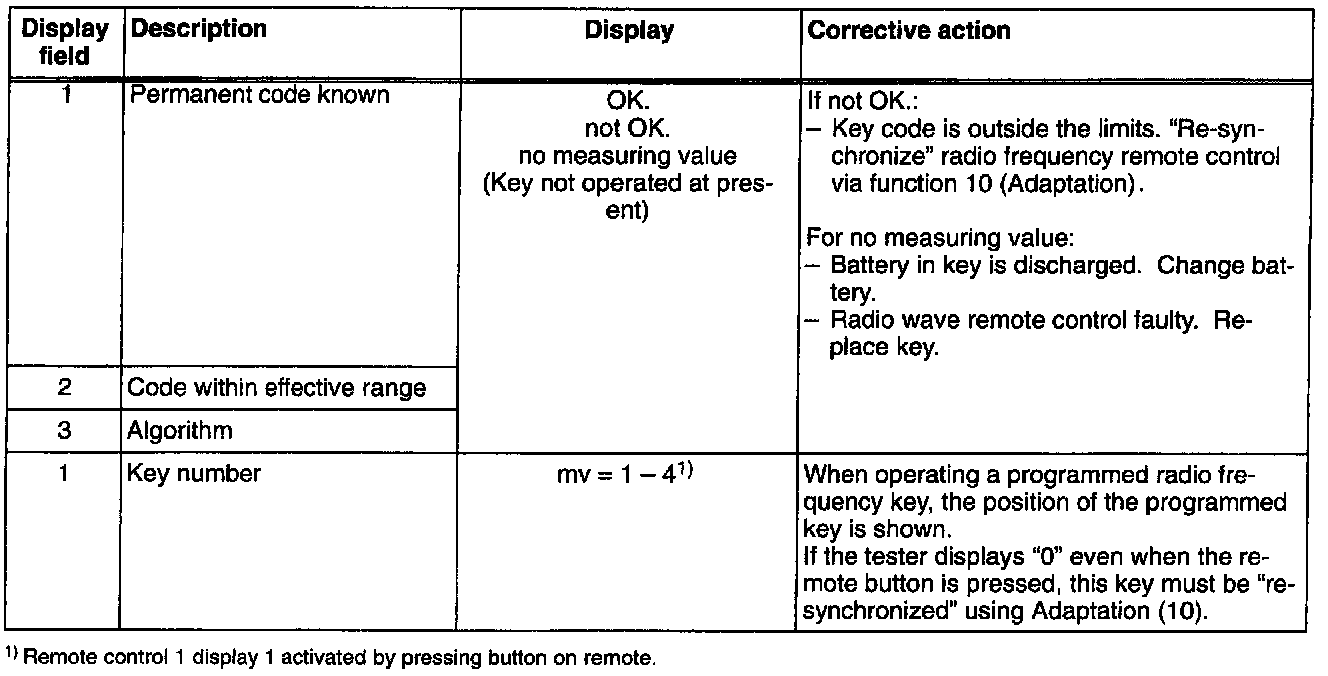

Evaluating Display Group 013:

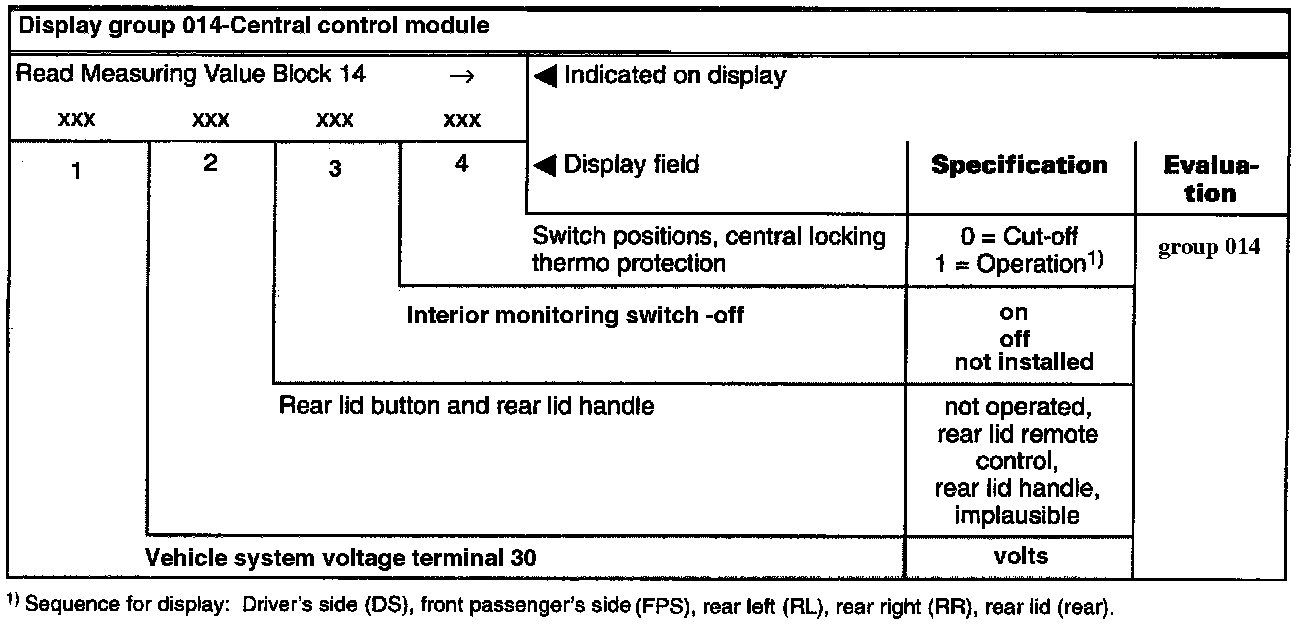

Display Group 014:
Evaluating Display Group 014:

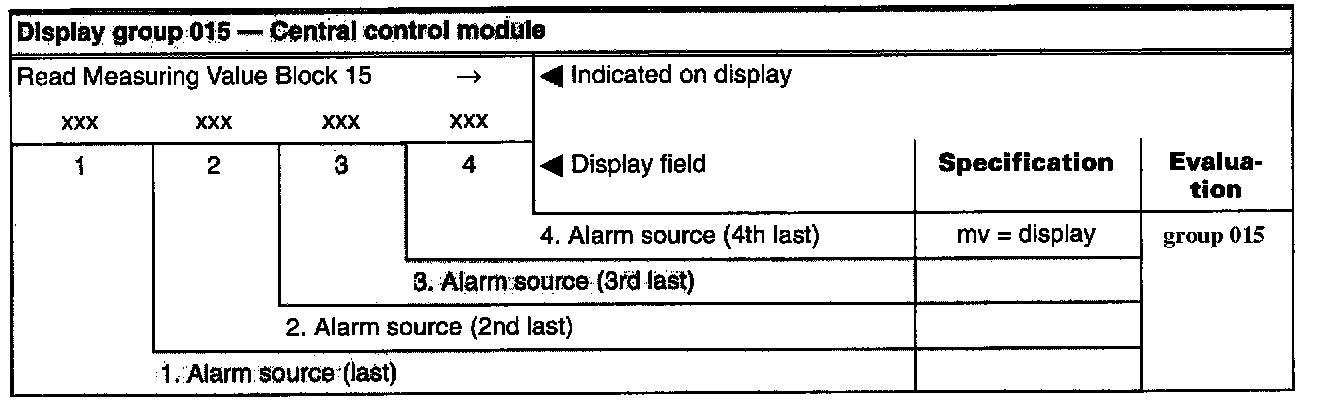

Display Group 015:
Evaluating Display Group 015:
Possible Display
Rear lid/tailgate contact switch 1
Rear right rotary latch switch 2
Rear left rotary latch switch 4
Front passenger rotary latch switch 8
Ignition 16
Interior monitor 32
Hood contact switch 64
Driver's rotary latch switch 128
No alarm 255
