C/D-Pillar Trim

Upper C/D-pillar Trim (Sedan), Removing And Installing

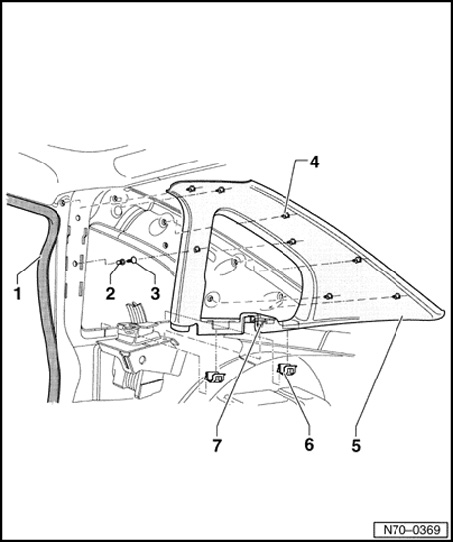

Vehicles without head-level airbag







1 - Gasket
2 - Sleeve
- 8x

3 - Clip
- 8x

4 - Mount
- Part of trim

5 - Trim
6 - Clip
- 2x

7 - Clip

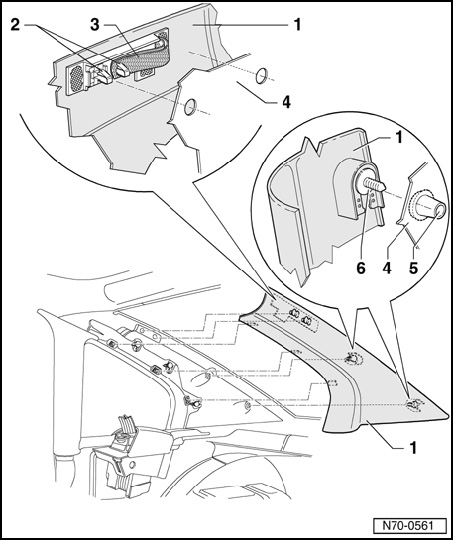

Vehicles with head-level airbag

NOTE: Upper C/D-pillar trim must be replaced after removal as it cannot be removed without being destroyed.







1 - Trim - upper section
- Removing
- Unclip trim, starting at top.

- Installing:
- Position trim on side piece and clip.

2 - Clip
- 2x

3 - Catch strap
4 - Side panel
5 - Sleeve
- 2x

6 - Clip
- 2x

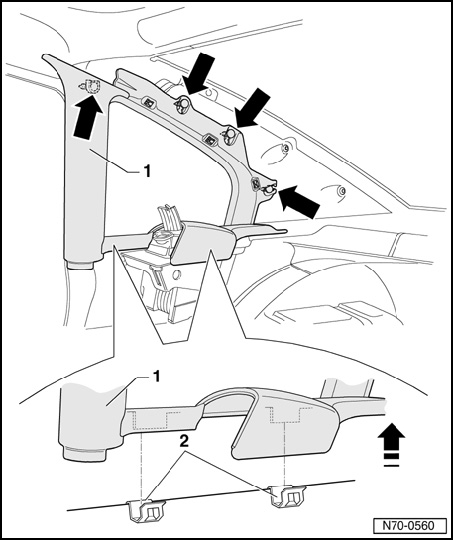

1 - Lower trim section
- Removing
- Pull off door seal in area of C-pillar trim.
- Unclip trim, starting at top.

- Installing:
- Position trim on side piece and clip.
- Insert door seal.

2 - Clip
- 2x
