Cover And Cushion For Front Seat, Removing and Installing

Cover And Cushion For Front Seat, Removing And Installing

Removing
- Remove seat.
- Remove backrest.

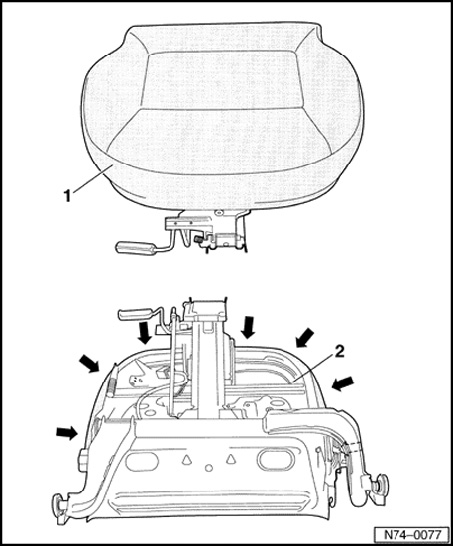

- Pull off cover - 1 - from seat frame - 2 - - arrows -.

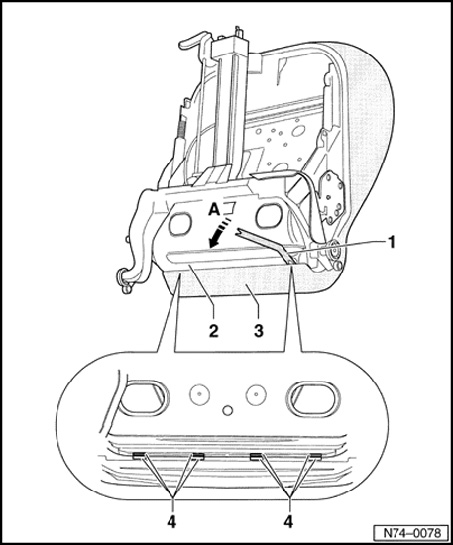

- Guide Pry Lever - Rmv Outside Mirror 80-200 - 1 - between seat frame - 2 - and cover - 3 - and press apart locking lugs - 4 - - arrow A -.
- Remove cover - 3 - and cushion from seat frame - 2 -.

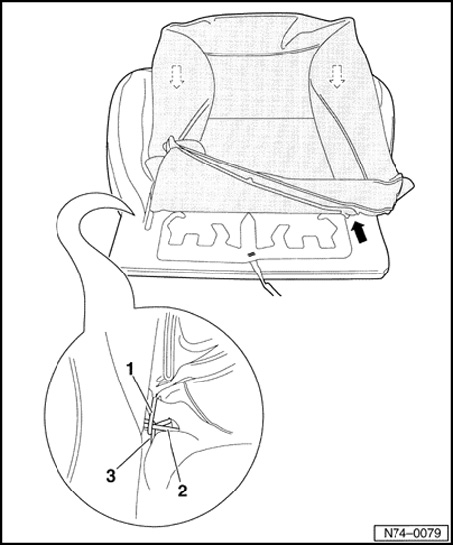

- Release wires - 1 - and - 2 - from cushion wire - 3 - - arrows -.
- Remove cover.

Installing
Installation is performed in the reverse order of removal.
