Fuel Filter, removing and installing

Fuel Filter, removing and installing






WARNING: Fuel supply pipes are under pressure! Before removing from hose connection wrap a cloth around the connection. Then release pressure by carefully pulling hose off connection.

Remove rear right wheel housing liner

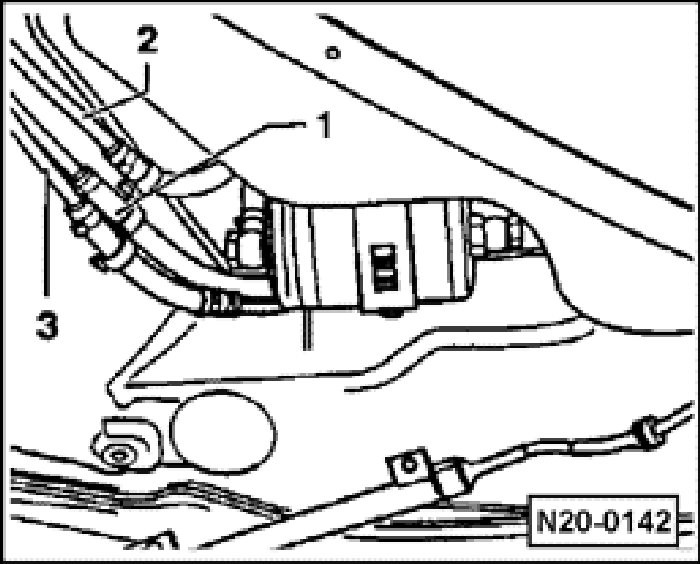

Pull supply hose -1- off fuel filter.
Mark return hose -2- and separate at connecting point.

Installation is reverse of removal
