Diagnostic Tester, Connecting

Diagnostic tester, connecting

Recommended special tools and equipment e.g.:





- VAS 5052 Vehicle Diagnostic and Information System with
- VAG 5052/3 diagnostic cable

Requirements

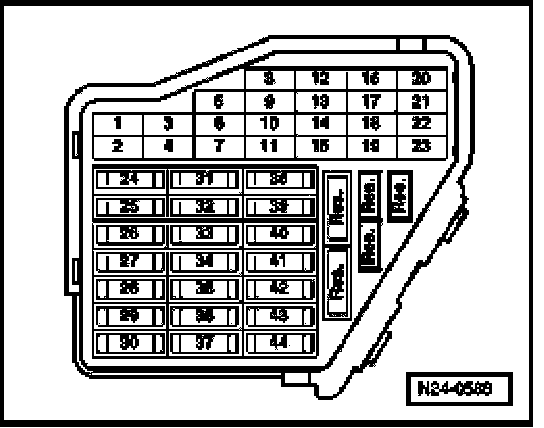

- The respective fuses of the Motronic fuel injection and ignition system must be OK:
- Battery voltage must be at least 11.5 volts.
- All electrical consumers like, for example, lights and rear window heating must be switched off.
- Parking brake must be engaged or else daylight driving lights will be switched on.
- For vehicles with automatic transmission, selector lever must be in position -P-or -N-.
- If vehicle is equipped with an A/C system, it must be switched off.
- Ground (GND) connections between engine and chassis must be OK.
- Ignition switched off.

Procedure
Connect diagnostic tester ((VAS 5052) using ((VAS 5052/3) diagnostic cable as follows:

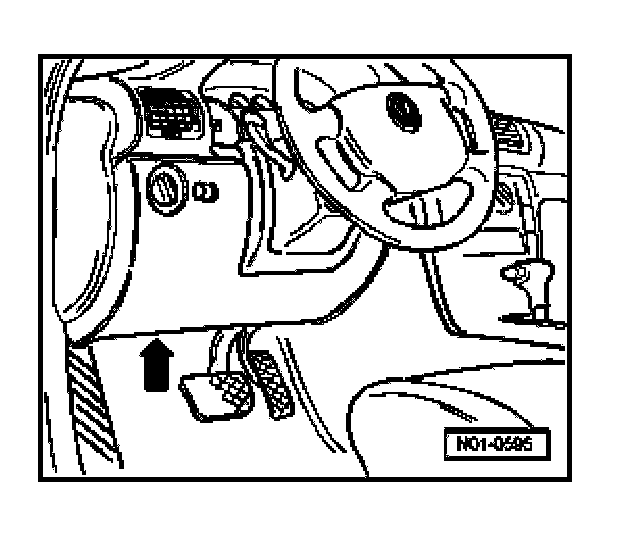

- Connect diagnostic cable connector to Data Link Connector (DLC) -arrow-.
- Depending on the desired diagnostic mode, it is necessary to:
switch on ignition or
start engine, selectable diagnostic modes under address word 33. Selectable Diagnostic Modes Under Address Word 33 - OBD

NOTE:
- Respective operation of the diagnostic tester
- If no display appears on diagnostic tester, check voltage supply at Diagnostic Link Connector (DLC).
