Deformation Elements, Head-Level Airbag, Vehicles Without Sunroof, Removing and Installing

Deformation Elements, Head-level Airbag, Vehicles Without Sunroof, Removing And Installing

NOTE:
- The deformation element is bolted to the airbag in the area of the front roof holding grip.
- Removal and installation is described for passenger side of vehicle. The same instructions apply for removal and installation for the driver side.
- Deformation elements are components of US vehicles.

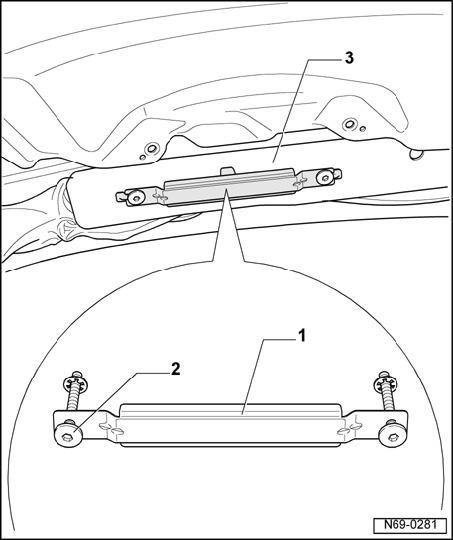

Assembly overview







1 - Deformation element
2 - Bolt
- 2x
- 3 Nm

3 - Curtain airbag

Removing
- Remove molded headliner Sedan.
- Remove molded headliner Wagon.







- Remove bolts - 2 -.
- Remove deformation element - 1 -.

Installing
- Installation is the reverse order of removal.
