Vehicles With Blue Instrument Cluster Illumination

Power Window Switches In Driver's Door, Removing And Installing (Vehicles With Blue Instrument Cluster Illumination)


NOTE: On vehicles with blue (instrument cluster) illumination, individual power window switches in the driver's door can be removed/replaced separately.


Removing
- Remove driver's door handle
- Lift release handle with controls upwards from door trim and carefully turn over.
- Disconnect electrical connections.

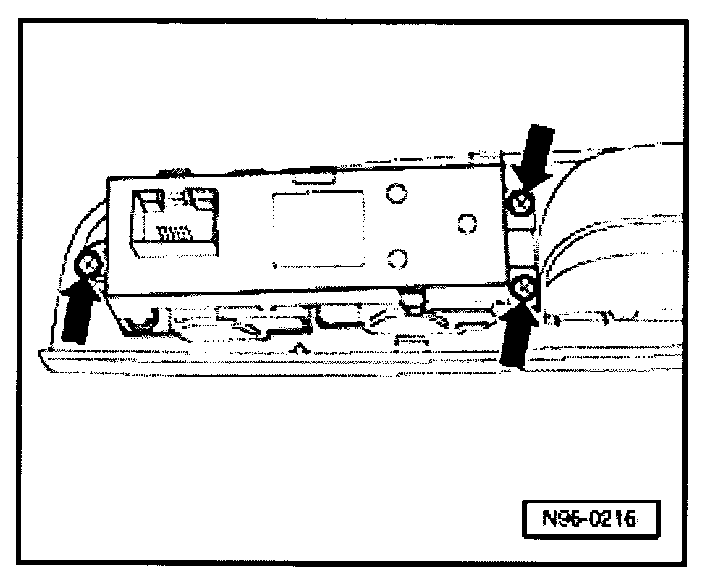

- Remove screws -arrows- and pull switch module from trim.

Installing
- Installation is in reverse order of removal.
