Parking Brake Lever: Service and Repair

Parking brake lever, removing and installing
1. Parking brake lever
- Remove center console first
2. 23 Nm (17 ft. lbs.)
3. Compensator
4. Parking brake cables
5. Parking brake lever trim
- Pull off forward

Removing
- Remove center console extension.

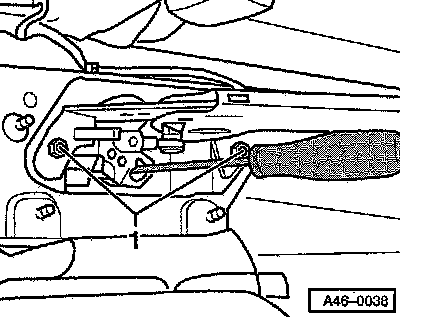

- Remove hex nuts -1-.
- Press parking brake cable inward with screwdriver and remove parking brake lever.

Installing
- Insert parking brake cable into compensator.





- Tighten hex nuts -1- to 25 Nm (18 ft. lbs.).
- Adjust parking brake.
- Install center console extension.
