Batteries For Main Key With Radio-Frequency Remote Control, Removing and Installing

Batteries For Main Key With Radio-frequency Remote Control, Removing And Installing

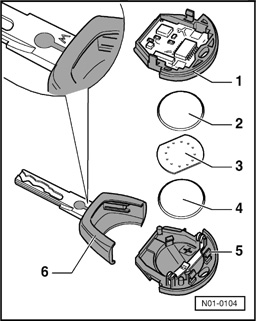

1 - Radio-frequency unit - upper part (folded up)
2 - Transponder battery
3 - Contact plate
4 - Transponder battery
5 - Radio-frequency unit - lower part
6 - Main key with variable code transponder
- In order to distinguish keys with transponder and variable code transponder, main key is identified by an engraved "w".

Removing
- Insert screwdriver in slot between radio-frequency unit - 1 - and main key - 2 -.







- Turn screwdriver in direction of - arrow - and unclip radio-frequency unit from main key.







- Pry apart radio frequency unit at both catches - arrows -.







- Use a screwdriver to unclip upper battery - 1 - out of holders - 2 - in direction of - arrow-.
- contact plate - 1 - has two straight edges. Contact plate can be taken out when these edges are turned in direction of catches.
- Contact plate can also be unclipped using a screwdriver.







- Now unclip lower battery from holder using a screwdriver.

Installing

NOTE: Note polarity and installation position of batteries when installing.

- Place battery - 4 - in transmitter with positive terminal downward (positive terminal is marked in housing).
- Now set contact plate - 3 - onto battery - 4 -.
- Now position battery - 2 - onto contact plate with positive terminal downward and lock.
- Connect transmitter - 1 - to transmitter - 5 - and clip.







- Then engage radio-frequency unit on main key.
