Cruise Control Servo: Adjustments

Positioning element, adjusting

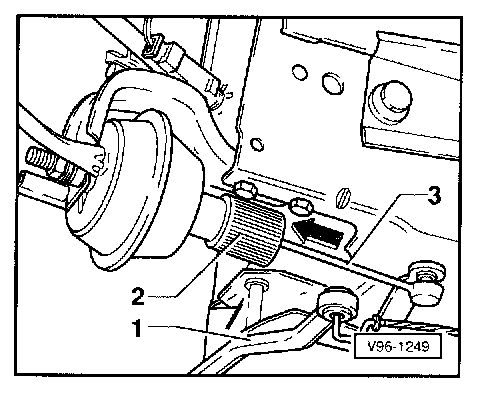

- Hold accelerator pedal -1- in idle position.
- Pull adjusting sleeve -2- together with pull rod -3- indirection of arrow until resistance is felt.
- Lock adjusting sleeve by turning.
- Check accelerator pedal for freedom of movement.
